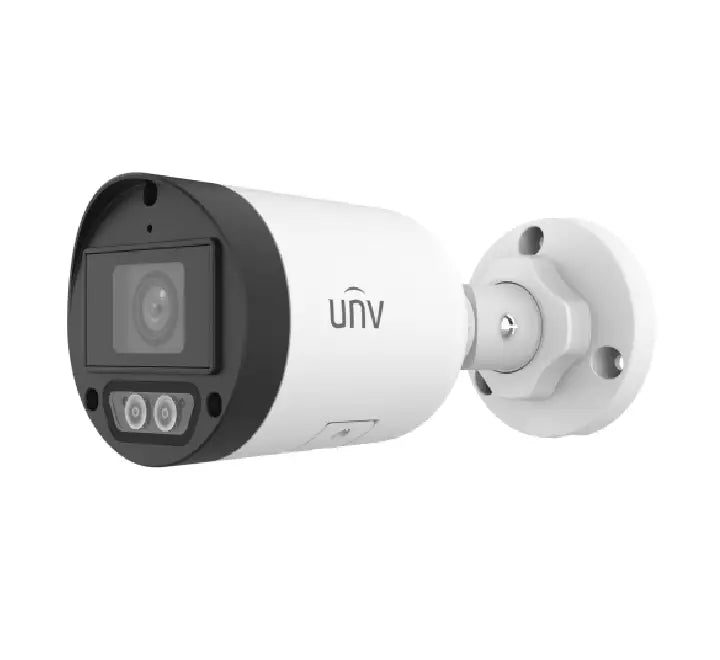

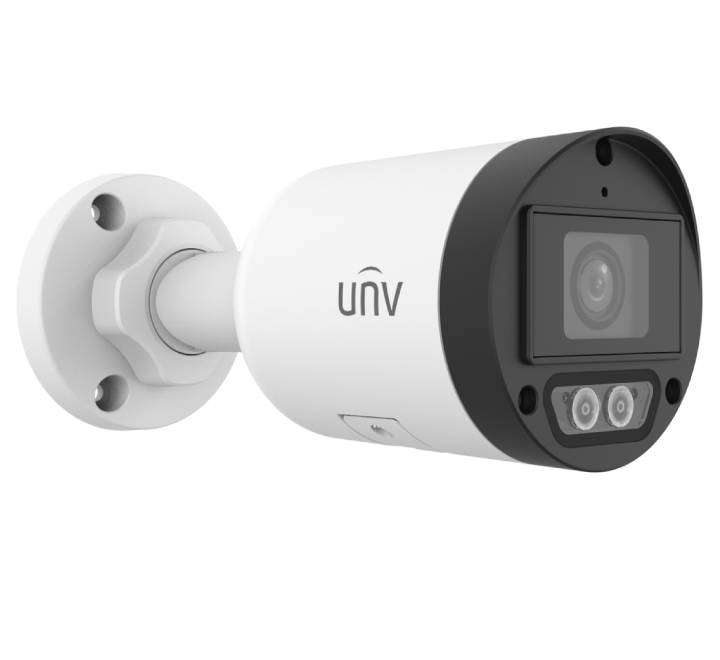

UNV IPC2122LB-AF28K-DL 2MP ColorHunter Fixed Dual Light Bullet Network Camera
Step into intelligent IP-based surveillance with the UNV IPC2122LB-AF28K-DL. Engineered by Uniview as a flagship member of their Easy series, this 2MP Full-HD bullet network camera features a high-grade 1/2.9-inch Progressive Scan CMOS sensor matched to a wide-angle 2.8mm fixed lens. Delivering ultra-smooth 1080p security streaming at a full 30 frames per second, it offers an expansive 101.1-degree horizontal field of view to capture expansive yards, office spaces, and warehouse floors effortlessly.
Operating natively over standard IP structures, this network camera integrates Power over Ethernet (PoE), allowing power and ultra-fast data to travel along a single RJ45 network cable. Backed by state-of-the-art Smart Dual Light technology, it utilizes discrete Infrared (IR) LEDs during peaceful periods and automatically transitions to a powerful warm white light illuminator the second its built-in onboard AI identifies a human body. This guarantees clear, full-color target snapshots when an incident occurs, saving valuable storage space while retaining maximum forensic evidence.
Key Features
- 1080P Full-HD Network Video: Captures high-clarity 2 Megapixel images at up to 30fps for seamless real-time playback.
- Ultra 265 Efficiency: Leverages Uniview's deep data compression technologies (Ultra 265, H.265, and H.264) to drastically cut storage bandwidth usage by up to 75%.
- Smart Dual Light Night Vision: Delivers flexible illuminated observation ranges up to 30 meters (98 feet) in absolute darkness with intelligent color switching.
- Onboard Human Body AI: Minimizes annoying false alarms caused by rain, wind, or small animals by focusing notifications entirely on human threats.
- Integrated Microphone: Features a high-sensitivity internal microphone with echo suppression to overlay crisp audio alongside high-definition video feeds.
- Massive Edge Storage Capacity: Includes an onboard MicroSD/microSDHC/microSDXC expansion slot supporting memory cards up to 512GB for backup storage safety.
- Resilient Structural Build: IP67 dust/waterproof housing combined with a tough 4KV surge suppression shield, ideal for volatile outdoor tracking locations.
Technical Specifications
| Specification | Details |
|---|---|
| Model Code | IPC2122LB-AF28K-DL |
| Image Sensor | 2 Megapixel, 1/2.9" Progressive Scan CMOS |
| Max Native Resolution | 1920 (H) × 1080 (V) @ 30fps |
| Minimum Illumination | Color: 0.005 lux (F1.6, AGC ON) | 0 lux with Light On |
| Lens Configuration | 2.8 mm @ F1.6 fixed focal lens (M12 mount) |
| Field of View (FOV) | Horizontal: 101.1°, Vertical: 55.0°, Diagonal: 111.0° |
| Illumination Array | Dual Light System (850 nm Smart IR and Warm White LEDs) |
| Illumination Distance | Up to 30 meters (98.4 feet) for both IR and Warm White Light |
| Video Compressions | Ultra 265, H.265, H.264 (Baseline, Main, High Profiles) |
| Intelligent Analytics | Human Body Detection, Motion Detection, Audio Detection |
| Audio Hardware | Built-in high-sensitivity mic (G.711U / G.711A streaming) |
| Local Storage Slot | MicroSD Slot, accommodates up to 512 GB cards |
| Network Interface | 1 × RJ45 10M/100M Base-TX Ethernet Port |
| System Integrations | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| Ingress Protection | IP67 Certified Weatherproof & Waterproof |
| Power Options | DC 12V (±25%) or Power over Ethernet (PoE, IEEE 802.3af) |
| Power Consumption | Maximum 4.5 Watts (fully loaded) |
| Physical Form Factor | 162mm × 67mm × 67mm (6.4” × 2.6” × 2.6”) | Metal + Plastic |
| Device Weight | 0.24 kg (0.53 lb) |
