Description

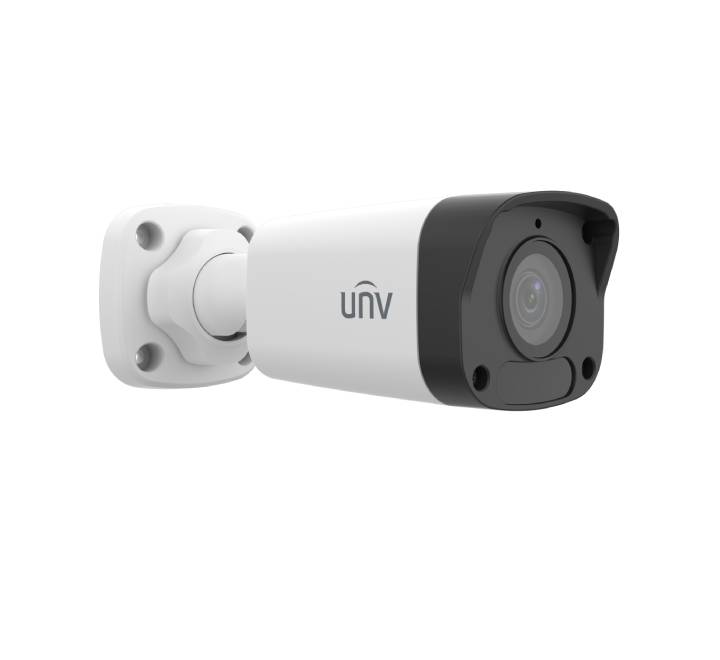

UNV IPC2122LB-AF28-A2 2MP Fixed IR Bullet Network Camera,Audio
- Model: IPC2122LB-AF28-A2
-
Features
- High quality image with 2MP, 1/3.0" CMOS sensor
- 2MP (1920 × 1080)@30/25 fps; 720P (1280 × 720)@30/25 fps
- Support accurate Human Body Detection 2.0
- Ultra H.265, H.265, H.264
- Built in Mic
- Smart IR, up to 30 m (98 ft) IR distance
- Day/night functionality
- 2D/3D DNR (Digital Noise Reduction)
- DC12 V or PoE (IEEE 802.3af) power supply
- IP67 protection
- 3 Axis
- Max Resolution: 2 MP
- Sensor: 1/3.0" CMOS
- Min. Illumination
- Colour:0.01 lux (F2.0, AGC ON)
- 0 lux with IR on
- Day/Night : IR-cut filter with auto switch (ICR)
- Shutter : Auto/Manual, 1 ~ 1/100000s
- Adjustment Angle: Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
- S/N : >52 dB
- WDR : DWDR
- Focal Length: 2.8 mm
- Iris Type : Fixed
- Iris: F2.0
- Field of View (H): 99.5°
- Field of View (V): 56.5°
- Field of View (D): 114.4°
- Lens Type : Fixed
- DORI
- DORI Distance(Lens): 2.8 mm
- DORI Distance(Detect): 46.7m (153.1ft)
- DORI Distance(Observe): 18.7m (61.2ft)
- DORI Distance(Recognize): 9.3m (30.6ft)
- DORI Distance(Identify): 4.7m (15.3ft) Illuminator
- Supplemental Light: IR
- Illumination Distance (IR): 30 m (98.4 ft)
- Wavelength : 850 nm
- IR On/Off Control: Auto/Manual
-
Video
- Video Compression: Ultra 265, H.265, H.264
- H.264 Code Profile Baseline profile, Main profile, High profile
- Frame Rate
- Main Stream: 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
- Sub Stream: 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max
- 30fps
- Video Bit Rate : 128 Kbps to 6144 Kbps
- U-code : Support
- OSD : Up to 4 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Support
- Video Stream : Dual streams
-
- White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white
- balance
- Digital Noise Reduction : 2D/3D DNR
- Smart IR : Support
- Flip : Normal, Flip vertical, Flip horizontal, 180°
- Dewarping : N/A
- HLC : Support
- BLC : Support
- Defog Digital: defog
- Image Stabilization: N/A
Events
- Basic Detection : Human body detection 2.0, Motion detection, Audio detection
- General Function: Watermark, IP address filtering, Access policy, ARP protection,
- RTSP authentication, User authentication, HTTP
- authentication
-
Audio
- Audio Compression : G.711U，G.711A
- Audio Bitrate : 64 Kbps
- Two-way Audio N/A
- Suppression : Support
- Sampling Rate: 8 kHz
- Storage
- Edge Storage : N/A
- Network
Protocols : IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, - DDNS, NTP, UPnP, HTTP, QoS
- Compatible Integration: ONVIF (Profile S, Profile T) ,
- API, SDK
User/Host: Up to 32 users, 2 user levels: administrator and common user
- Security
- Password Protection, Strong Password, Export Operation Logs, Basic and Digest
- Authentication for RTSP,
- Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF
- Client : UNV-Link, UNV-Link Pro, EZStation
- Web Browser : Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
-
Interface
- Audio I/O : N/A
- Alarm I/O : N/A
- Serial Port : N/A
- Built-in Mic Support
- Built-in Speaker N/A
- WIFI : N/A
- Network 1 × RJ45 10 M/100 M Base-TX Ethernet
- Video Output : N/A
- Certification
- EMC
- CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
- FCC (FCC 47 CFR part15 B)
- Safety : CE LVD (EN 62368-1)
- Environment : CE-RoHS (2011/65/EU; (EU) 2015/863) ; WEEE (2012/19/EU)
- Protection : IP67 (IEC 60529)
-
General
- Power DC : 12V±25%, PoE (IEEE 802.3af)
- Power Consumption: Max 3.9 W
- Power Interface: Ø5.5 mm coaxial power plug
- Dimensions : 157.5 × 62.5 × 62.7 mm (6.2” × 2.5” × 2.5”) (L x W x H)
- Weight: 0.19 kg (0.42 lb)
- Material: Graphene + Plastic
- Working Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-
- condensing)
- Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-
- condensing)
- Surge Protection : 4 KV
- Reset Button: N/A
- Web Client Language: 1 Language: English
- Warranty: 2 Years
