Description
Reliable 8-Channel Hybrid Surveillance Solution

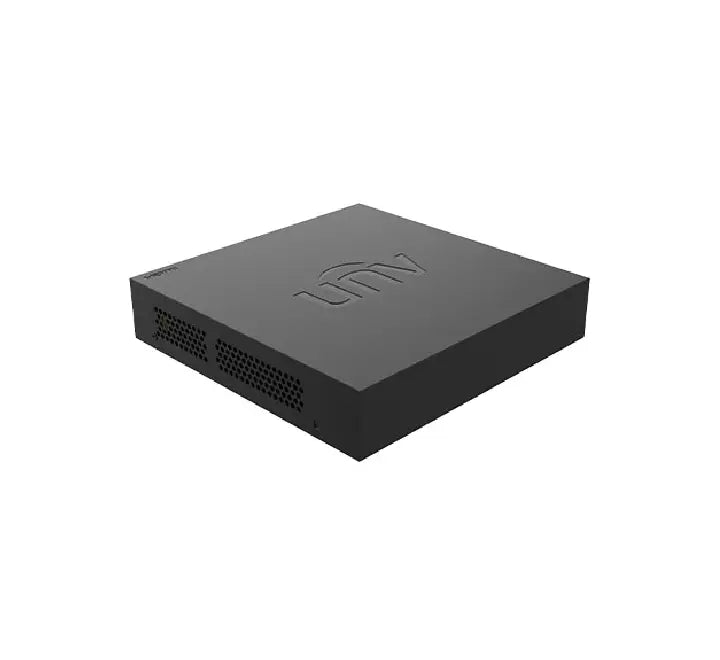

The Uniview XVR301-08F is a highly adaptable, professional-grade 8-channel hybrid Digital Video Recorder (XVR) engineered for seamless home, office, and light commercial security. Designed with cross-compatibility in mind, this 5-in-1 recorder adapts intelligently to multi-format setups, supporting TVI, AHD, CVI, CVBS analog feeds alongside high-definition IP cameras up to 6MP.
Equipped with advanced compression technology and intelligent backend analytics like Ultra Motion Detection (UMD), the UNV XVR301-08F optimizes your storage footprints while providing immediate, reliable motion alerts—ensuring your premises stay guarded 24/7.
Key Features & Benefits
- 5-in-1 Penta-brid Adaptive Access: Adapts natively to TVI, AHD, CVI, CVBS, and IP cameras for painless infrastructure upgrades.
- Expanded IP Camera Support: Features 8 standard BNC inputs plus 2 additional IP channels (expandable up to 10-ch by converting analog lines) with up to 6MP resolution per IP feed.
- Efficient Storage & Codec: Support for H.265 and H.264 video formats helps reduce storage demands and transmission bandwidth by up to 50%.
- Audio over Coaxial Cable: Transmit both high-definition video and crisp audio across a single coaxial run (supported on compatible TVI cameras).
- Ultra Motion Detection (UMD): Smarter filtering options allow you to perform targeted behavior and VCA searches across 8 channels.
- Simultaneous High-Res Video Outputs: HDMI and VGA outputs function simultaneously at resolutions up to 1920×1080p for crystal-clear live view.
- Massive Storage Overhead: Features 1 SATA interface supporting an internal 3.5" hard drive with up to 6TB capacity (HDD sold separately).
Product Demonstration & Unboxing
Technical Specifications
| Specification | Details (XVR301-08F) |
|---|---|
| Analog Video Input | 8-ch, BNC interface |
| IP Video Input | 2-ch (up to 10-ch total upon complete analog conversion), up to 6MP |
| Supported Signal Formats | TVI / AHD / CVI (1080P@30fps, 720P@30fps), CVBS |
| Video Outputs | 1-ch HDMI, 1-ch VGA (Simultaneous up to 1920x1080p/60Hz) |
| Recording Resolution | 1080P Lite / 720P / D1 |
| Main Stream Frame Rate | 1080P Lite @15fps; 720P @15fps |
| Audio Compression & Rate | G.711U (8 kHz sampling rate, 16-bit, 64 Kbps per channel) |
| Network Bandwidth | 24 Mbps Incoming (up to 40 Mbps) / 64 Mbps Outgoing |
| Storage Capacity | 1 SATA Slot, up to 6TB internal 3.5" HDD |
| Hardware Interfaces | 1x RJ45 10M/100M Ethernet port, 2x USB 2.0 (Rear Panel) |
| Smart Functions | 8-ch Ultra Motion Detection (UMD), Behavior Search |
| Power Environment | DC 12V, 1.5A | Max Power Consumption: ≤ 10W (without HDD) |
| Operating Temperature | -10°C to 55°C (14°F to 131°F), Humidity ≤ 90% RH |
| Dimensions & Weight | 190mm × 202mm × 42mm (7.5” × 7.9” × 1.6”) | ≤ 0.6 kg (1.32 lbs) |
| Regulatory Certifications | CE, FCC, UL, RoHS, WEEE |
