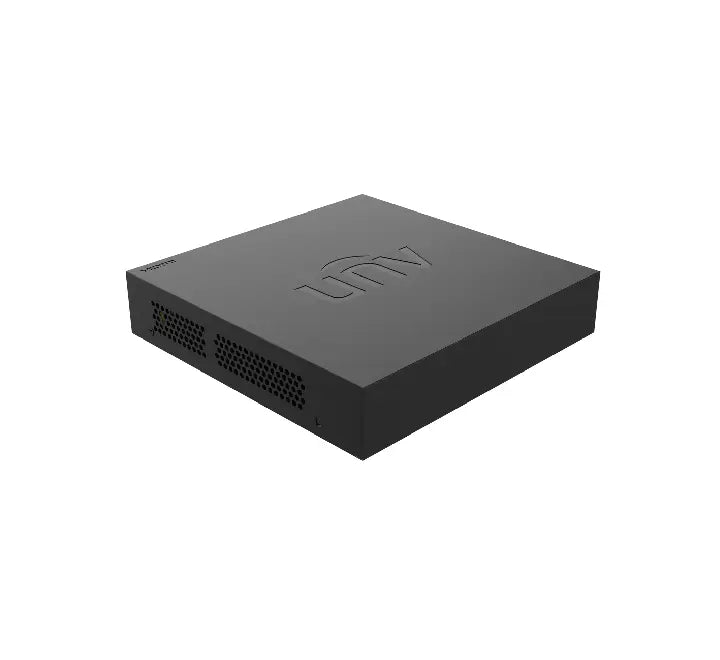

Uniview XVR301-04F 4-Channel 1-SATA 1U Hybrid Digital Video Recorder
The Uniview XVR301-04F is a highly adaptable, 4-channel hybrid video recorder belonging to the dependable Easy Series line. Engineered for universal integration, this 5-in-1 system delivers seamless adaptive access for HD-TVI, AHD, HD-CVI, CVBS, and IP cameras simultaneously. Enhanced by advanced video compression tech and innovative edge capabilities, it represents a cost-effective, high-efficiency backbone for upgrading analog setups or deploying brand new hybrid surveillance architectures.
Key Features
- 5-in-1 Adaptive Access: Autodetects and supports TVI, AHD, CVI, CVBS, and IP camera signals across all 4 BNC channels natively.
- Hybrid Camera Expansion: Includes 2 dedicated IP video input channels, expandable up to 6 total network channels by substituting BNC inputs (each up to 6MP).
- Audio Over Coaxial Cable: Transmits high-fidelity synchronized audio directly over existing coaxial infrastructure (compatible with supporting TVI cameras).
- Ultra Motion Detection (UMD): Supports 4-channel intelligent target processing to filter out environmental noise and accurately spot humans and vehicles.
- High Efficiency Formats: Supports modern H.265 and H.264 video compression codecs to maximize hard drive space and lower stream bandwidth demands.
- Dual Video Outputs: Features independent or simultaneous 1080p Full HD video output across localized HDMI and VGA display monitors.
- Long-Distance Transmission: Maintained signal integrity over extended coaxial layouts without dropping display frames or fidelity.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Analog Video Input | 4 Channels, BNC interface (TVI, AHD, CVI, CVBS adaptive access) |
| IP Video Input | 2 Channels default (Max 6 Channels when replacing analog inputs, up to 6MP per channel) |
| Supported Analog Types | TVI, AHD, CVI: 1080P @ 30fps, 720P @ 30fps | CVBS Standard |
| Recording Resolution | 1080P Lite / 720P / D1 |
| Frame Rate (Main Stream) | 1080P Lite @ 25fps / 720P @ 30fps |
| Video / Audio Formats | H.265, H.264 Video Compression | G.711U Audio Compression |
| Video Outputs | 1-ch HDMI (Up to 1920x1080/60Hz), 1-ch VGA (Up to 1920x1080/60Hz) |
| Smart Function | 4-Channel Ultra Motion Detection (UMD), VCA / Behavior Search |
| Hard Drive Interface | 1 SATA port, supporting up to 6TB storage capacity |
| Bandwidth Capacity | Incoming: 24Mbps (Up to 32Mbps after complete analog swap) | Outgoing: 48Mbps |
| External Connections | 1 RJ45 10M/100M Ethernet port | 2 x USB 2.0 (Rear Panel) |
| Power & Consumption | DC 12V, 1.5A | Max 10W power consumption (excluding hard disk) |
| Dimensions & Weight | 190mm × 202mm × 42mm (7.5” × 7.9” × 1.6”) | ≤ 0.6 kg (1.32 lb) |
