Description
Reliable 1080p Security, Simplified

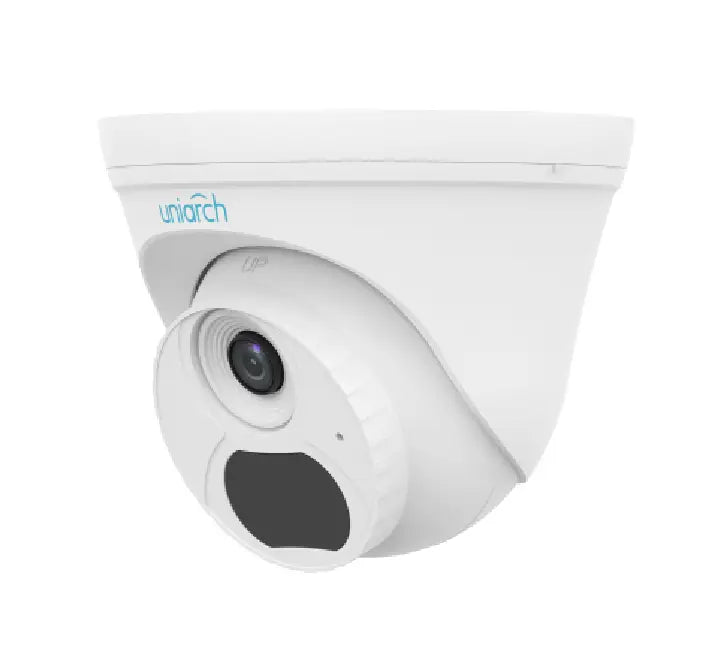

The Uniarch IPC-T132-AF28-ECO is a compact and cost-effective 2MP fixed turret network camera designed for effortless, high-performance surveillance. Engineered by Uniview, this Entry Series IP camera delivers clear 1080p Full HD video resolution at 30 frames per second, ensuring smooth and detailed monitoring for both residential and commercial applications.
Equipped with a wide 2.8mm lens (87.8° horizontal FOV), built-in microphone for audio coverage, and 30m Smart IR night vision, the IPC-T132-AF28-ECO provides complete 24/7 protection. Thanks to Power over Ethernet (PoE) integration and ultra-efficient Ultra 265 compression, setup is fast, efficient, and saves significant bandwidth and storage.
Key Features
- High-Definition 2MP Resolution: Clear 1080P (1920 × 1080) video capture at 30 fps with a 1/3.0" CMOS sensor.
- Wide Angle 2.8mm Fixed Lens: Provides a wide 87.8° horizontal field of view for broad coverage.
- Smart IR Night Vision: Infrared LEDs automatically adjust brightness up to 30 meters (98.4 ft) in complete darkness without overexposing targets.
- Built-in Microphone: Captures clear ambient audio directly alongside your video feeds.
- Ultra 265 Video Compression: Reduces bandwidth and NVR storage usage by up to 75% without compromising video quality.
- Smart Detection 2.0: Supports Human Body Detection, Motion Detection, and Audio Detection to minimize false alarms.
- Power over Ethernet (PoE): Simple single-cable installation supplying both data and power (IEEE 802.3af) with ultra-low max 2.5W consumption.
- Durable All-Weather Design: Wide operating temperature range from -30°C to 60°C (-22°F to 140°F) with 4KV surge protection.
Technical Specifications
| Camera | |
|---|---|
| Model | IPC-T132-AF28-ECO |
| Image Sensor | 1/3.0", 2.0 Megapixel, Progressive Scan CMOS |
| Max. Resolution | 1080P (1920 × 1080) @ 30 fps |
| Minimum Illumination | Colour: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on |
| Shutter Speed | Auto / Manual, 1 to 1/100000 s |
| Day / Night | IR-cut filter with auto switch (ICR) |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360° |
| Wide Dynamic Range | Digital WDR (DWDR) |
| Lens Specs & FOV | |
| Lens Type | 2.8 mm @ F2.0 Fixed Focal Lens |
| Field of View (FOV) | Horizontal: 87.8° | Vertical: 48.9° | Diagonal: 99.0° |
| DORI Distance | Detect: 51.4m | Observe: 20.6m | Recognize: 10.3m | Identify: 5.1m |
| Night Vision | |
| IR Distance | Up to 30 meters (98.4 ft) IR distance |
| IR Control | Auto / Manual (850nm Wavelength) |
| Video & Audio | |
| Video Compression | Ultra 265, H.265, H.264 |
| Digital Noise Reduction | 2D / 3D DNR |
| Audio Feature | Built-in High Sensitivity Microphone (G.711U, G.711A) |
| Smart Functions | Human Body Detection 2.0, Motion Detection, Audio Detection |
| General & Hardware | |
| Network Interface | 1 × RJ45 10M/100M Base-TX Ethernet |
| Power Supply | PoE (IEEE 802.3af), Max 2.5W |
| Dimensions | Ø118 mm × 100 mm (Ø4.6" × 3.9") |
| Weight | 0.19 kg (0.42 lb) |
| Operating Conditions | -30°C to 60°C (-22°F to 140°F), Humidity ≤ 95% RH |
