Description

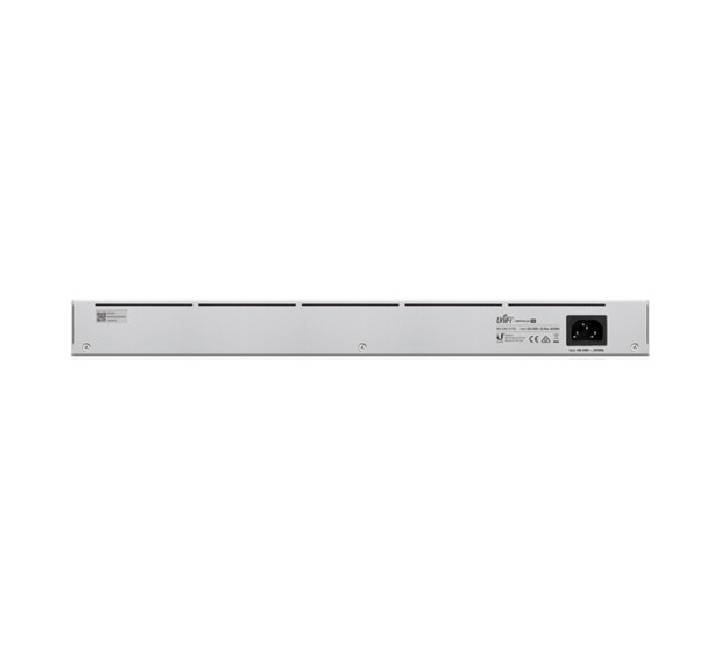

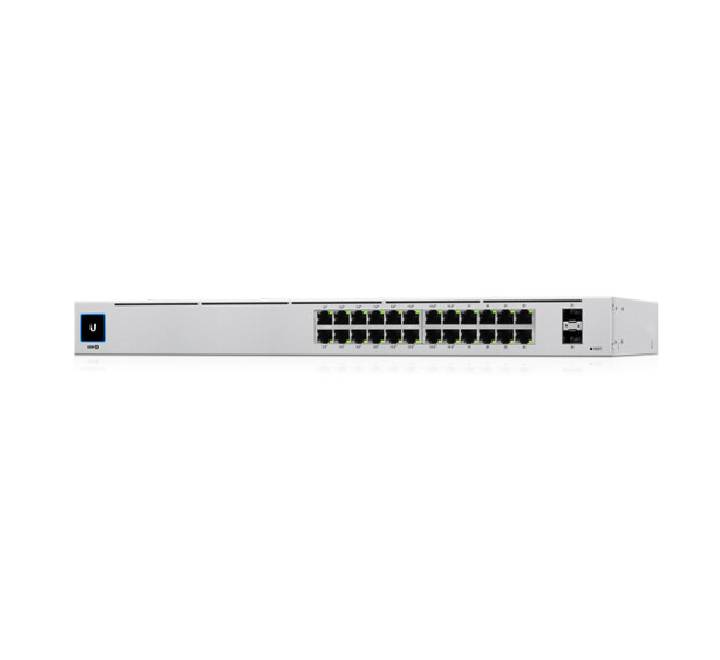

UBIQUITI USW-24 UniFi 24Port Gigabit Switch with SFP
- Brand: UBIQUITI
- Model: USW-24
- Warranty : 1 Year
- Dimensions : 442.4 x 200 x 43.7 mm (17.42 x 7.87 x 1.72")
- Weight: Without Mount: 2.70 kg (5.95 lb)
- With Mount: 2.79 kg (6.15 lb)
- Enclosure: Material SGCC Steel
-
Hardware
- Total Non-Blocking Throughput: 26 Gbps
- Switching Capacity : 52 Gbps
- Forwarding Rate: 38.69 Mpps
- Max. Power Consumption: 25W
- Power Method Universal AC Input: 100-240VAC, 50/60 Hz
- Power Supply : AC/DC, Internal, 36W
- Networking Interfaces: (24) 10/100/1000 Mbps Ethernet RJ45 Ports
(2) 1 Gbps SFP Ports
- ManagementInterface : EthernetIn-Band
- Modes : SMB Layer 2 Gigabit Ethernet Switch
- ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
- Operating Temperature: -5 to 40° C (23 to 104° F)
- Operating Humidity: 10 - 90% Noncondensing
-
LEDs
- System : (1) Bootup Animation: Bootup in Progress
- Firmware Upgrade Icon: Firmware Upgrading
- Steady White: Factory Defaults, Awaiting Adoption
- Steady Blue: Device is Adopted
- Ethernet Green: 1G, Amber: 10/100 Mbps
- SFP Green: 1G
