- PoE Interfaces,Ports 1-16: POE+ IEEE 802.3af/at, (pins 1, 2+; 3, 6-)
- PoE Interfaces,Ports 17-24: 60W PoE++ IEEE 802.3bt, (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8- )
- Interfaces Networking:
(24) 10/100/1000 RJ45 Ports
(2) 1/10G SFP+ Ethernet Ports - Max. PoE Wattage per Port by PSE: 32W
- 802.3at: 64W
- 1.3″ touchscreen display
- Power Method Universal Input: 100-240VAC/50-60 Hz
- Management: Ethernet In-Band
- Operating Temperature: -5 to 40° C (23 to 104° F)
- Operating Humidity: 10 to 90% Noncondensing
- Certifications: CE, FCC, IC
- Dimenson: 442.4 x 285.4 x 43.7 mm
- Weight: 4.3 kg
UniFi Switch Pro 24 PoE is a fully managed Layer 3 switch with (8) 802.3bt (PoE++) and (16) 802.3at (PoE+) Gigabit Ethernet ports. (2) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability. The UniFi Switch Pro 24 PoE features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server.

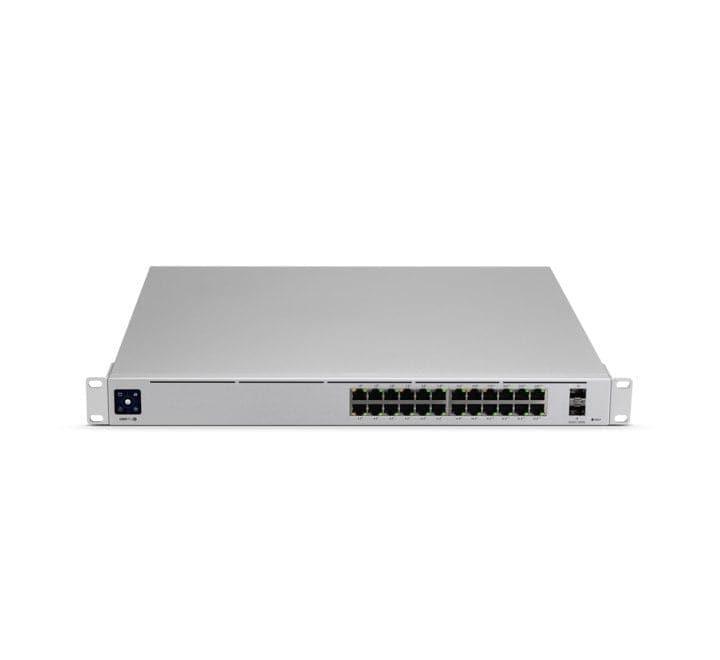

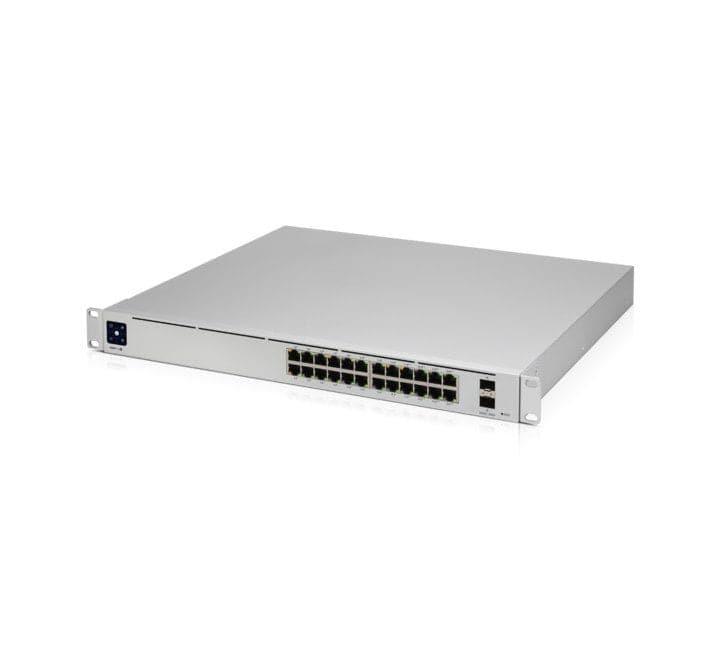

UniFi Switch Pro 24 PoE
The UniFi Switch Pro 24 PoE is the ideal access layer switch for any UniFi solution it combines up to 400W of near-silent PoE power with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
