Description

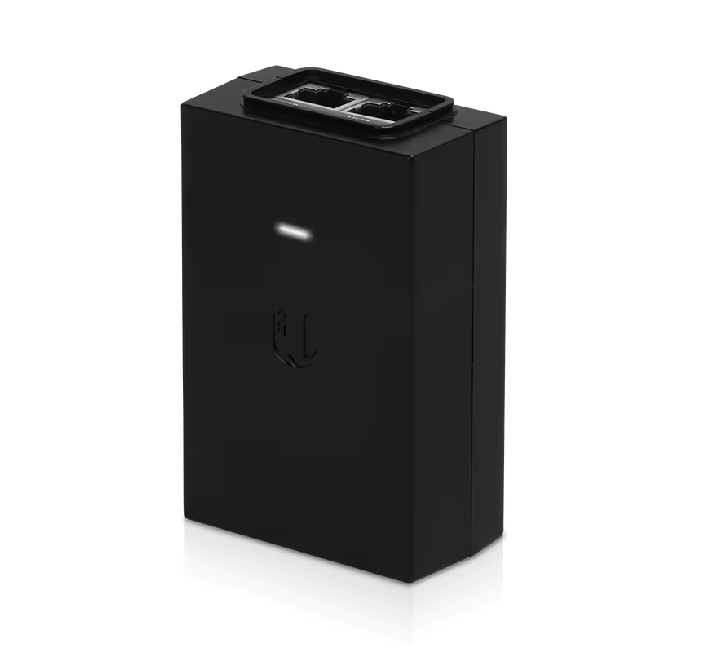

Ubiquiti 48V DC PoE Adapters
- Dimensions:92 x 60 x 33 mm (3.6 x 2.4 x 1.3")
- Weight:159 g (5.6 oz)
- Output voltage:48V DC @ 0.5A
- LAN activity indicator:No
- Gigabit LAN port:Yes
- Remote reset capability:No
- Reset button:No
- Rated voltage:100-240V AC @ 50/60Hz
- Input current:0.6A @ 120V AC, 0.4A @ 240V AC
- Inrush current:<65A Peak @ 120V AC, <130A peak @ 230V AC
- Efficiency:80+%
- Output ripple:1% Max.
- Switching frequency:65 kHz
- Line regulation ≤:3%
- Load regulation ≤:5%
- 2-pair powering Pins 4, 5 (+) and Pins 7, 8 (-)
- 4-pair powering –
- Storage temperature:-30 to 70°C (-22 to 158° F)
- Ambient operating temperature:0 to 40° C (32 to 104° F)
- Ambient operating humidity:35 to 95% noncondensing
- AC connector:IEC-320 C6
- Data IN / PoE:RJ45 shielded socket
- Surge protection:Difference and common mode
- Clamping protection:11V data, 60V power
- Max. surge discharge:1500A (8/20 μs) power
- Peak pulse current:36A (10/1000 μs) data
- Shunt capacitance:<5 pF data
- Response time:<1 ns
- Certifications:CE, FCC, IC, UL
