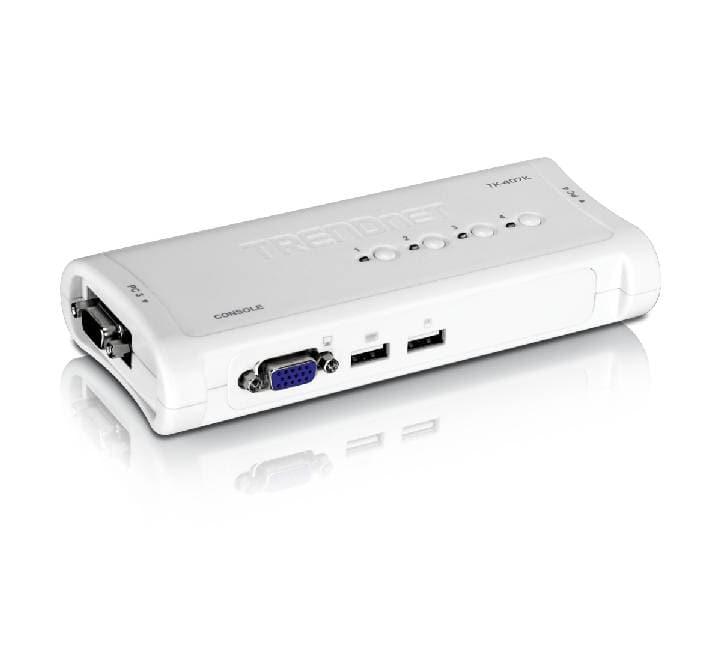

The TRENDnet TK-407K is a highly efficient 4-Port USB KVM Switch designed to streamline your workstation by allowing you to control four computers using a single keyboard, monitor, and mouse set. Outfitted with USB and VGA interfaces, this all-in-one management hardware eliminates the clutter of multiple peripheral setups, making it an excellent utility for multi-server management, tech support testing benches, and advanced office workstations.
Engineered for maximum user convenience, the TK-407K comes completely bundled with four sets of dedicated KVM combination cables, saving you extra hardware expenses and allowing for instant deployment straight out of the box. Its unmanaged plug-and-play architecture requires zero software installation or driver configurations. Switching between computer connections is completely effortless thanks to responsive, localized one-touch hotkey commands or the built-in front panel toggle buttons.
Key Features
- 4-Way Workspace Consolidation: Seamlessly control up to four independent PC or Mac computers from one centralized USB keyboard, USB mouse, and VGA monitor setup.

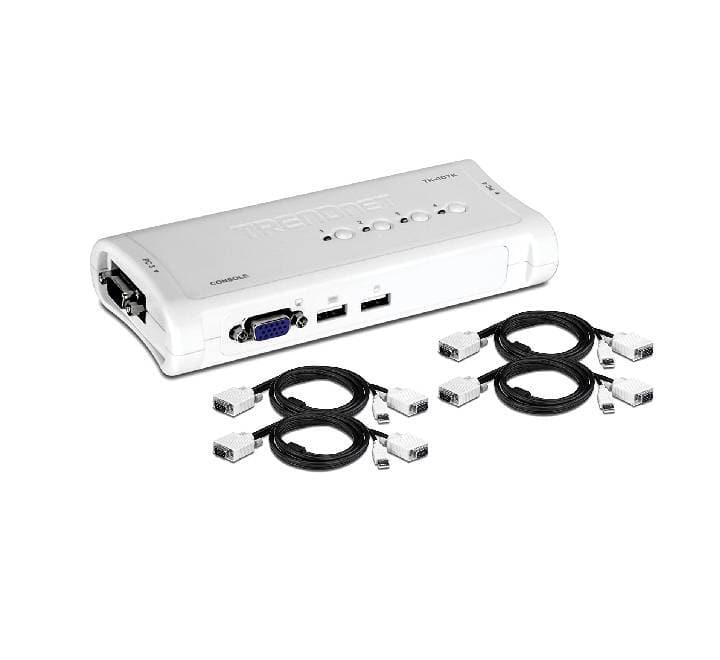

- Cables Included: Complete retail package includes 4 sets of specialized 1.2m (4ft.) USB/VGA multi-core KVM combo cables for neat, efficient physical routing.
- Dual-Switching Controls: Instantly toggle between connected processing terminals using front-panel push buttons or automated keyboard hotkey commands.
- High-Resolution Capabilities: Supports crystal-clear analog display configurations with VGA video resolutions up to 2048 x 1536 for sharp images.
- Auto-Scan Monitoring: Integrated diagnostic scan utility systematically tracks and cycles view ports across active devices at adjustable 10 to 60-second intervals.
- Bus-Powered Reliability: Fully operational on standard host USB bus power structures, completely removing the clutter of external AC wall bricks.
- Hot-Pluggable Integration: Safely connect or remove hardware components from the hub arrays without needing to power down the KVM switch or host computers.
Technical Specifications
| Attribute | Specification Details |
|---|---|
| Console Connections | 1 x VGA (15-pin Female D-Sub) 2 x USB Type-A (Keyboard & Mouse Peripheral Interfaces) |
| Computer Ports | 4 x VGA (15-pin Female D-Sub proprietary combo interfaces) |
| Included Cable Bundles | 4 x KVM Combo Cables (2 x 1.2m/4ft. and 2 x 1.8m/6ft. customized connectors) |
| Video Resolution | Max resolution up to 2048 x 1536 @ 60Hz architectures |
| Port Selection Layout | Manual Push Buttons Keyboard Hotkey Commands |
| Power Specifications | Power Source: Fully Host USB Bus Powered (No external wall adapter required) Max Draw: 500mA operational limit |
| Chassis & LED Indication | Chassis Material: Lightweight structural composite casing LEDs: 4 x Port Status indicators (Green/Red terminal links) |
| Operating Environment | Operating Temp: 0° to 40°C (32° to 104°F) Storage Temp: -20° to 60°C (-4° to 140°F) Humidity: Max 90% non-condensing tracking |
| Dimensions & Weight | 167 x 80 x 28 mm (6.6 x 3.2 x 1.1 in.) 159 g (5.6 oz.) |
| Compliance & Certs | CE, FCC |
