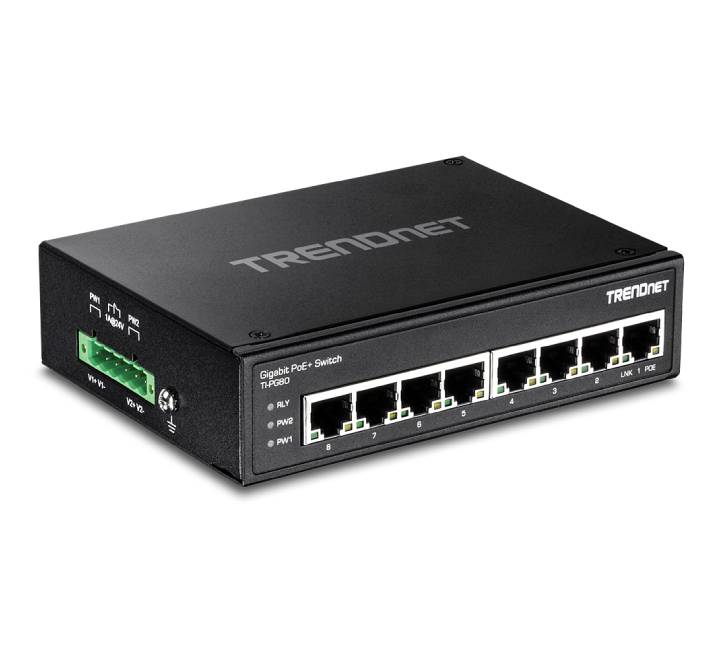

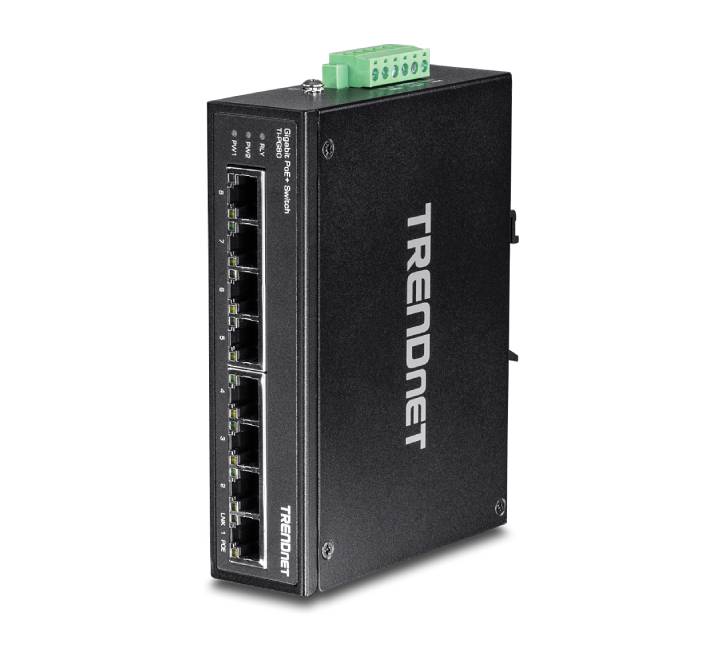

Trendnet 8-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch (TI-PG80)

Trendnet 8-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch (TI-PG80)

• Brand: TRENDnet
• Model: TI-PG80
• 8 x Gigabit PoE+ Ethernet ports
• Up to a 200 Watt full PoE+ power budget
• 16 Gbps switching capacity
• Hardened IP30 rated metal switch
• Includes DIN-rail and wall mounts
• Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
• Redundant power inputs with overload current protection
• Alarm output triggered by power failure
• Powers supply sold separately (Model TI-S24048)
• Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.3af PoE
  • IEEE 802.3at PoE+
• Device Interface
  • 8 x Gigabit PoE+ ports
  • 6-pin removable terminal block
  • LED indicators
  • DIN-Rail mount
  • Wall mount
  • Grounding point
• Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000 Mbps (full duplex)
• Performance
  • Data RAM Buffer: 1024 KB
  • Switching Fabric: 16 Gbps
  • MAC Address Table: 8 K entries
  • Jumbo Frame: 9 KB
  • Forwarding rate: 11.9 Mpps (64-byte packet size)
• Special Features
  • Hardened components rated for extreme temperatures
  • Redundant power inputs
  • Auto-Negotiation
  • Auto store and forward architecture
  • Automatic address learning and address aging
  • ESD 8 KV and Surge 6 KV protection
• Power
  • Input: 48 - 56 V DC
  • Compatible power supply: TI-S24048 (sold separately)
  • Consumption: Max. 5.76 Watts (without PD)
• Alarm Relay Contact
  • Relay outputs with current carrying capacity of 1 A, 24 V DC
  • Open circuit mode when two power sources are connected
  • Short circuit mode when only one power source is connected
• Power Consumption
  • Max. 5.76 Watts (without PoE)
• MTBF
  • 510,304 hours

OVERVIEW

Full PoE+ Power Budget

Supplies up to 30 Watts of PoE/PoE+ power per port (802.3at/802.3af) with an up to 200 Watt PoE power budget

Network Ports

8 x Gigabit PoE+ Ethernet ports

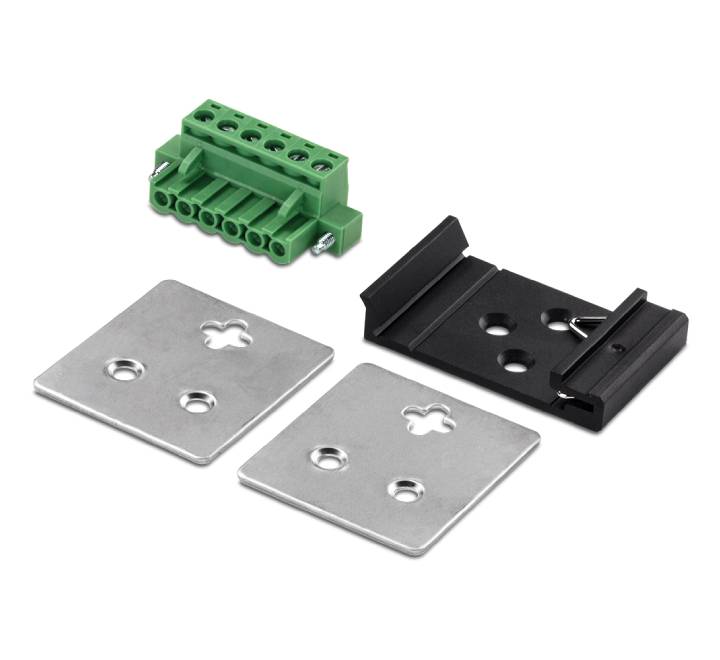

DIN-Rail/Wall Mounts

IP30 rated metal enclosure with included DIN-rail and wall mount hardware

Switching Capacity

16 Gbps switching capacity

Redundant Power

Redundant power inputs with overload current protection (power supply sold separately: model TI-S24048)

Alarm Output

Alarm output triggered by power failure of primary and/or redundant power

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance

Extreme Temperatures

Hardened switch is rated for an operating temperature range of -40 to 75 ºC (-40 to 167 ºF)

Electro Magnetic Compliance

Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards

Certifications

Rated for information technology (ITE) equipment (EN55022/24) and industrial, scientific, and medical (ISM) Equipment (EN55011)

Shock and Vibration Resistant

Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)

Grounding Point

Grounding point protects equipment from external electrical surges
