Trendnet 8-Port Gigabit Web Smart Switch (TEG-082WS)

• 8 x Gigabit ports
• 2 x shared SFP slots
• 16 Gbps switching capacity
• Built-in power supply
• Advanced Web Smart management
• Fanless design reduces energy consumption and operating noise
• Rackmount brackets included

• Standards
• IEEE 802.1D
• IEEE 802.1Q
• IEEE 802.1S
• IEEE 802.1X
• IEEE 802.1p
• IEEE 802.1w
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x
• IEEE 802.3z
• IEEE 802.1ab
• IEEE 802.3ab
• IEEE 802.3ad
• IEEE 802.3az
• Device Interface

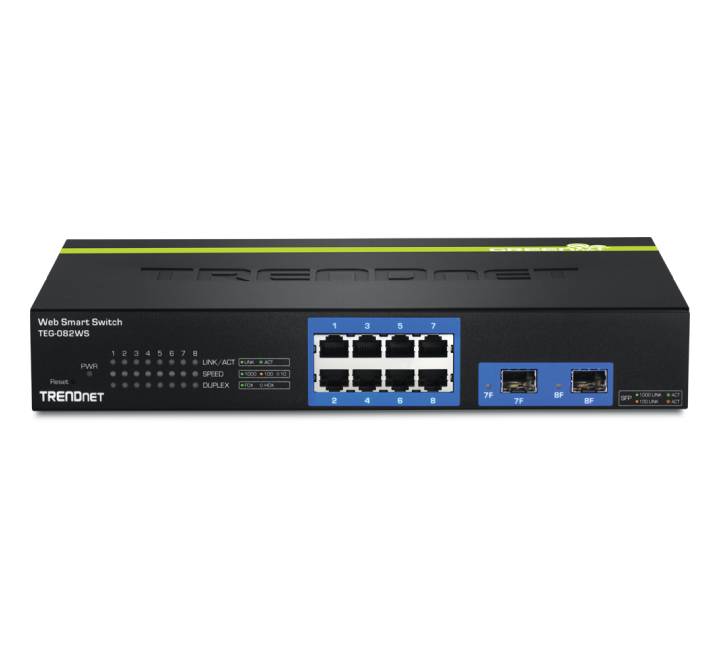

• 8 x Gigabit ports (ports 1-8)
• 2 x Shared SFP slots (shared with ports 7 - 8)
• LED indicators
• Data Transfer Rate
• Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
• Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
• Gigabit Ethernet: 2000 Mbps (full duplex)
• Performance
• Switch fabric: 16 Gbps
• RAM buffer: 1 MB
• MAC Address Table: 16K entries
• Jumbo Frames: 10 KB
• HOL Blocking Prevention
• Forwarding rates: 11.9 Mpps (64-byte packet size)
• Management
• HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
• SNMP v1, v2c, v3
• RMON v1
• Static Unicast MAC Address
• Enable/disable 802.3az Power Saving
• LLDP
• Virtual Cable Test
• IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
• MIB
• MIB II RFC 1213
• Bridge MIB RFC 1493
• Bridge MIB Extension RFC 2674
• SNMPv2 MIB RFC 1907
• Ethernet Interface MIB RFC 1643
• Ethernet –like MIB RFC 2863
• Interface Group MIB RFC2233
• MIB Traps Convention RFC 1215
• RMON MIB RFC 1757, RFC 2819
• 802.1p MIB RFC 2674
• RADIUS Client Authentication MIB RFC 2618
• LLDP-MIB IEEE 802.1ab
• Ping MIB RFC 2925, RFC 4560
• Spanning Tree
• IEEE 802.1D STP (Spanning Tree protocol)
• IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
• IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
• Link Aggregation
• Static Link Aggregation
• 802.3ad Dynamic LACP
• Access Control
• 802.1X Port-Based Network Access Control, RADIUS, TACACS+
• Local Dial In User Authentication
• DHCP Snooping (per VLAN)
• Loopback Detection
• Duplicated Address Detection
• Trusted Host
• Denial of Service (DoS)
• Special Features
• Fanless design
• IPv6
• 802.3az power saving
• Rack mountable
• Power

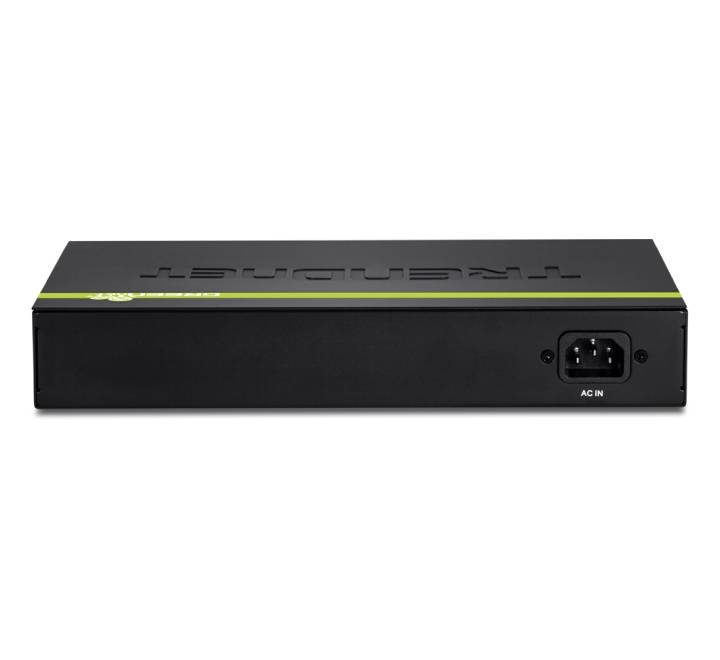

• Input: 100 - 240 V AC, 50/60 Hz, internal power supply
• Consumption: 13.8 Watts (Max.)
• MTBF
• 1,054,337 hours
• Dimensions
• 280 x 180 x 44 mm (11 x 7.1 x 1.7 in.)
• Rack mountable 1U height

OVERVIEW

Hardware Design

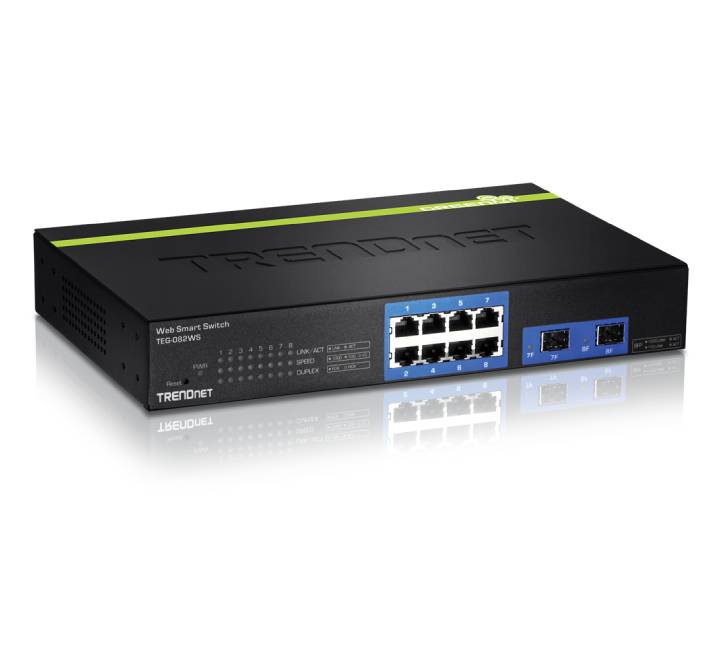

Provides 8 x Gigabit ports, 2 x shared SFP slots, a 16 Gbps switching capacity, a built-in power supply, and rackmount brackets.

Fanless

Fanless design reduces energy consumption and operating noise.

IPv6 Ready

This switch supports IPv6 configuration and IPv6 neighbor discovery.

Traffic Management

A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, Private VLAN, Bandwidth Controls, GVRP, IGMP v1-v3, 802.1p Class of Service (CoS), Spanning Tree (STP, RSTP, and MSTP), and QoS queue scheduling.

Troubleshooting

Real time traffic comparison charts, error group charts, and a convenient cable diagnostic test aid in rapid troubleshooting.

Access Controls

Features such as ACL, SSL, MAC/port filtering, Denial of Service controls, 802.1X, TACACS+, and RADIUS are compatible with layered network access controls.

Monitoring

RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions.
