Description

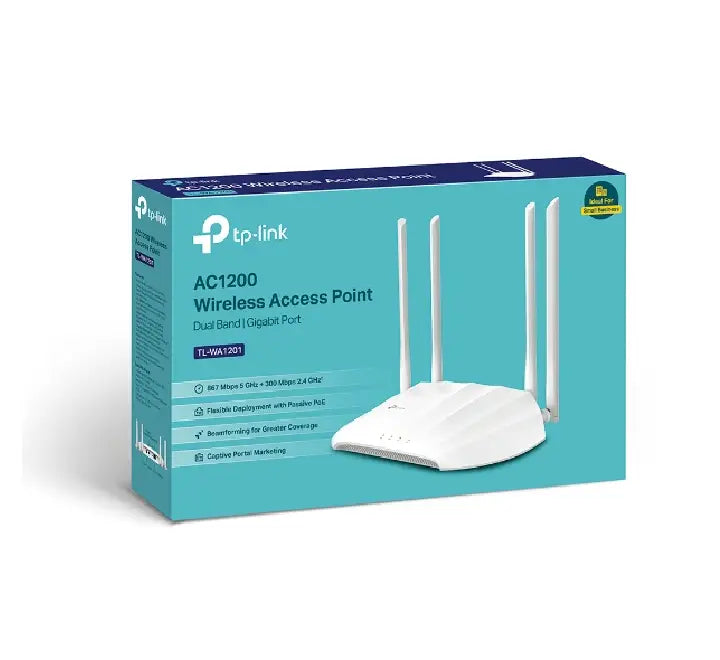

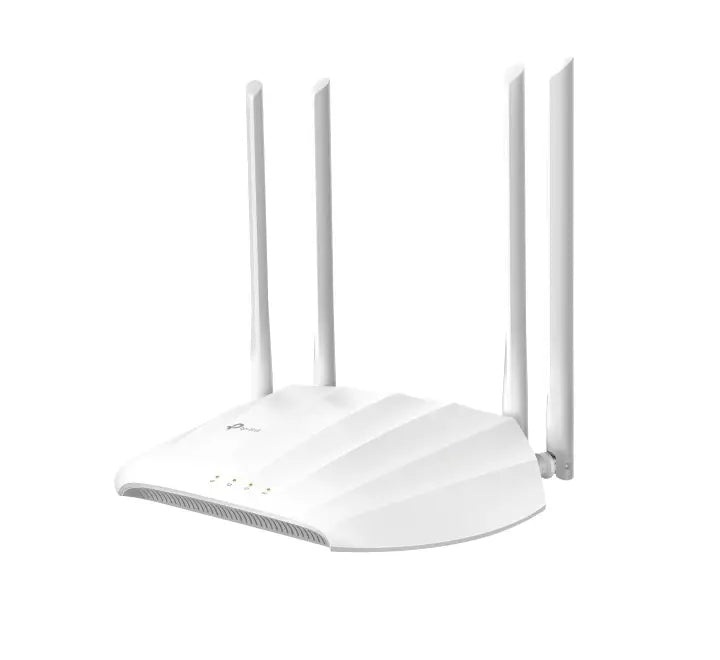

Upgrade your home or office network with the TP-Link TL-WA1201 AC1200 Wireless Gigabit Access Point. Built with advanced 802.11ac Wave 2 technology, this desktop access point delivers lightning-fast dual-band Wi-Fi speeds up to 1200 Mbps. It's the perfect solution to eliminate dead zones, handle dense device traffic, and transform a slow or wired network into a highly efficient wireless environment.
Key Features
- Lightning-Fast AC1200 Dual-Band Wi-Fi: Enjoy seamless streaming, gaming, and downloading with speeds up to 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band.
- MU-MIMO Technology: Simultanously transfers data to multiple devices for 2× faster performance, preventing lag and network congestion.
- Boosted Wi-Fi Coverage: Equipped with four external high-performance antennas and Beamforming technology to focus signal strength directly toward your devices.
- Gigabit-Class Wired Performance: A built-in Gigabit Ethernet port provides ultra-fast wired connections for desktop PCs, smart TVs, and gaming consoles.
- Passive PoE Support: Conveniently receive power and data through a single Ethernet cable up to 100 feet away using the included PoE Injector—perfect for flexible deployment.
- Multi-Mode Flexibility: Supports Access Point, Range Extender, Client, and Multi-SSID modes to easily adapt to any networking requirement.
- Captive Portal Marketing: Offers a designed portal page for enhanced network security and localized guest business marketing.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TL-WA1201 |
| Wireless Standards | IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
| Signal Rate | 867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz |

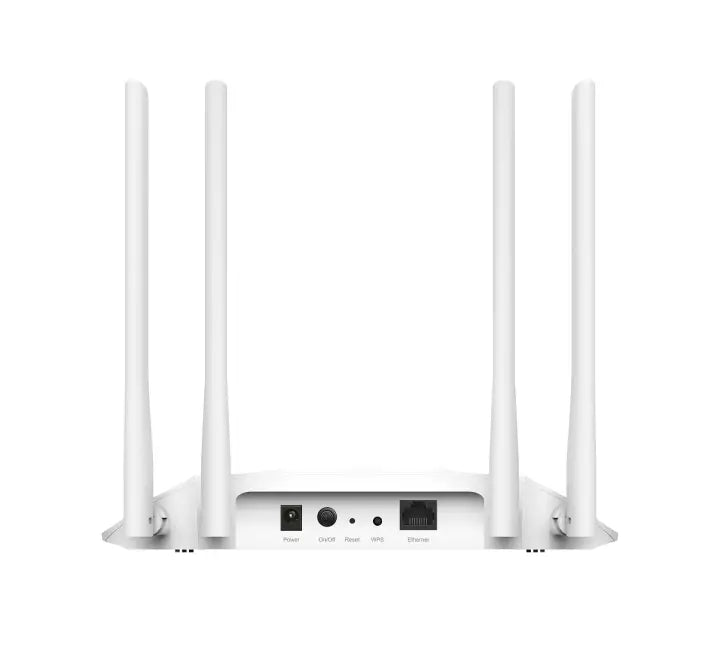

| Hardware Interface | 1× 10/100/1000 Mbps Ethernet Port (Supports Passive PoE) |
| Antenna Type | 4 Fixed High-Performance Antennas |
| Wireless Modes | Access Point, Range Extender, Client, Multi-SSID |
| Wireless Security | WPA3, WPA/WPA2, WPA-PSK/WPA2-PSK Encrpytions |
| Power Supply | 12V / 1.5A (Passive PoE Injector Included) |
| Dimensions (W x D x H) | 8.9 × 5.7 × 1.5 in (225 × 145.5 × 37 mm) |
Product Video Overview
See how easy it is to deploy and make the most out of your TP-Link AC1200 Access Point:
