Professional 24-Port PoE+ Switch for Seamless Surveillance

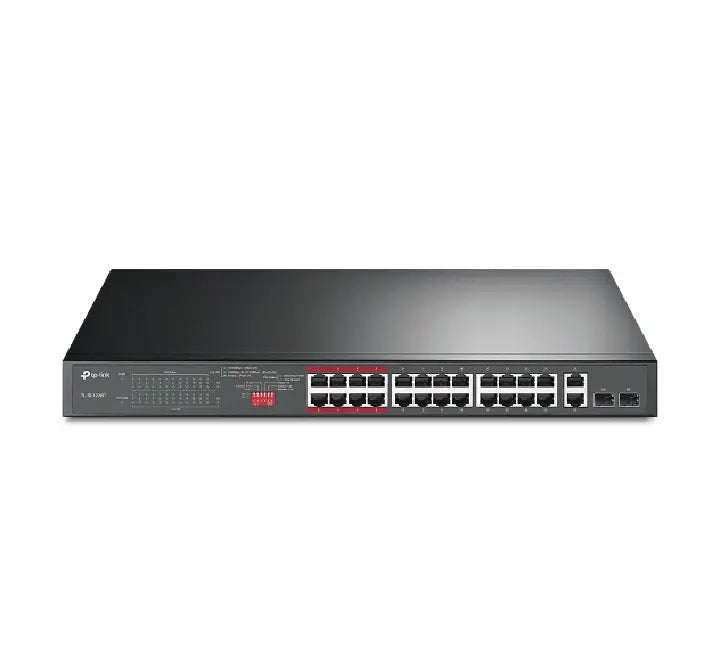

The TP-Link TL-SL1226P is a high-performance unmanaged switch designed specifically for small to medium business networks and IP surveillance systems. Featuring 24× 10/100 Mbps PoE+ ports, it allows you to power and connect cameras, access points, and IP phones through a single cable, reducing installation complexity and costs.
Equipped with 2× Gigabit RJ45 ports and 2× Gigabit SFP slots, the TL-SL1226P ensures high-speed uplink connectivity to your core network or NVR. With a total PoE power budget of 250W and advanced features like Extend Mode and Isolation Mode, this switch provides the reliability and security your business demands.
Key Features

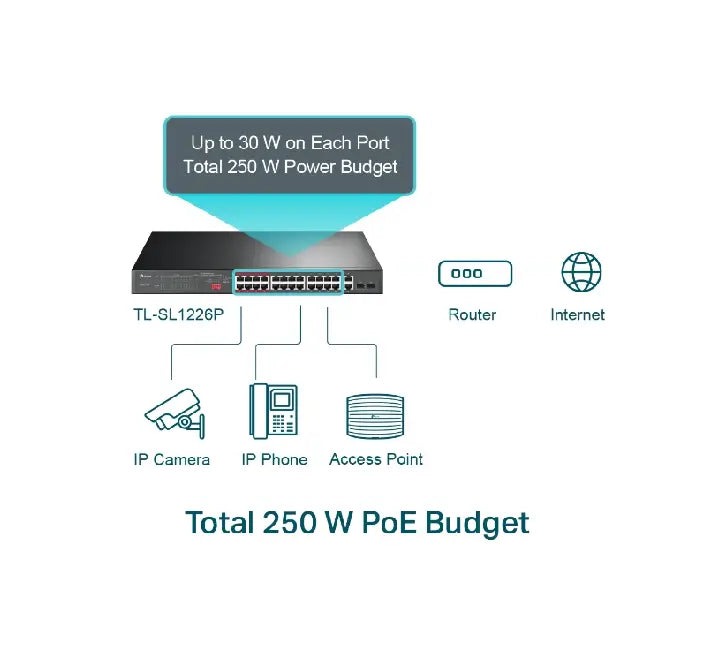

- 250W PoE Budget: 24× 802.3at/af-compliant PoE+ ports supporting up to 30W per port.
- Long-Range Transmission: Up to 250m data and power transmission under Extend Mode—ideal for large-scale IP camera deployment.
- Priority Mode: Ensures high priority for ports 1–8 to guarantee the quality of sensitive applications like video monitoring.
- One-Click Isolation: Easily divide traffic for ports 1–24 with Isolation Mode to avoid sniffing and tampering, enhancing network security.
- Gigabit Uplink: 2× Gigabit RJ45 ports and 2× combo Gigabit SFP slots provide fast, non-blocking connections for uplinks.
- Plug and Play: No configuration required. Auto MDI/MDIX eliminates the need for crossover cables.
Technical Specifications
| Interface | 24× PoE+ 10/100 Mbps RJ45 Ports 2× 10/100/1000 Mbps RJ45 Ports 2× Combo Gigabit SFP Slots |
| PoE Standard | 802.3af/at compliant |
| PoE Budget | 250 Watts |
| Switching Capacity | 8.8 Gbps |
| Forwarding Rate | 6.5472 Mpps |
| Advanced Functions | Extend Mode (250m), Priority Mode, Isolation Mode, PoE Auto Recovery |
| Fan Quantity | 2 Fans |
| Mounting | Rack Mountable (Kit included) |
| Dimensions | 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in) |
