TP-Link TL-SG3428 JetStream 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots
Upgrade your enterprise or SMB network infrastructure with the high-performance TP-Link TL-SG3428 JetStream Managed Switch. Equipped with 24 full Gigabit RJ45 Ethernet ports and 4 high-speed SFP slots for fiber uplinks, this rackmountable Layer 2+ switch delivers massive bandwidth, reliable data transmission, and flexible connectivity for growing business networks.
Seamlessly integrated into the Omada Software Defined Networking (SDN) ecosystem, the TL-SG3428 supports centralized cloud management, zero-touch provisioning, and remote control via the Omada app. Featuring advanced L2+ functions such as Static Routing, 802.1Q VLAN, IGMP Snooping, and robust enterprise-grade security protocols, it provides maximum network stability and traffic efficiency.
Key Features
- Full Gigabit Connections: 24× Gigabit RJ45 ports provide ultra-fast speeds for servers, workstations, and IP surveillance cameras.

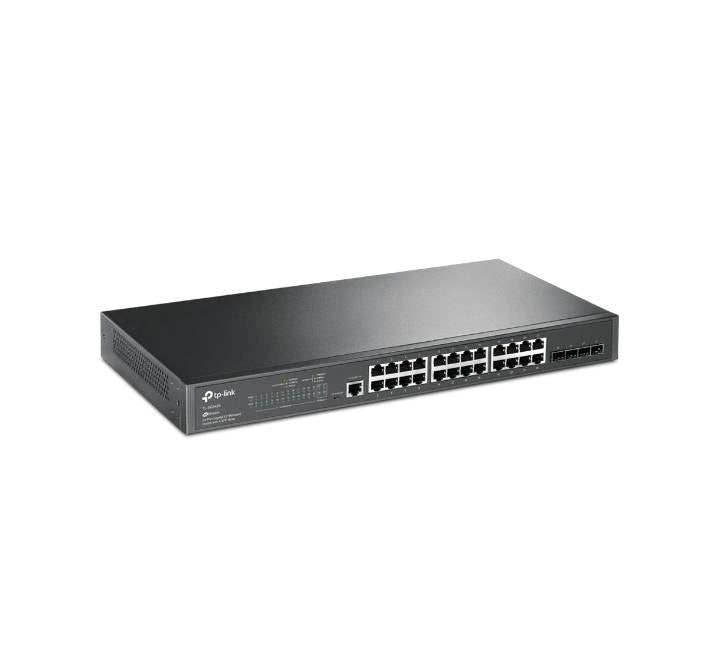

- 4× Gigabit SFP Fiber Uplinks: Dedicated SFP slots allow long-distance, high-bandwidth fiber connections to core switches or network backbones.
- Centralized Cloud Management: Integrated into Omada SDN for zero-touch provisioning, cloud portal management, and real-time monitoring via the web or Omada app.
- Advanced L2+ Features: Supports Static Routing, L2/L3/L4 QoS, 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, and Link Aggregation Control Protocol (LACP).
- Enterprise-Grade Security Strategies: Protects network traffic using IP-MAC-Port Binding, ACL (Access Control Lists), Port Security, DoS Defend, Storm Control, and 802.1X Authentication.
- Optimized Voice & Video Traffic: L2/L3/L4 QoS and IGMP Snooping optimize voice (VoIP) and video streams to eliminate lag and network congestion.
- Standalone Management Options: Manage via Web UI, CLI (Console Port, Telnet, SSH), SNMP (v1/v2c/v3), and RMON.
Technical Specifications
| Category | Specification |
|---|---|
| Model Name | TL-SG3428 |
| Product Series | TP-Link JetStream / Omada SDN |
| Interface Ports | 24× 10/100/1000 Mbps RJ45 Ports, 4× Gigabit SFP Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.66 Mpps |
| MAC Address Table | 8K Entries |
| Packet Buffer Memory | 4.1 Mbit |
| Layer 2+ Features | Static Routing, 802.1Q VLAN, Port Isolation, STP/RSTP/MSTP, Link Aggregation, IGMP Snooping |
| Quality of Service (QoS) | 8 Priority Queues, 802.1p CoS/DSCP Priority, Strict Priority (SP), Weighted Round Robin (WRR) |
| Centralized Management | Omada Hardware Controller, Omada Software Controller, Omada Cloud-Based Controller |
| Power Supply | 100-240V AC, 50/60Hz Internal Power Supply |
| Form Factor | 19-inch 1U Rackmountable Steel Casing |
