Description

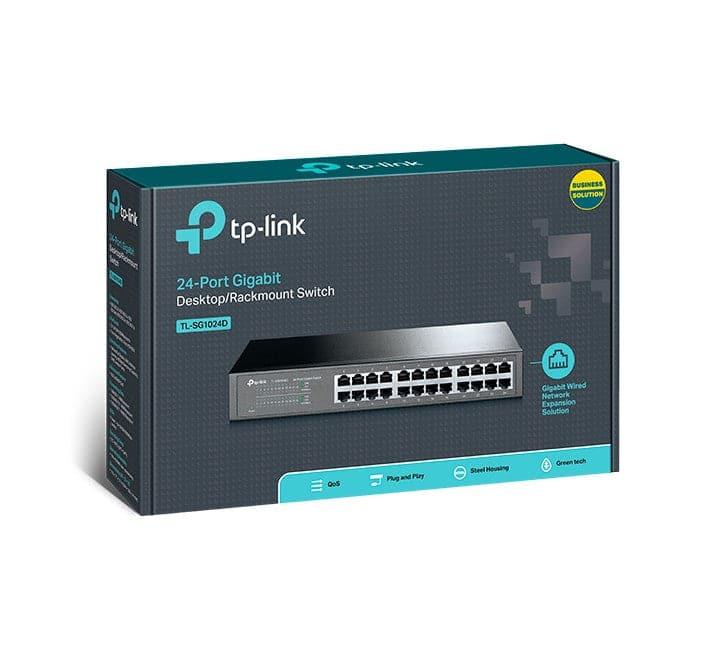

TP-Link TL-SG1024D 24-Port Gigabit Desktop/Rackmount Switch
Expand your network bandwidth and accelerate file transfers across your home office or business environment with the TP-Link TL-SG1024D 24-Port Gigabit Switch. Featuring 24 high-speed 10/100/1000Mbps ports, this unmanaged switch allows instant transferring of bandwidth-intensive graphics, CGI, CAD, and multimedia files without any complex setup.
Equipped with innovative energy-efficient technology, the TL-SG1024D automatically adjusts power consumption based on link status and cable length, helping lower your network’s overall carbon footprint. Its flexible desktop or 13-inch rackmount steel design combined with fanless quiet operation makes it a reliable choice for any workspace.
Key Features
- 24 Full Gigabit Ports: High-speed 10/100/1000Mbps RJ45 ports drastically increase your network capacity for seamless heavy data sharing.
- Plug and Play: Instant deployment with auto MDI/MDIX (no crossover cables needed) and auto-negotiation on every port.
- Energy-Efficient Design: Green Ethernet technology reduces power consumption by powering down idle ports and optimizing output per cable length.
- Silent Operation: Fanless architecture ensures quiet performance, perfect for noise-sensitive office environments.
- Flexible Mounting: Includes standard 13-inch rackmount brackets and rubber feet for desktop placement.
- Advanced Network Features: Built-in hardware switch modes including Isolation Mode (Ports 1–22) and Loop Prevention (Ports 1–24).
Technical Specifications
| Hardware Features | |
|---|---|
| Model | TL-SG1024D |
| Standards & Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |

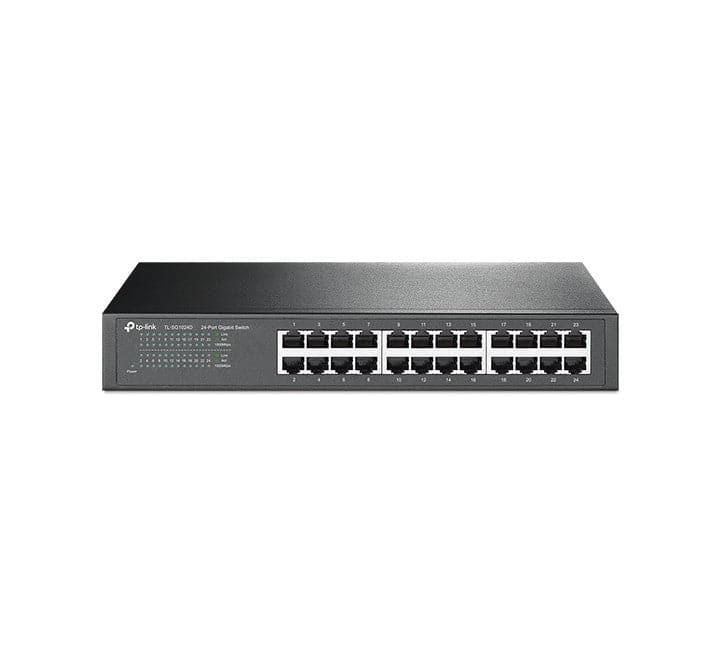

| Interfaces | 24× 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Fan Count | Fanless (Silent) |

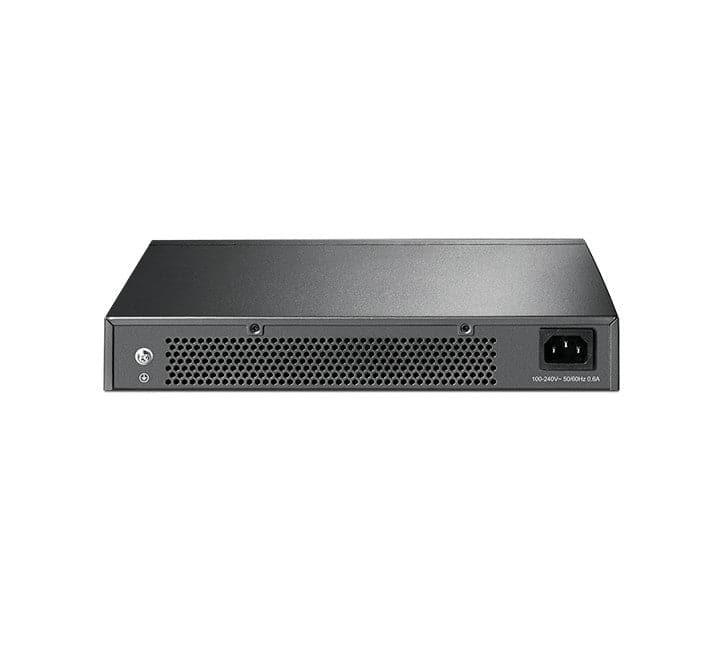

| Power Supply | 100-240VAC, 50/60Hz Internal Power Supply |
| Max Power Consumption | 13.62W (220V/50Hz) |
| Dimensions (W x D x H) | 11.6 × 7.1 × 1.7 in. (294 × 180 × 44 mm) |
| Mounting Options | Desktop / 13-inch Rackmountable |
| Performance & Advanced Functions | |
| Switching Capacity | 48 Gbps |
| Packet Forwarding Rate | 35.7 Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 10 KB |
| Advanced Functions | Port Isolation (Ports 1-22), Loop Prevention (Ports 1-24), Green Technology |
| Transfer Method | Store-and-Forward |
