Description

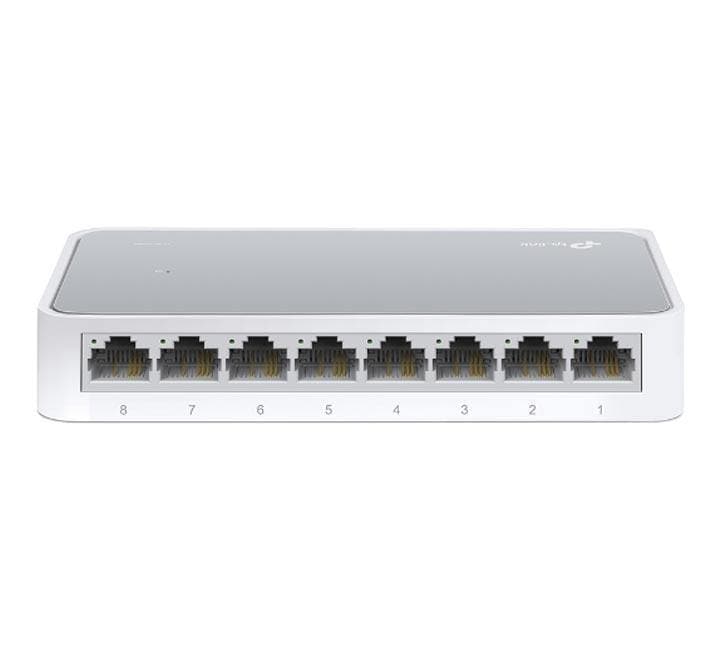

The TP-Link TL-SF1008D 8-Port 10/100Mbps Desktop Switch provides an easy, affordable, and high-performance way to expand your wired home or small office network. Designed for SOHO users and workgroups, this compact unmanaged switch lets you connect multiple devices instantly without complicated configurations.
Key Features
- 8 Fast Ethernet Ports: Equipped with 8 10/100Mbps auto-negotiation RJ45 ports supporting high-speed data transfer.
- Plug and Play Simplicity: Auto MDI/MDIX elimination of crossover cables means you can just plug in your cables and start working immediately.
- High Performance: Features a non-blocking switching architecture that forwards and filters packets at full wire-speed for optimal throughput. Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
- Energy-Efficient Green Technology: Innovative power-saving technology reduces power consumption by up to 60%, making it an eco-friendly network option.
- Compact Desktop Design: Storable, lightweight plastic case engineered to fit seamlessly on any desktop or workspace.
Technical Specifications
| Feature | Specification |
|---|---|
| Interface | 8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Standards & Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, CSMA/CD |
| Data Rates | 10/100Mbps at Half Duplex; 20/200Mbps at Full Duplex |
| Max Power Consumption | 2.05W (220V/50Hz) |
| Power Supply | External Power Adapter (Output: 5.0VDC / 0.6A) |
| Dimensions (W x D x H) | 5.3 × 3.1 × 0.9 in. (134.5 × 79 × 22.5 mm) |
| Certifications | FCC, CE, RoHS |
