Description
- Brand: TP-Link
- Model: TL-MR6500v
- Hardware Features

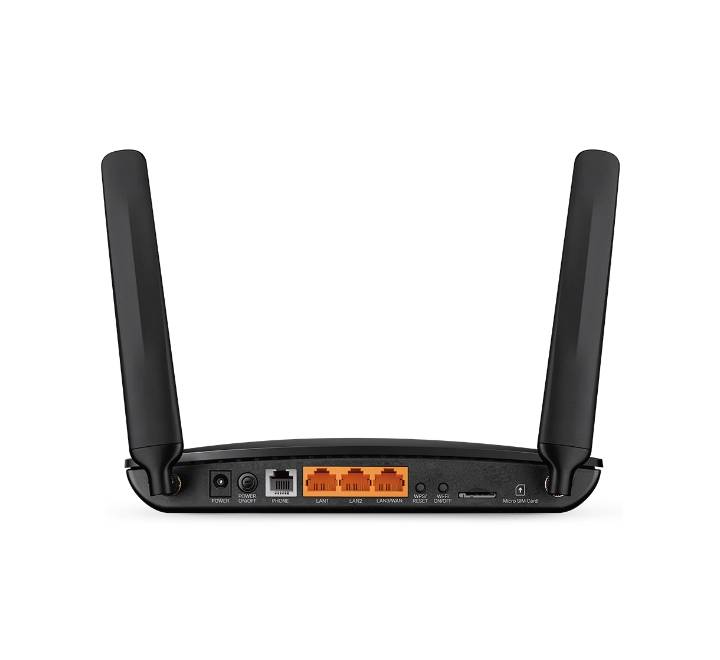

- Interface: 1× 10/100 Mbps LAN/WAN Port, 2× 10/100 Mbps LAN Ports, 1× Phone Port, 1 Micro SIM Card Slot
- Button: WPS/RESET Button, Wi-Fi ON/OFF Button
- External Power Supply: 12V/1A
- Dimensions: 202 × 141 × 33.6 mm
- Antenna: 2× Detachable External 4G LTE Antennas
- Wireless features
- Wireless Standards: IEEE 802.11b, 802.11g, 802.11n
- Frequency: 2.4 GHz
- Signal Rate: 300Mbps at 2.4GHz
- Reception Sensitivity
- 11g 54M: -74 dBm
- 11n HT20: -71 dBm
- 11n HT40: -67 dBm
- WAN Failover: Yes
- Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
- Network Type:
- 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800 MHz)
- TDD-LTE B38/B40/B41 (2600/2300/2500 MHz)
- 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900 MHz)
- Soft Features
- Quality of Service: WMM, QoS
- Operating Modes: 3G/4G Router, Wireless Router
- WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
- Management: Access Control, Local Management, Remote Management
- DHCP: Server, Client, DHCP Client List, Address Reservation
- Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
- Dynamic DNS: TP-Link DDNS, DynDns, NO-IP
- VPN Pass-Through: PPTP, L2TP, IPSec
- Access Control: Parental Controls, Local Management Control, Host List, Access Control
- Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding
- Protocols: Supports IPv4 and IPv6
- Guest Network: 2.4 GHz Guest Network
- VPN Server: PPTP VPN, OpenVPN
