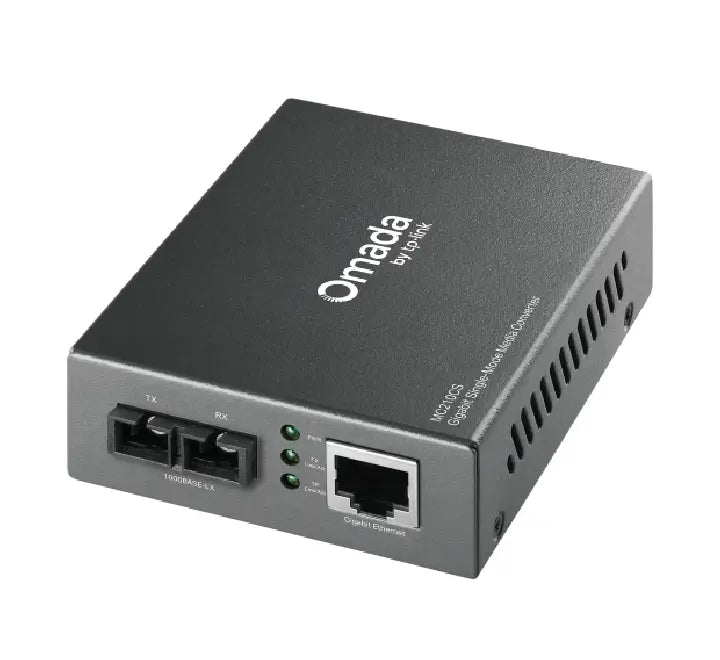

TP-Link Omada MC210CS Gigabit Single-Mode Media Converter

Bridge the gap between your high-speed copper ethernet infrastructure and long-range fiber optics with the enterprise-grade TP-Link Omada MC210CS Gigabit Single-Mode Media Converter. Specifically designed to seamlessly transform 1000BASE-LX/LH fiber lines into 1000Base-T copper mediums (and vice versa), this high-performance standalone unit ensures flawless data integration across long distances without signal degradation.

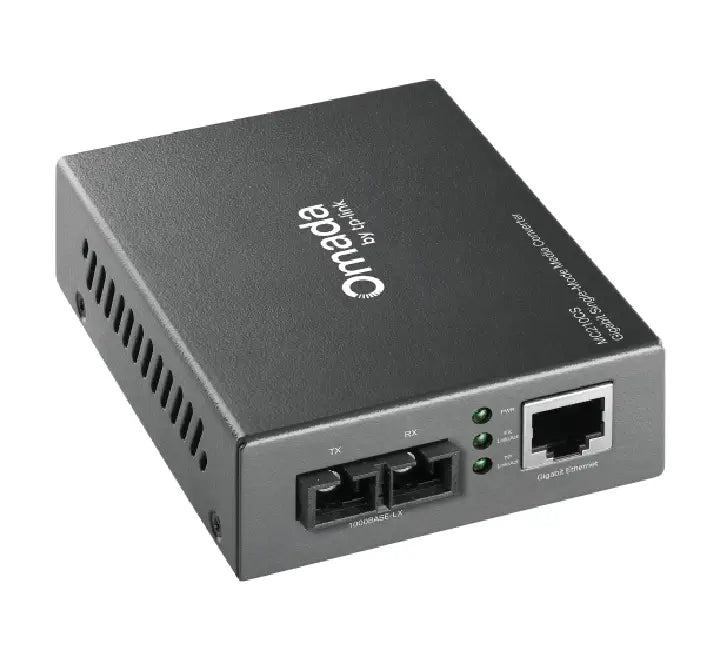

Adhering strictly to IEEE 802.3ab and IEEE 802.3z standards, the MC210CS employs a standard SC-type connector interface working at a 1310nm wavelength. It provides organizations with a highly scalable, rock-solid communication framework capable of transmitting mission-critical structural data across vast processing ranges.

Key Features & Enterprise Advantages

• Massive 15km Transmission Range: Break the typical 100-meter limitation of standard copper cabling. This module transmits full wire-speed gigabit signals up to 15 kilometers (9.3 miles) using single-mode optical fiber lines.
• Full-Duplex Flow Control: Achieves maximum network throughput operating seamlessly in Full-Duplex mode for both the TX (copper) port and FX (fiber) port, backed by integrated IEEE 802.3x flow monitoring logic.
• Intelligent Auto-Negotiation: The RJ45 copper interface port features native Auto MDI/MDI-X alignment capabilities, automatically determining data speed pacing and eliminating crossover patching requirements.
• Flexible Standalone or Chassis Deployment: Deploy as a lightweight standalone hardware bridge directly on your workspace desks, or clip cleanly into TP-Link's standard 14-slot rackmount system chassis (TL-MC1400) for clean data room configurations.

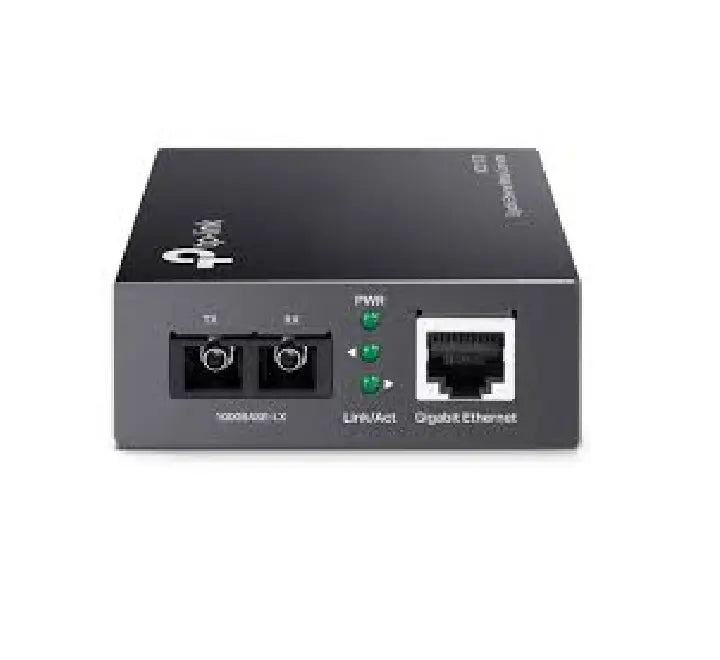

• Instant Diagnostic Indicators: Front-mounted diagnostic LED status arrays (PWR, Link/Act) provide network administrators with real-time feedback for fast link fault troubleshooting and direct activity tracing.

Detailed Technical Specifications
