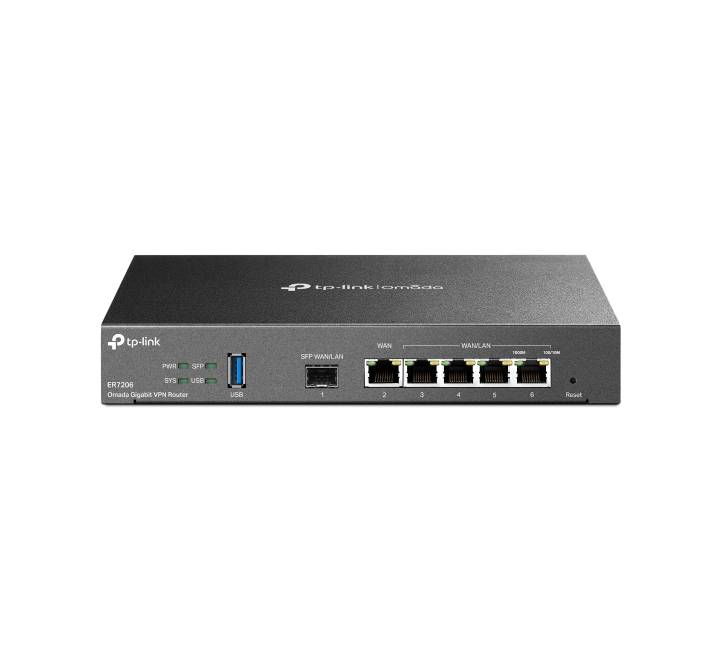

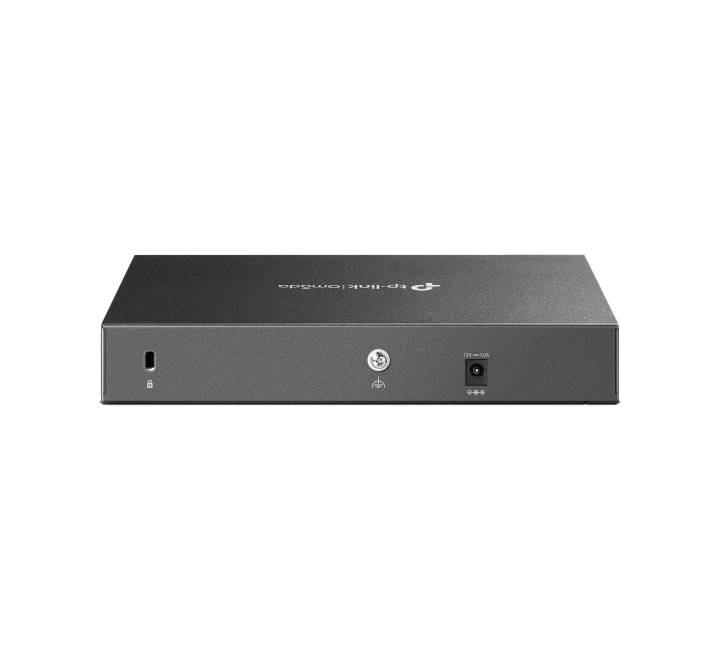

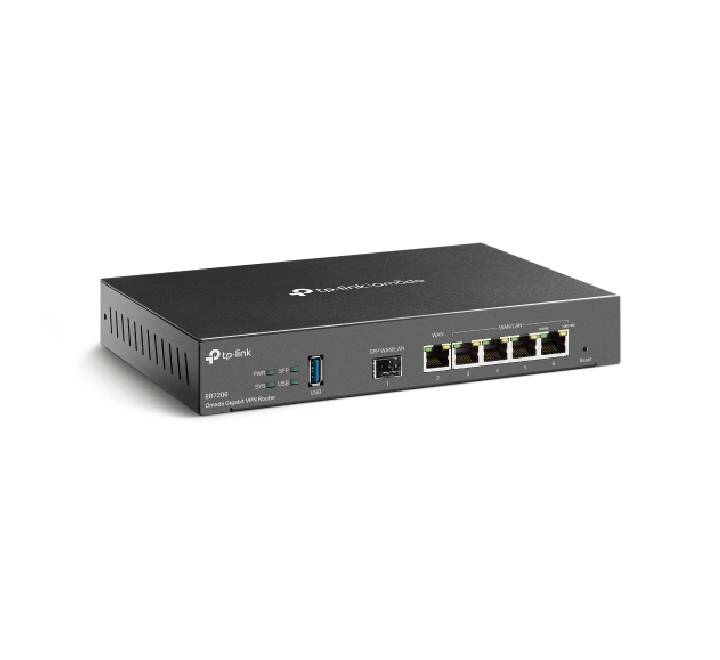

TP-Link ER7206 Omada Gigabit VPN Router

TP-Link ER7206 Omada Gigabit VPN Router

• Brand: TP-Link
• Model: ER7206
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.

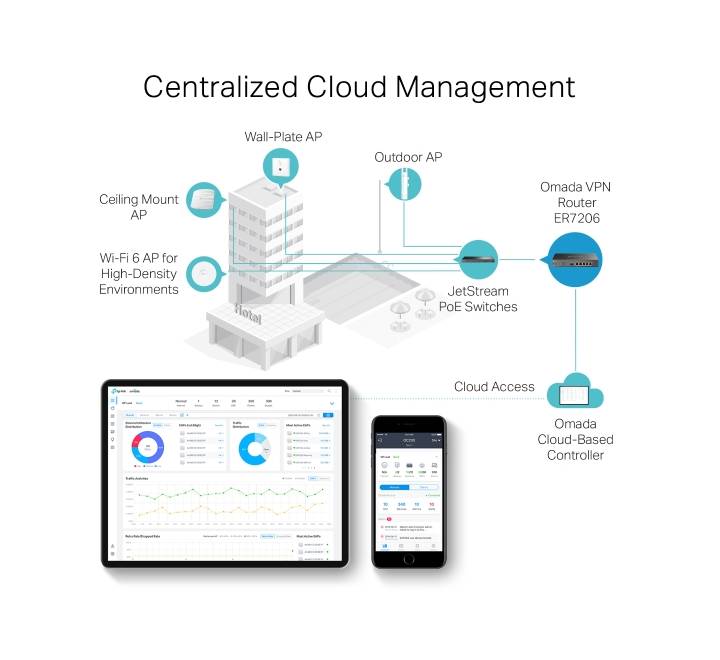

• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Gigabit Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.

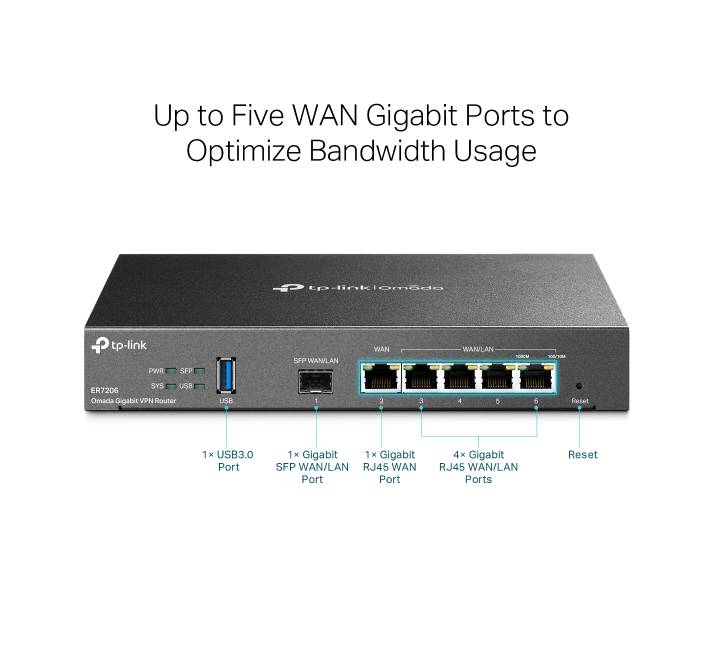

• Up to 5 WAN Ports: Gigabit SFP WAN port and gigabit RJ45 WAN port optimize bandwidth usage.

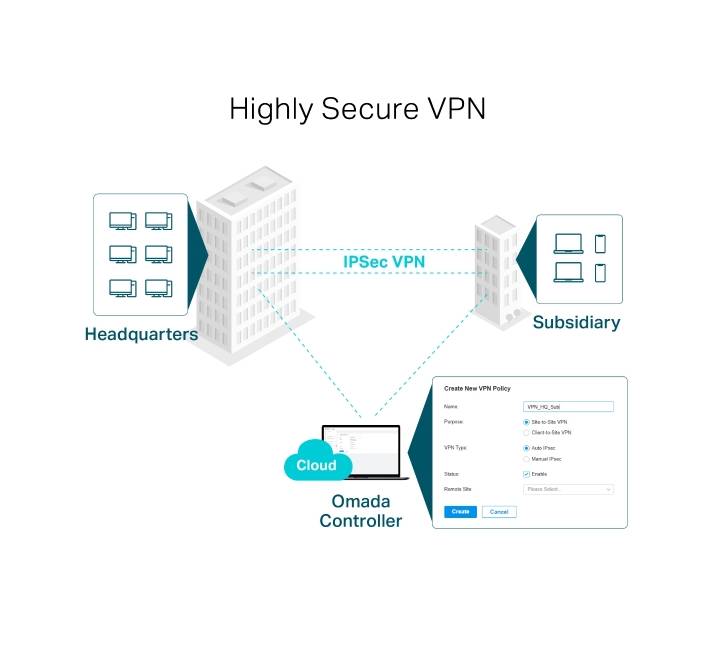

• Highly Secure VPN△: Supports multiple VPN protocols including SSL / Wireguard / OpenVPN/ IPSec / GRE VPN§/ PPTP/ L2TP/ L2TP over IPSec, helping users to establish VPN connections more flexibly

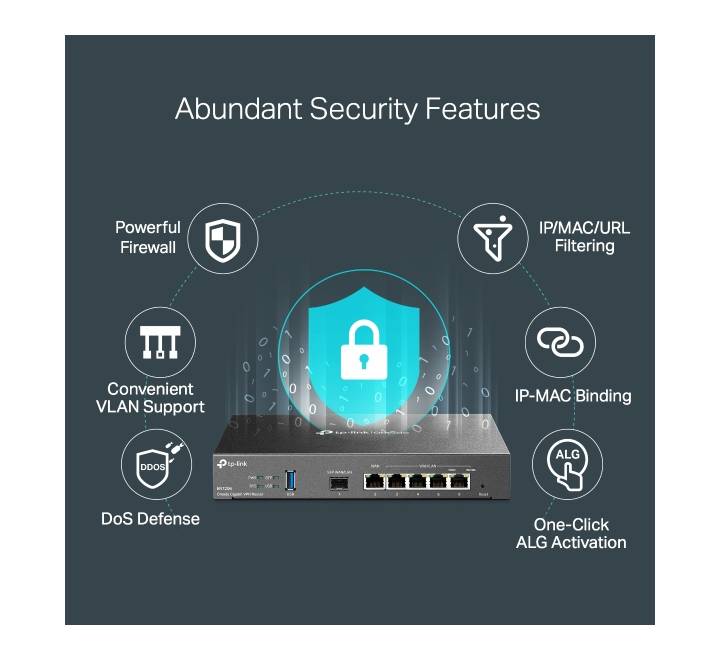

• Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.
• SECURITY
• Access Control: Source/Destination IP Based Access Control
• Filtering
• WEB Group Filtering§
• URL Filtering
• Web Security§
• ARP Inspection
• Sending GARP Packets§
• ARP Scanning§
• IP-MAC Binding
• Attack Defense
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
• HARDWARE FEATURES
• Standards and Protocols
• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
• Interface
• 1 Gigabit SFP WAN/LAN Port
• 1 Gigabit WAN Port
• 4 Gigabit LAN/WAN Ports
• 1 USB 3.0 Port (supports USB LTE dongle and USB storage)
• Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
• Fan Quantity: Fanless
• Button: Reset Button
• Power Supply: 12V DC/ 1A Power Adapter
• PoE Budget -
• Flash: 128 MB NAND
• DRAM: 512 MB DDR4
• LED: PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
• Dimensions ( W x D x H ): 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
• Protection: 4 kV surge protection
• Enclosure: Steel
• Mounting: Desktop/ Wall-Mounting
• Max Power Consumption
• 7.5 W (with USB 3.0 connected)
• 4.5 W (without USB 3.0 connected)
• PERFORMANCE
• IPS Throughput
• TCP: 229 Mbps;
• UDP: 188 Mbps
• DPI Throughput
• TCP: 933 Mbps;
• UDP: 927 Mbps
• WireGuard VPN: 341.3 Mbps
• Concurrent Session: 150,000
• New Sessions /Second: 5,300
• NAT (Static IP): 945.3 Mbps / 940.5 Mbps
• NAT(DHCP): 939.6 Mbps / 940.9 Mbps
• NAT(PPPoE): 943.6 Mbps / 940.9 Mbps
• NAT (L2TP): 880.1 Mbps / 859.0 Mbps
• NAT (PPTP): 855.0 Mbps / 907.2 Mbps
• 64 Byte Packet Forwarding Rate -
• IPsec VPN Throughput
• ESP-SHA1-AES256: 617.1 Mbps
• ESP-SHA256-AES256: 592.8 Mbps
• ESP-SHA384-AES256: 592.4 Mbps
• ESP-SHA512-AES256: 604.5 Mbps
• OpenVPN 139.1 Mbps
• L2TP VPN Throughput
• Unencrypted: 977.4 Mbps
• Encrypted: 334.6 Mbps
• PPTP VPN Throughput
• Unencrypted: 1064.1 Mbps
• Encrypted: 206.8 Mbps
• SSL VPN Throughput: 131.6 Mbps
• 66 Byte Packet forwarding rate: 1,453,489 pps / 1,453,488 pps
• 1,518 Byte Packet forwarding rate: 81,279 pps / 81,275 pps
• BASIC FUNCTIONS
• WAN Connection Type
• Static IP
• Dynamic IP
• PPPoE(supports MRU Configuration)
• PPTP
• L2TP
• MAC Clone: Modify WAN/LAN MAC Address†
• DHCP
• DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
• IPv6: StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode
• VLAN: 802.1Q VLAN
• IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
• ADVANCED FUNCTIONS
• ACL: IP/Port/Protocol/Domain Name Filtering
• Advanced Routing
• Static Routing
• Policy Routing
• RIP§
• OSPF§
• Bandwidth Control: IP-based Bandwidth Control
• Load Balance
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection
• NAT
• One-to-One NAT
• Multi-Net NAT
• Port Forwarding
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
• Session Limit: IP-based Session Limit
• VPN
• SSL VPN 50 Tunnels
• IPsec VPN
• 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
• PPTP VPN
• PPTP VPN Server
• PPTP VPN Client (10)‡
• 50 Tunnels
• PPTP with MPPE Encryption
• L2TP VPN
• L2TP VPN Server
• L2TP VPN Client (10)‡
• 50 Tunnels
• L2TP over IPSec
• OpenVPN
• OpenVPN Server
• OpenVPN Client (5)‡
• 55 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode
• AUTHENTICATION
• Web Authentication
• No Authentication
• Simple Password*
• Hotspot(Local User /Voucher*/ SMS*/Radius*)
• External Radius Sever
• External Portal Sever*
• LDAP§
• MANAGEMENT
• Omada App: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
• Service Dynamic DNS: (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
• Maintenance
• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)§
• NTP Synchronize§
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support
• Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
• Management Features
• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
• OTHERS
• Certification: CE, FCC, RoHS
• Package Contents
• ER7206(TL-ER7206)
• Power Cord
• Quick Installation Guide
• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux
• Environment
• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
