Description

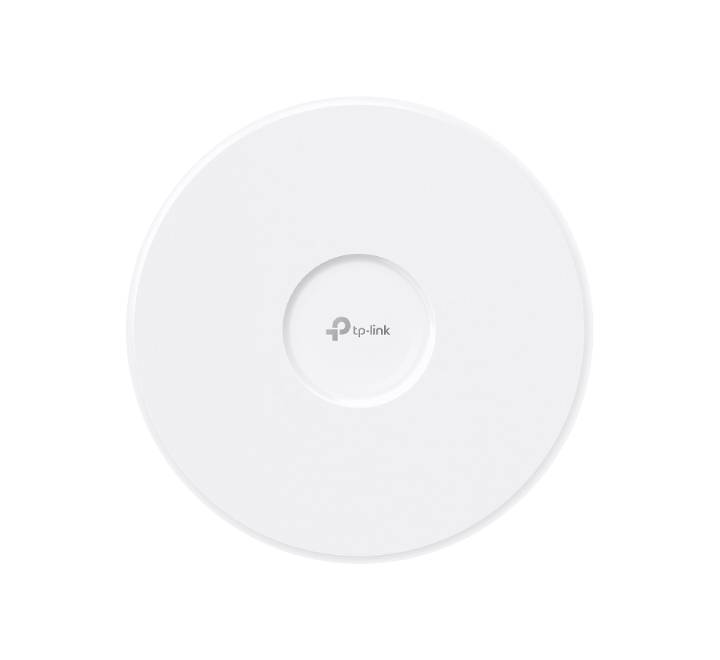

Step into the future of enterprise networking with the TP-Link Omada EAP723 BE5000 Ceiling Mount Dual-Band Wi-Fi 7 Access Point. Engineered to serve as an entry-level genius for ultra-high-density business environments, this exceptionally slim access point introduces cutting-edge Wi-Fi 7 technology to deliver blazing speeds up to 5.0 Gbps. By integrating seamlessly into the Omada Software Defined Networking (SDN) ecosystem, it enables effortless centralized cloud management, robust multi-gigabit performance, and network scaling tailored for modern enterprises, schools, retail centers, and smart offices.
Key Features & Benefits
- Next-Gen Dual-Band Wi-Fi 7 Speeds: Experience incredible wireless performance with up to 4324 Mbps on the 5 GHz band and 688 Mbps on the 2.4 GHz band for heavy multi-user data streaming and latency-free operations.
- Optimized 2.5G Port & Wired Performance: Equipped with a 2.5 Gigabit Ethernet port to unlock the true potential of Wi-Fi 7, eliminating bottlenecks and maximizing data throughput.
- Advanced Wi-Fi 7 Technologies (MLO & 4K-QAM): Multi-Link Operation (MLO) allows simultaneous transmission across bands for lower latency, while 4K-QAM offers 20% more data transmission capacity than Wi-Fi 6.
- High Capacity & Expansive Coverage: Confidently supports 250+ concurrent client connections and spans up to 1500 sq ft (140 m²) of extensive, high-speed wireless coverage.
- Ultra-Slim & Compact Aesthetics: Features a refined, modern industrial build measuring just 6.3 × 6.3 × 1.4 inches that blends elegantly into any enterprise ceiling layout.
- Omada Centralized Cloud Management: Benefit from 100% centralized cloud monitoring, Zero-Touch Provisioning (ZTP), and control through the unified web portal or the user-friendly Omada App.
- Flexible Power (802.3at PoE+): Runs smoothly over standard 802.3at PoE+ power networks for clean, single-cable installations (also supports an alternative 12V DC power configuration).
Technical Specifications
| Specification Class | Technical Data Details |
|---|---|

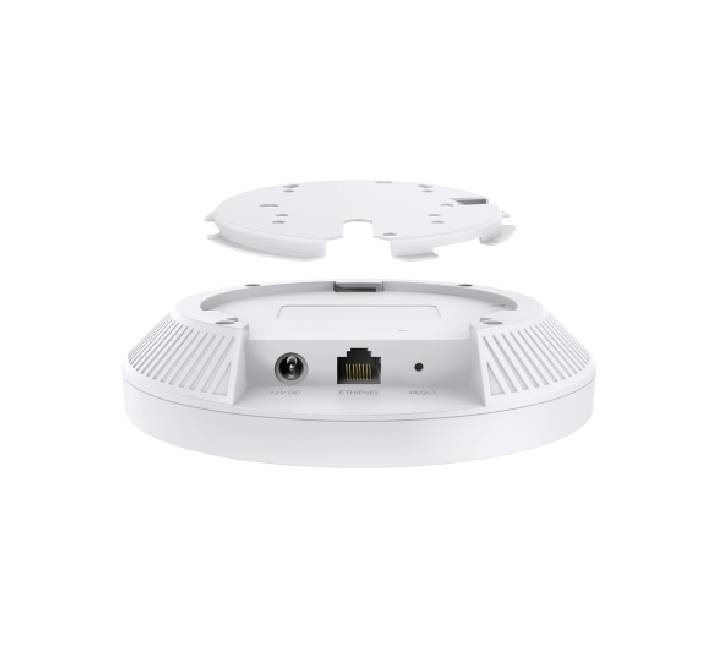

| Interface | 1 × 2.5 Gigabit Ethernet (RJ-45) Port (Supports IEEE 802.3at PoE) |
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Signal Rates | 5 GHz: Up to 4324 Mbps | 2.4 GHz: Up to 688 Mbps |
| Antenna Specifications | Internal Omni Antennas (2.4 GHz: 2× 4.0 dBi; 5 GHz: 2× 5.0 dBi) |
| Max Power Consumption | 17.8 W (For PoE) | 14.0 W (For DC) |
| Power Options | 802.3at PoE+ or 12V / 1.5A DC (Note: DC Power Adapter is not included) |
| Dimensions (W x D x H) | 160 × 160 × 36.7 mm (6.3 × 6.3 × 1.4 in) |
| Wireless Capabilities | Multi-Link Operation (MLO), 4K-QAM, 240 MHz Bandwidth, Multi-RUs, Omada Mesh, Seamless Roaming, OFDMA |
| Wireless Security | WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, Captive Portal, Rogue AP Detection |
| Mounting Capabilities | Ceiling, Wall, or Junction Box Mounting (Complete kit hardware included) |
