Description

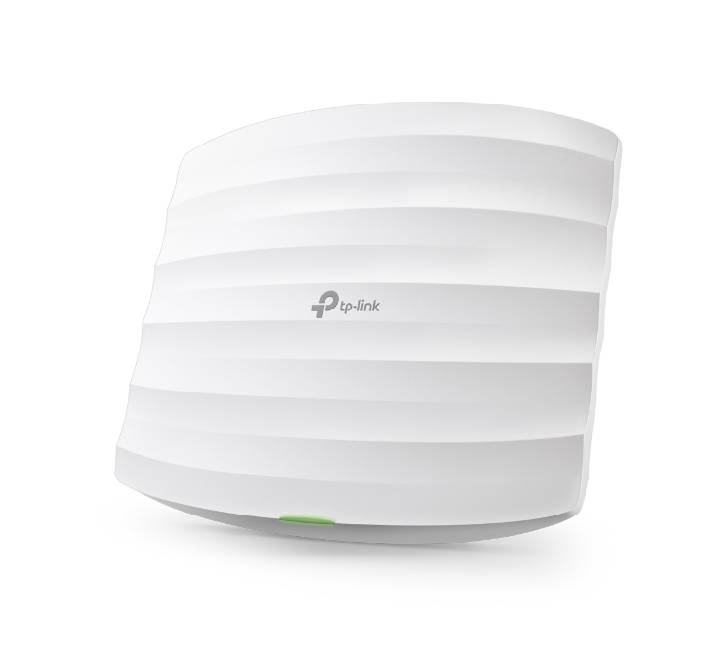

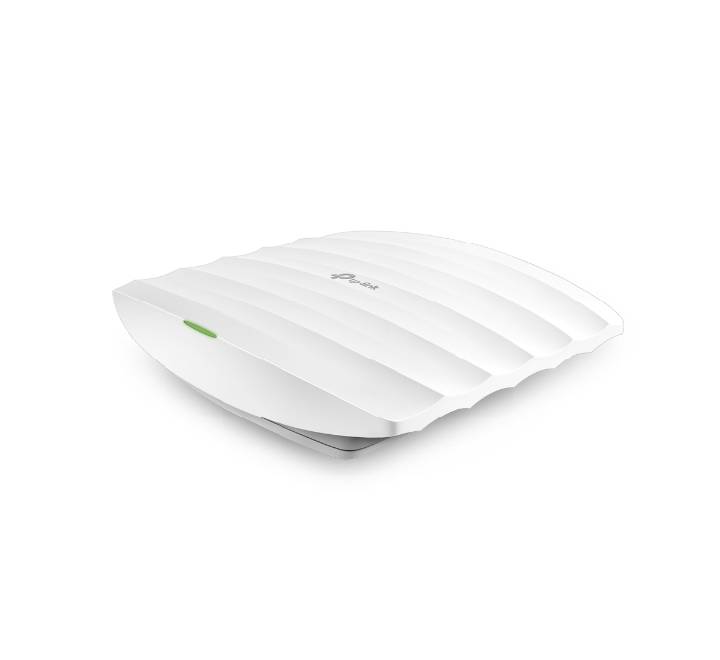

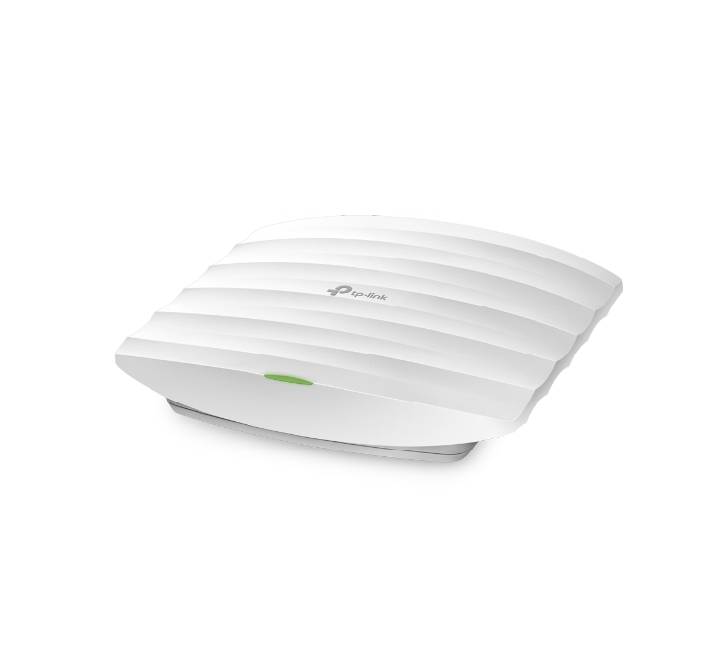

TP-Link EAP115 300Mbps Wireless N Ceiling Mount Access Point
- Integrated into Omada SDN: Centralized Cloud Management and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.*
- PoE Support: Supports Power over Ethernet (802.3af/at) for convenient deployment.
- Easy Installation: Simple mounting design for easy attachment to a wall or ceiling.
- Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.*
- Load Balancing: Limit the number of users on each access point and remove devices with weak reception to keep your Wi-Fi running at peak performance.
- Scheduling: Automatically reboot the access point and turn on or off the Wi-Fi at the time you set.
- HARDWARE FEATURES
- Interface: 1× Fast Ethernet (RJ-45) Port (Support IEEE802.3af PoE)
- Button: Reset
- Power Supply: 802.3af PoE or external 9VDC/0.6A power supply
- Power Consumption: 2.8 W
- Dimensions ( W x D x H ): 7.5×6.7×1.2 in (189.5×170.5×29.7mm)
- Antenna Type: Internal 2× 4 dBi Omni
- Mounting: Ceiling /Wall Mounting (Kits included)
- WIRELESS FEATURES
- Coverage: 60㎡(650ft²)§
- Concurrent Clients: 100+**
- Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Frequency: 2.4–2.4835 GHz
- Signal Rate
- 11n: Up to 300Mbps(dynamic)
- 11g: Up to 54Mbps(dynamic)
- 11b: Up to 11Mbps(dynamic)
- Reception Sensitivity
- 300M: -71dBm@10% PER
- 150M: -75dBm@10% PER
- 54M: -78dBm@10% PER
- 11M: -93dBm@8% PER
- 6M: -92dBm@10% PER
- 1M: -96dBm@8% PER
- Wireless Functions
- Multiple SSIDs (Up to 8 SSIDs)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
- Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless MAC Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
- Transmission Power
- CE:
- ≤19 dBm (EIRP)
- FCC:
- ≤21 dBm
- MANAGEMENT
- Omada App: Yes
- Centralized Management
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Cloud Access: Yes (Through OC300, OC200, or Omada Software Controller)
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1,v2c
- System Logging Local/Remote Syslog
- Local/Remote Syslog
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes
- OTHERS
- Certification: CE, FCC, RoHS
- Package Contents
- 300Mbps Wireless N Ceiling Mount Access Point EAP115
- Power Adapter
- Mounting Kits
- Installation Guide
- System Requirements: Microsoft Windows 11/10/8/7/Vista/XP, Linux
- Environment
- Operating Temperature: 0–40 ℃ (32–104 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
