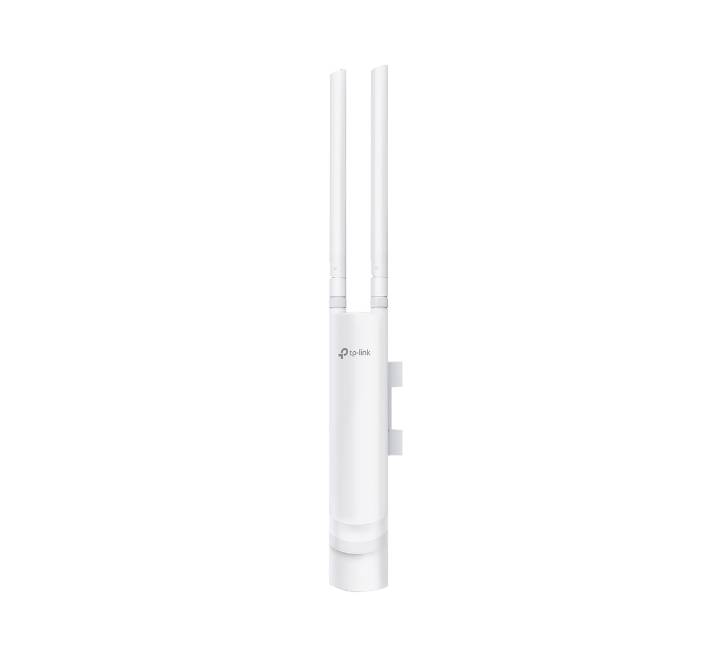

Deliver robust, long-range Wi-Fi coverage across outdoor venues with the TP-Link EAP110-Outdoor 300Mbps Wireless N Outdoor Access Point. Engineered with an IP65-rated weatherproof casing, high transmission power, and dual omnidirectional antennas, the EAP110-Outdoor provides stable wireless connectivity up to 200+ meters in challenging environments like patios, gardens, outdoor pools, and parking lots.
Key Features & Highlights
- IP65 Weatherproof Enclosure: Durable housing built to resist harsh weather, including rain, snow, dust, and operating temperatures from -30°C to 65°C.
- Long-Distance Wireless Coverage: High transmission power and two 3dBi omni antennas deliver seamless Wi-Fi coverage up to 200 meters.
- 300Mbps Wireless N Speed: 2x2 MIMO technology provides 2.4 GHz wireless speeds up to 300 Mbps for smooth video streaming and web browsing.

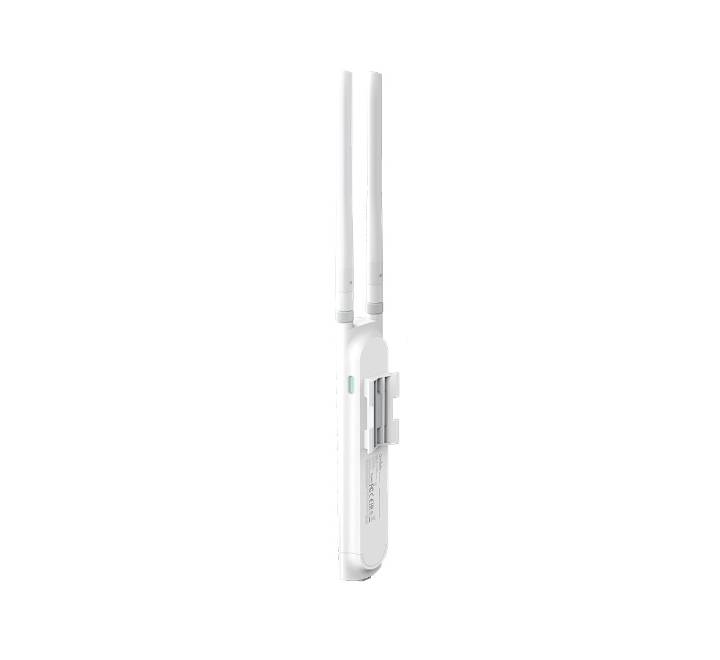

- Flexible Passive PoE Deployment: Powered via 24V Passive Power over Ethernet (PoE Adapter included), enabling clean single-cable installation up to 60 meters.
- Omada SDN Centralized Management: Easily manage your network locally or remotely via the Omada Cloud Controller, Software Controller, or free Omada App.
- Enterprise Electrical Protection: Built-in 15kV ESD and 6kV Lightning Protection safeguard hardware against sudden voltage surges and static discharge.
- Captive Portal Guest Authentication: Offers customizable guest access logins via Facebook Wi-Fi, SMS, or Voucher verification.
- Pole & Wall Mount Included: Flexible mounting options out of the box for quick installation on outdoor poles or exterior walls.
Product Overview
Engineered for Demanding Outdoor Climates
The TP-Link EAP110-Outdoor is designed from the ground up for extreme durability. Featuring IP65 dust-tight and rainproof construction, along with integrated 6kV lightning protection and 15kV electrostatic discharge (ESD) shielding, this access point stays online through storms, high humidity, and extreme seasonal temperatures.
Centralized Cloud Control with Omada SDN
Seamlessly integrate the EAP110-Outdoor into your Omada Software Defined Networking (SDN) infrastructure. Network administrators can monitor channel utilization, set bandwidth limits, manage multi-SSID guest access, and deploy firmware updates across multiple locations from a single dashboard with zero subscription costs.
Convenient Passive PoE & Easy Mounting
Forget about installing electrical outlets on outer walls or high poles. The EAP110-Outdoor utilizes 24V Passive PoE, delivering power and data over a single Ethernet cable. Combined with the included wall and pole mounting hardware, outdoor deployment is straightforward and cost-effective.
Technical Specifications
| Wireless Standard | IEEE 802.11b/g/n (2.4 GHz) |
|---|---|
| Maximum Speed | 300 Mbps (2.4 GHz) |
| Ethernet Port | 1x Fast Ethernet (RJ-45) Port (Supports 24V Passive PoE) |
| Antennas | 2x 3dBi External Waterproof Detachable Omni Antennas |
| Weatherproof Rating | IP65 Enclosure |
| Power Supply | 24V Passive PoE (+4,5pins; -7,8pins) (PoE Adapter Included) |
| Max Power Consumption | 3.12 W |
| Surge Protection | 15 kV ESD Protection, 6 kV Lightning Protection |
| Mounting | Pole and Wall Mounting (Kit Included) |
| Wireless Features | Multiple SSIDs (Up to 8), Load Balance, Rate Limit, Captive Portal |
| Security Protocols | WPA/WPA2-Enterprise, WPA-PSK / WPA2-PSK, Rogue AP Detection |
| Operating Temperature | -30°C to 65°C (-22°F to 149°F) |
| Dimensions (W x D x H) | 216 x 46 x 27 mm (excluding antennas) |
