Description

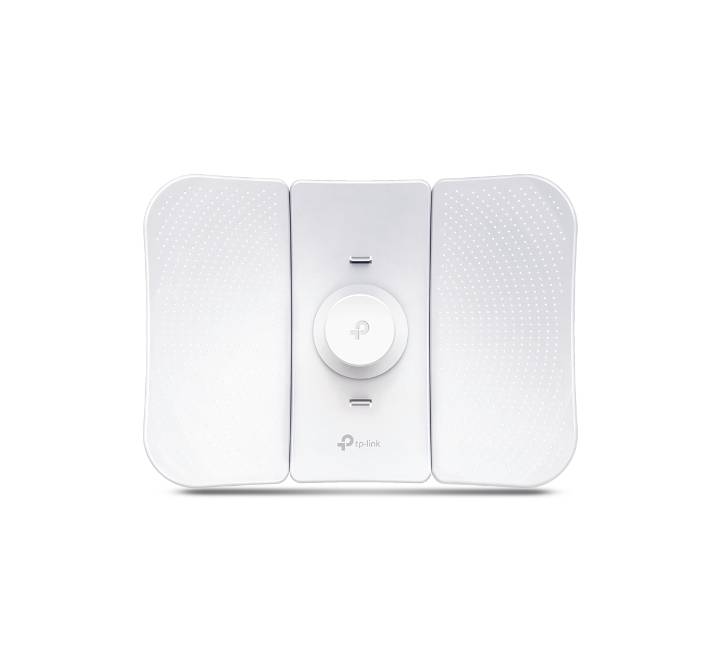

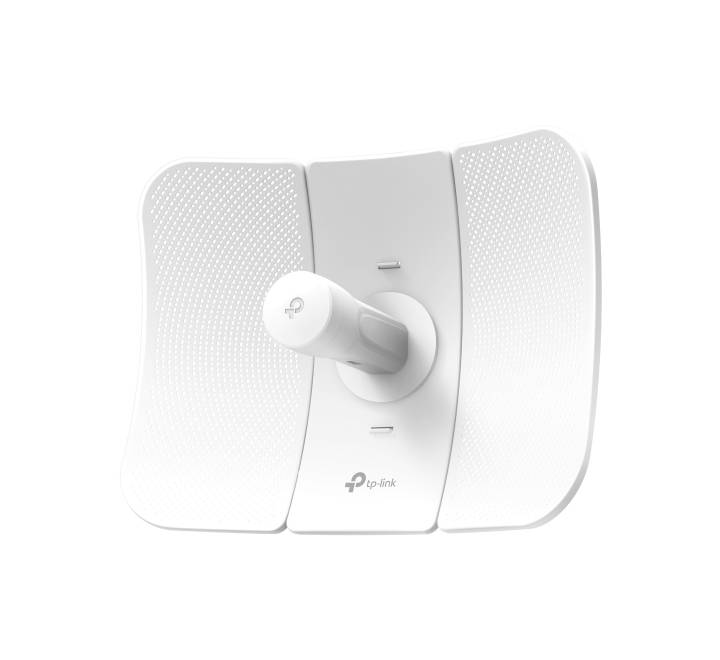

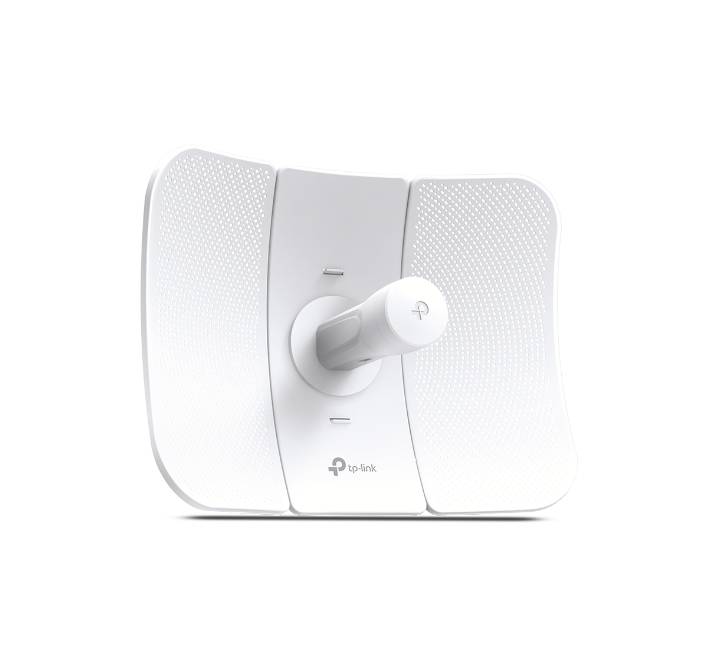

TP-Link CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE
- 802.11ac for up to 867Mbps on 5GHz wireless data rate*1
- 23dBi high-gain directional 2×2 MIMO, ideal for long-range wireless transmission up to 30km*2
- Excellent beam directivity, improved latency and noise cancellation

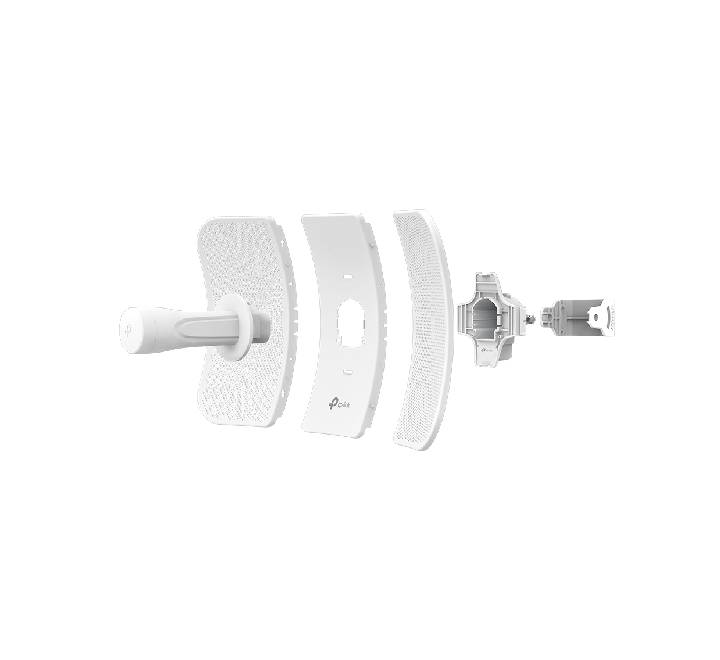

- Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
- Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability*3
- Pharos Control gives administrators a free, centralized management system
- Passive PoE supports to allow flexible deployment and convenient installation
- HARDWARE FEATURES
- Processor: Qualcomm 750MHz CPU, MIPS 74Kc
- Memory: 128 MB DDR2 RAM, 16 MB Flash
- Interface: 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
- 1 Reset Button
- Power Supply: Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
- Voltage range: 16-27V DC
- Dimensions ( W x D x H ): 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
- Antenna Gain: 23 dBi
- Antenna Beamwidth: 9° (Azimuth)/7° (Elevation)
- Protection: 15 KV ESD Protection
- 6 KV Lightning Protection
- Enclosure Material: Outdoor PC stabilized plastic
- Weatherproof: IP65 water and dust proof design
- WIRELESS FEATURES
- Wireless Standards: IEEE 802.11a/n/ac
- Wireless Speeds Up to 867 Mbps (80 MHz, Dynamic)
- Up to 400 Mbps (40 MHz, Dynamic)
- Up to 173.4 Mbps (20 MHz, Dynamic)
- Frequency: 5.15–5.85 GHz
- Transmit Power Max. 27 dBm (Adjustable power by 1dBm)
- SOFTWARE FEATURES
- Network Configuration: WAN: Static/ Dynamic/ PPPoE
- LAN: Static/ Dynamic/ DHCP
- Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
- Security: SPI Firewall/ Ping Forbidden/ DoS Protection
- Access Control
- Static Routing
- Bandwidth Control
- IP & MAC Binding
- Wireless Configurations Selectable Channel Width: 20/40/80MHz
- Auto Channel Selection
- Transmit Power Control
- Dynamic Frequency Selection(DFS)
- WDS Enable/ Disable
- Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
- SSID Broadcast Enable/ Disable
- Multi-SSID with VLAN Tagging(AP Mode only)
- Distance/ ACK Timeout Setting
- Wireless MAC Address Filter
- Wireless Advanced:
- Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia
- Long Range PtP
- Management
- Discovery and Remote Management via Pharos Control application
- HTTP/ HTTPS Web-based management
- System log
- SNMP Agent(v2c)
- Ping Watch Dog
- Dynamic DDNS
- SSH Server
- System Tools: Indicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory
- Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP
- Spectrum Analyzer
- Speed Test
- Ping
- Traceroute
- Antenna Alignment
- System-level Optimizations
- Optimized IGMP Snooping / Proxy for multicast applications
- POE ADAPTER FEATURES
- Dimensions(W x D x H): 85.8×43.9×29.7 mm
- Interfaces
- 1 AC Jack with Earth Ground
- 1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
- 1× 10/100/1000 Mbps Shielded Ethernet Port (Data)
- Button Remote Reset Button
- Power Status LEDs: Green
- Input: 100-240VAC, 50/60Hz
- Output: 24VDC, 0.5A Max
- +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
- Efficiency
- >84.29%
- Certifications: CE/FCC/UL/IC/GS/PSB/SAA/S-Mark/KC-mark
- OTHERS
- Certification: CE, FCC, RoHS, IP65, IC
- Package Contents: Outdoor Wireless CPE
- 24V 0.5A Passive PoE Adapter
- Pole Mounting Kits
- AC Power Cord
- Installation Guide
- System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
- Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
- Environment
- Operating Temperature: -40℃~70℃ (-40℉~158℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~95% non-condensing
