- P/N: PS-TPD-1050F3FAPx-1
- WATTS: 1050W
- RGB FAN: Yes
- MODEL: TPD-1050AH3FCP-A
- MAX. OUTPUT CAPACITY: 1050W
- PEAK OUTPUT CAPACITY: 1260W
- COLOR: Black
- DIMENSION ( W / H / D ): 150mm(W) x 86mm(H) x 180mm(D)
- PFC (POWER FACTOR CORRECTION): Active PFC
- POWER GOOD SIGNAL: 100-500 msec
- HOLD UP TIME: > 16m sec at 100% of full load
- INPUT CURRENT: 13A
- INPUT FREQUENCY RANGE: 50Hz - 60Hz
- INPUT VOLTAGE: 100V – 240V~
- OPERATING TEMPERATURE: 0°C to + 50°C
- OPERATING HUMIDITY: 20% to 90%,non-condensing
- STORAGE TEMPERATURE: -20°C to + 70°C
- STORAGE HUMIDITY: 5% to 95%, non-condensing
- COOLING SYSTEM: 14cm hydraulic bearing fan
- EFFICIENCY: Meet 80 PLUS®Platinum at 115Vac input.
- MTBF: 120,000 hrs minimum
- SAFETY APPROVAL: CE/cTUVus/TÜV/FCC/BSMI/CCC/EAC/S-Mark
- PCI-E 6+2PIN: 8
- PROTECTION: OCP, OVP, UVP, OPP, SCP, OT
- Warranty: 1 Year
Zero Cable Platform
Farewell to messy cables! The daughterboards are directly soldered to the motherboard for better heat dissipation and impressive output power quality

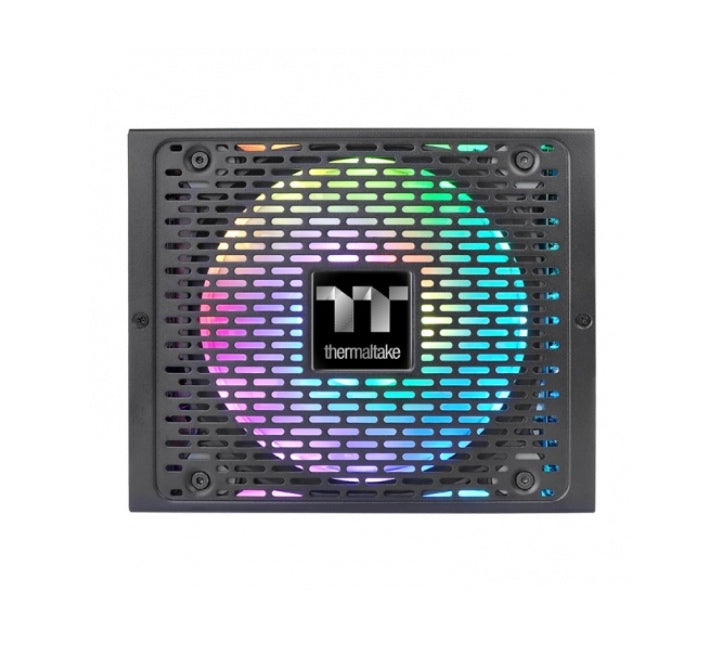

Ultra Quiet Smart Zero Fan
With Smart Zero Fan starting to operate when the power supply working load goes over 40%, the undesired noise will be minimized. A user-friendly switch is set on the back panel for those who prefer the fan to spin constantly.
＜30 mV Low Ripple Noise
All ripples are lower than 30mV on +12V, +5V, or +3.3V from 0% to 100% load to ensure an excellent performance and a reliable operation.
Extremely Strict Voltage Regulation ＜±2%
The voltage regulation, more strict than Intel’s standard ±5% for major rails and ±10% for -12V, is set to no more than ±2% for major rails to meet the highest performance.
100% High Quality Japanese 105°C/221°F Capacitors
Comes with high quality 105 °C (221 ° F) Japanese capacitors to help improve the durability and offer impressive stability.
Fully Modular Low-profile Flat Black Cables
The series offers cable selection for users while powering the system at an advantageous voltage. The low-profile flat black cables make cable management easier, reduce clutter and increase airflow inside the chassis.
High Amperage Single +12V Rail Design
Powerful single +12V rail helps ensure a stable and reliable supply to other PC components.
