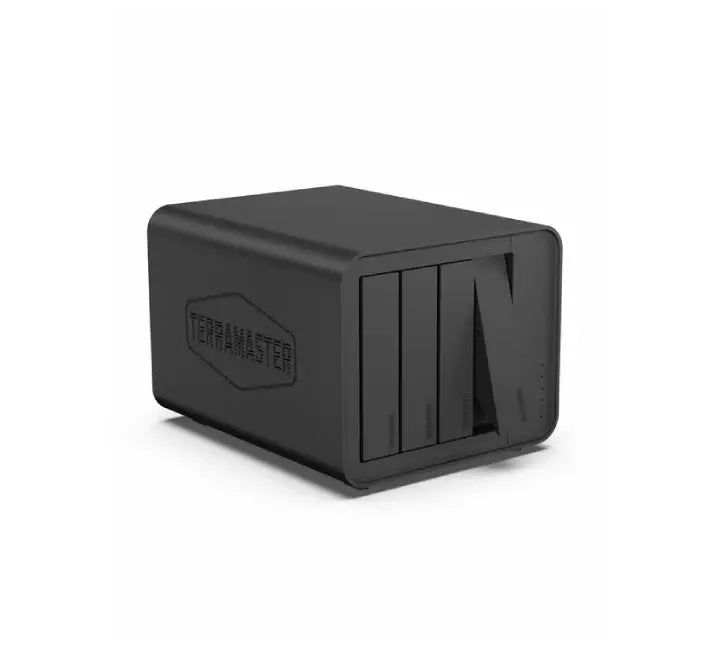

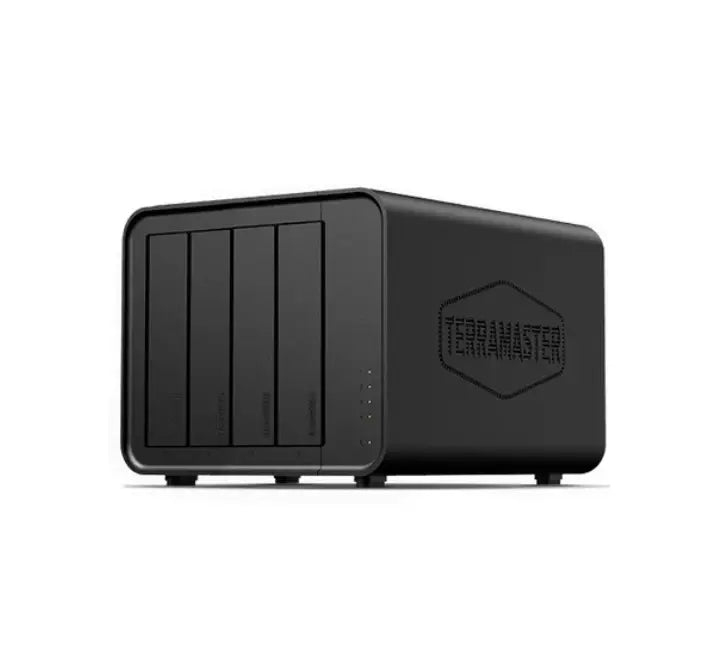

High-Performance 4-Bay NAS Enclosure for Home & SMB
The TerraMaster F4-424 is engineered for high-demand home users, creative professionals, and small-to-medium businesses (SMBs) seeking a fast, secure, and flexible network-attached storage solution. Equipped with an Intel Celeron N95 Quad-Core processor and 8GB DDR5 RAM, the F4-424 delivers up to a 140% performance boost over previous generations.
Whether you are managing complex business backups, running Docker containers, setting up virtualized environments, or building a high-throughput 4K media server, the F4-424 handles intensive multi-user workloads effortlessly.
Key Features
- Next-Gen Hardware Power: Driven by an Intel Celeron N95 4-Core 4-Thread CPU (Turbo up to 3.4GHz) with integrated Intel UHD Graphics and AES-NI hardware encryption.
- Fast DDR5 Memory: Ships with 8GB DDR5 4800MHz non-ECC RAM (upgradable up to 32GB) for snappy application response and fast multitasking.
- Dual 2.5GbE Networking: Built-in dual 2.5 Gigabit Ethernet ports support Link Aggregation for total network bandwidth up to 5Gbps and transfer speeds up to 283 MB/s.
- Dual M.2 NVMe SSD Cache Slots: Dual M.2 slots enable SSD acceleration or hyper-caching to accelerate database, virtualization, and file retrieval speeds.

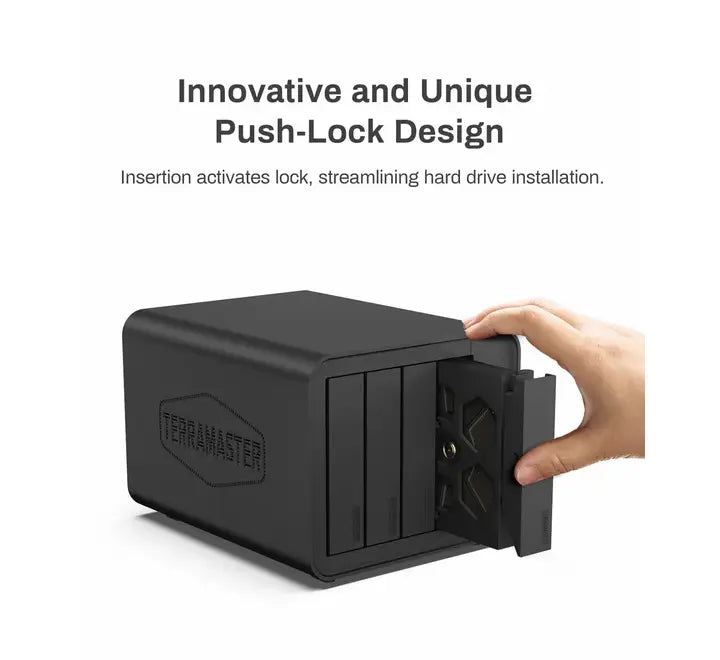

- Tool-Less & Push-Lock Hard Drive Trays: Effortless drive installation with a side-sliding chassis cover and Push-Lock tray design that prevents accidental drive disconnects.
- Comprehensive Backup Suite: Fully integrated with TerraMaster Business Backup Suite (BBS), supporting Centralized Backup, Duple Backup, CloudSync, and Snapshot protection.
- Advanced OS & AI Integration: Runs on TOS (TerraMaster Operating System) with support for AI-driven photo organization, Docker, iSCSI, TRAID, and multi-version security.
Technical Specifications
| Specification | Details |
|---|---|
| Processor (CPU) | Intel Celeron N95 Quad-Core 4-Thread (Up to 3.4GHz Turbo) |
| System Memory (RAM) | 8GB DDR5 4800MHz (Expandable up to 32GB) |
| Drive Bays | 4 x 3.5" or 2.5" SATA HDD/SSD Bays |
| M.2 SSD Slots | 2 x M.2 2280 NVMe Slots (For SSD Caching / Storage) |

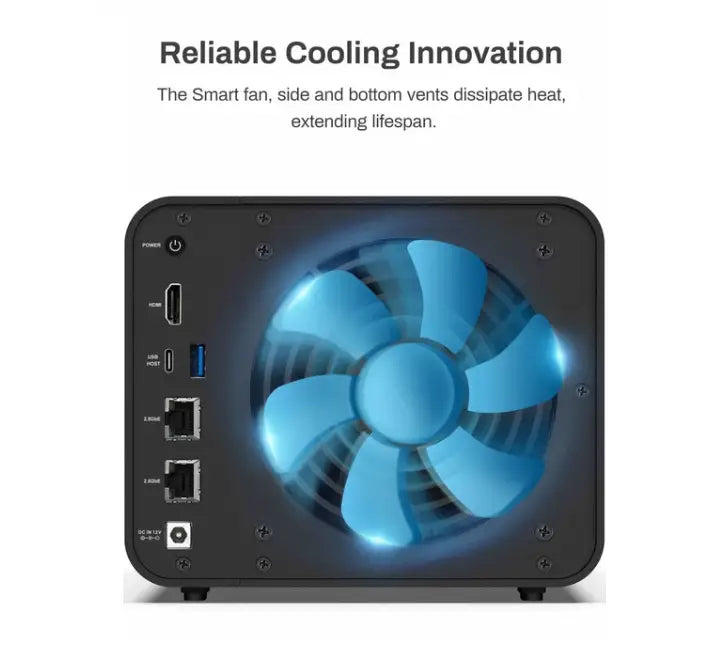

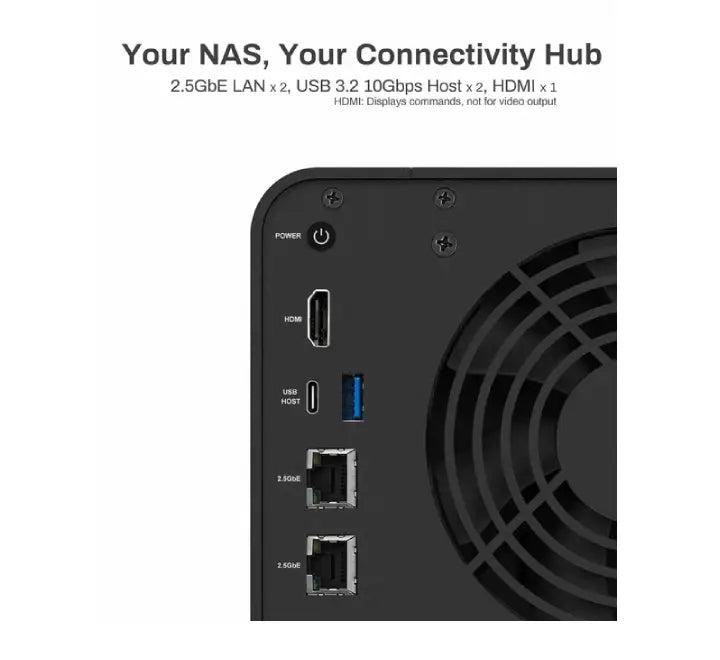

| Networking | 2 x 2.5GbE RJ-45 LAN Ports (Supports Link Aggregation / Up to 5Gbps) |
| USB Ports | 2 x USB 3.2 Gen 2 (10Gbps Type-A / Type-C) |
| RAID Modes Supported | TRAID, Single, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Operating System | TerraMaster TOS |
| Color | Black |
TerraMaster F4-424 Max Video Review
Frequently Asked Questions
What is the maximum storage capacity supported by the TerraMaster F4-424?
The TerraMaster F4-424 supports up to 88TB of raw internal storage (4 x 22TB drives). Total usable capacity varies based on your chosen RAID configuration (e.g., TRAID, RAID 5, or RAID 10).
Can I upgrade the RAM on the TerraMaster F4-424?
Yes. The unit ships with 8GB DDR5 4800MHz RAM pre-installed and includes a SODIMM slot that supports memory upgrades up to 32GB DDR5 non-ECC memory.
How does M.2 NVMe SSD caching improve NAS performance?
The two built-in M.2 2280 NVMe SSD slots allow you to set up read/write SSD caches or storage pools. This dramatically increases IOPS for database response speeds, file searches, and web application responsiveness.
What is TRAID and how does it compare to standard RAID?
TRAID (TerraMaster Flexible Array) automatically optimizes storage space, provides redundancy, and enables flexible expansion using hard drives of different capacities without wasting drive space like traditional RAID arrays.
Does the TerraMaster F4-424 support Docker and Virtualization?
Yes. Powered by the Intel N95 processor, the F4-424 natively supports Docker container deployment (via Portainer or Docker-Compose) and running virtual machines using VirtualBox within TOS.
