Description

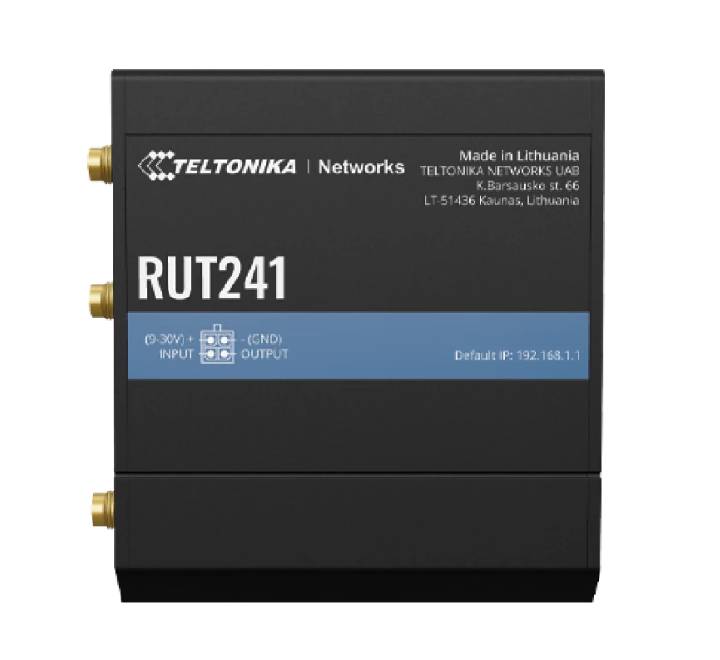

Teltonika RUT241 Industrial Cellular Router
- Brand: Teltonika
- Model: RUT241
- RUT241 INDUSTRIAL 4G eSIM™ ROUTER, CONNECTIVITY 4G LTE (Cat 4), 3G, 2G, ESIM™ Seamless connectivity with eSIM™ SGP.22, WI-FI, Wireless Access Point with Hotspot functionality, RMS For easy & convenient eSIM™ profile management
-
Mobile
- Mobile module: 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
- 3GPP Release: Release 10/11 depending on the hardware version
- Status: IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
- SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
- USSD: Supports sending and reading Unstructured Supplementary Service Data messages
- Black/White list: Operator black/white list (by country or separate operators)
- Multiple PDN: Possibility to use different PDNs for multiple network access and services
- Band management: Band lock, Used band status display
- SIM PIN code management: SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
- APN: Auto APN
- Bridge: Direct connection (bridge) between mobile ISP and device on LAN
- Passthrough: Router assigns its mobile WAN IP address to another device on LAN
-
Wireless
Wireless mode: 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA) - Wi-Fi security: WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
- SSID/ESSID: SSID stealth mode and access control based on MAC address
- Wi-Fi users : Up to 50 simultaneous connections
- Wireless Connectivity Features: Fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
- Wireless MAC filter: Allowlist, blocklist
- Wireless QR code generator :Once scanned, a user will automatically enter your network without needing to input login information
- TravelMate: Forward Wi-Fi hotspot landing page to a subsequent connected device
-
Ethernet
WAN: 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX - LAN: 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
- Network
Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing - Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
- VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
- Firewall: Port forward, traffic rules, custom rules, TTL target customisation
- Firewall status page : View all your Firewall statistics, rules, and rule counters
- Ports management : View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
- Warranty : 1 Year
