Description
Boost NAS Performance with the Synology M2D20 M.2 NVMe SSD Adapter Card
Supercharge your Synology NAS I/O performance and maximize your data storage efficiency. The Synology M2D20 is a high-speed M.2 SSD adapter card designed specifically to accelerate latency-sensitive applications like photo indexing, advanced file searches, and resource-heavy virtualization deployments. By shifting your caching needs to a dedicated PCIe expansion slot, you can reclaim your primary drive bays solely for bulk data storage.
Key Features & Benefits

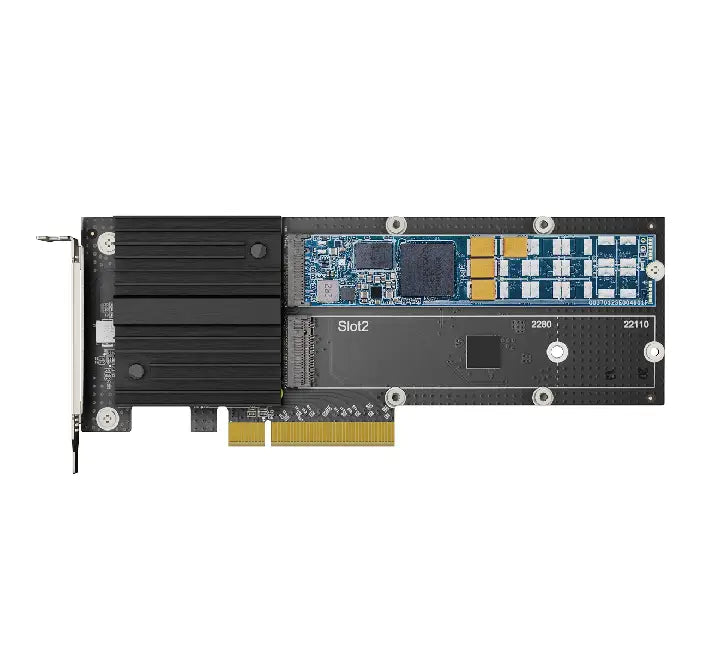

- Dual M.2 NVMe Slots: Features two dedicated M-key slots supporting both 2280 and 22110 form factor M.2 NVMe SSDs for rapid random I/O performance.
- Dedicated Cache Architecture: Free up your primary storage drive bays by offloading enterprise read/write cache to a dedicated PCIe card.
- High-Speed Host Interface: Utilizes a PCIe 3.0 x8 host bus interface to eliminate data bottlenecks and maintain optimal throughput.
- Streamlined Integration: Engineered to match perfectly with Synology SNV3000 series NVMe SSDs for enterprise-grade endurance, stability, and automated firmware updates.

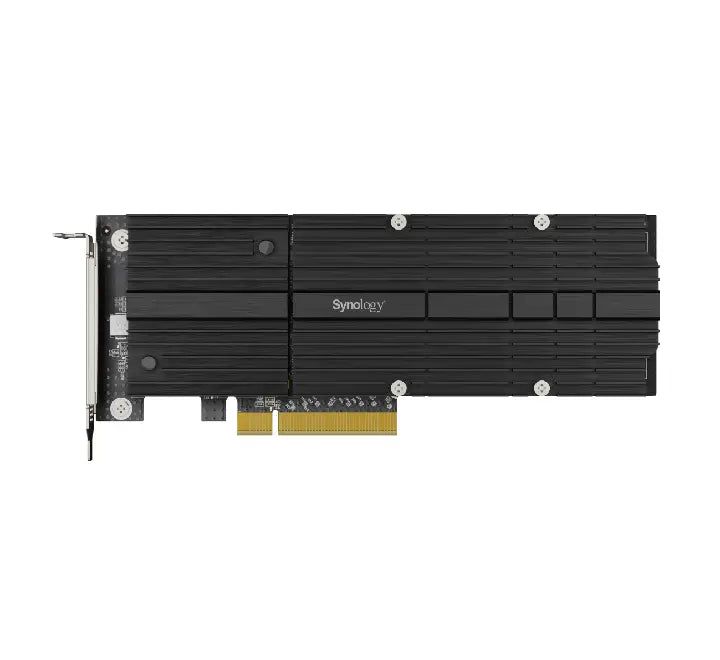

- Flexible Form Factor: Ships with both low-profile and full-height brackets to seamlessly fit into diverse RackStation and DiskStation enclosures.
Official Video Overview
See how integrating Synology M.2 NVMe SSDs into your workflow streamlines demanding enterprise workloads and optimizes storage caching.
Technical Specifications
| Specification Category | Details |
|---|---|
| Host Bus Interface | PCIe 3.0 x8 |
| Storage Interface | PCIe NVMe |
| Supported Form Factors | M.2 22110 / 2280 |
| Connector Type & Quantity | M-key, 2 Slots |
| Bracket Height | Low Profile and Full Height (Included) |
| Dimensions (H x W x D) | 71.75 mm x 181.9 mm x 15.8 mm |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Certification | FCC Class B, CE Class B, BSMI Class B, VCCI, RCM, RoHS Compliant |
| Warranty | 5 Years |
