Description

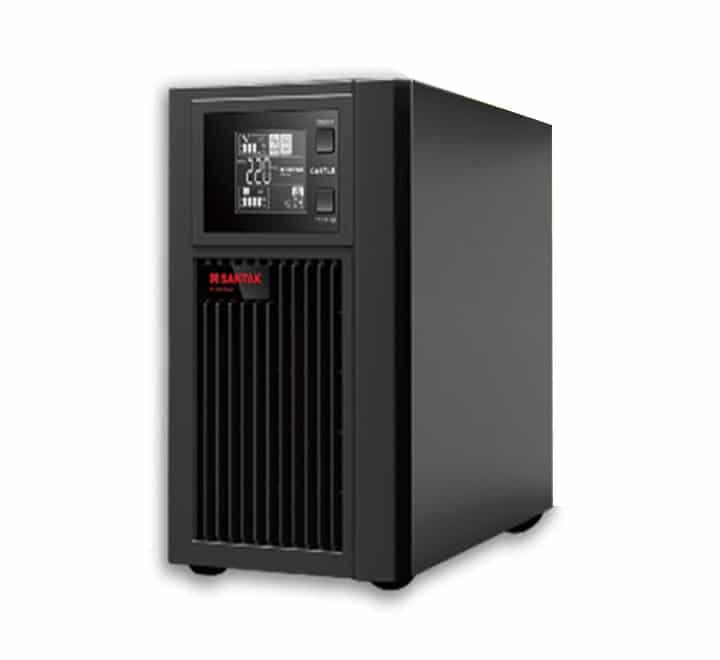

Defend your mission-critical network servers, telecommunication systems, and enterprise data centers against severe grid instability with the professional Santak Castle 2KS Online UPS (C2KS UNI). Built specifically as a "Long Backup" model, this high-performance tower system relies on external battery configurations, giving you the flexibility to customize extended runtimes that survive prolonged blackouts.
Utilizing high-frequency, true online double-conversion architecture, the C2KS UNI continuously filters and regenerates pure electrical power. Attached hardware remains completely isolated from spikes, surges, and brownouts, ensuring your operations remain up and running without interruption.
Key Features
- True Online Double-Conversion: Ensures absolute continuous power with a 0ms transfer time from utility mains to battery mode, safeguarding against data corruption and system crashes.
- Long-Backup External Architecture: Operates using a robust 48V external battery loop (external batteries required), allowing you to scale battery capacities tailored to your precise system runtime demands.
- High Power Density (1800W Output): Delivers a full 2000VA / 1800W load capacity with an optimized 0.9 output power factor, offering substantial actual wattage for multi-server rack setups.
- C2KS UNI Universal Sockets: Equipped with multi-standard Universal output receptacles on the rear panel, accommodating diverse regional plug types seamlessly without extra adapter blocks.
- Wide Input Voltage Window (100V – 300V): Tolerates deep voltage drops and extreme grid fluctuations without prematurely draining battery reserves, extending overall system battery lifespan.
- Smart LCD Wide-View Interface: Provides instant comprehensive system metrics, including load capacity percentages, battery power metrics, input/output voltage status, and system error indicators.
- Intelligent Network Expansion: Features an integrated slot supporting optional NMC (SNMP), CMC, or AS400 dry contact relay cards for remote network management and automated server shutdowns.
- Battery Type: External batteries required
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Brand & Model | Santak Castle Series — C2KS UNI (Tower Type) |
| Power Capacity | 2000 VA / 1800 Watts (Output Power Factor: 0.9) |
| UPS Topology | True Online Double-Conversion |
| Mains Input Voltage Range | 100 VAC – 300 VAC (Single Phase with Ground) |
| Input Frequency Range | 40 Hz – 70 Hz (Auto-Sensing, Generator Compatible) |
| Nominal Output Voltage | 220V / 230V / 240VAC (Tight ± 1% Regulation) |
| Output Waveform | Pure Sine Wave |
| Transfer Time | Mains to Battery: 0 ms | Inverter to Bypass: 4 ms (Typical) |
| Battery Type | External Batteries Required (Long Backup Model) |
| Rated Battery Loop Voltage | 48 VDC |
| Charging Current | High Capacity 6A Charger |
| Communication Slots | Intelligent Port for NMC, CMC, or AS400 Cards |
| Dimensions (W x H x D) | 102 x 327 x 390 mm |
| Net Weight | 6.4 kg (Excluding External Battery Bank) |
