Description
Scalable, Extended Power Protection for Critical Long-Run Demands
The Santak Castle 1K Long-Backup Online UPS (C1KS Uni) is an enterprise-grade uninterruptible power supply engineered specifically for environments requiring extended runtime during prolonged power outages. Unlike standard internal battery models, the C1KS architecture is built around a heavy-duty internal charger designed to connect seamlessly to external battery banks. Featuring true online double-conversion topology, it delivers an absolute 0ms transfer time and continuous pure sine wave power—perfect for safeguarding remote telecom stations, critical data networks, and medical diagnostic hardware from unpredictable grid fluctuations.
Key Features
- Scalable Long-Backup Architecture: Designed without internal batteries to allow custom configurations with high-capacity external battery banks, delivering hours of continuous backup time.
- High-Performance Charger: Equipped with an upgraded internal battery charging system that ensures rapid, safe replenishment of large external battery arrays.
- True Online Double-Conversion: Provides maximum isolation from grid anomalies like surges, dips, and harmonic noise, ensuring a clean, continuous 0ms transfer time.
- High Power Factor (0.9 Output): Delivers 900W of active, efficient power output to perfectly match the demands of modern cloud networking and server systems.
- Generator Compatibility & Wide Input Window: Operates smoothly within an extra-wide input voltage window (100–300VAC), accommodating fluctuations from unstable grids and standby generators.

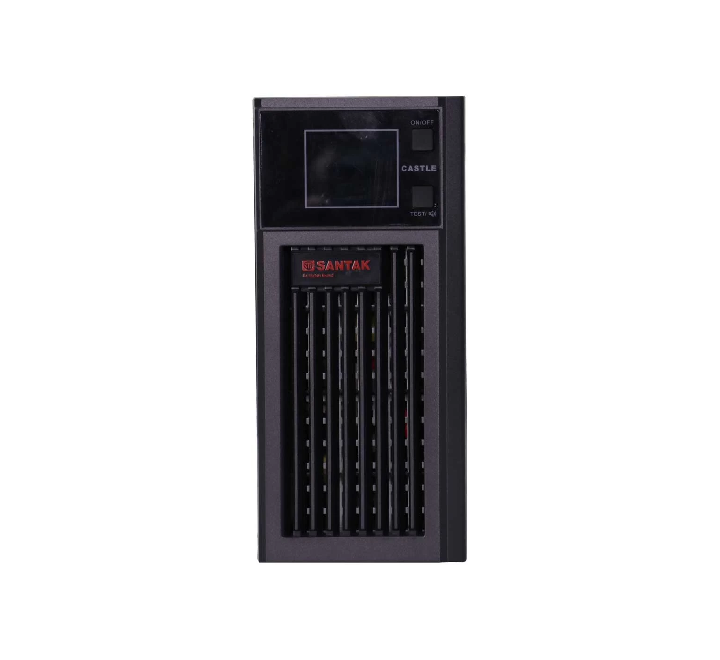

- Smart Real-Time LCD Interface: Crisp front panel screen offers instant monitoring of load capacity, input/output voltage levels, battery status, and operating conditions.
Technical Specifications
| Power Capacity & Input Specs | |
|---|---|
| Power Rating Capacity | 1000 VA / 900 Watts |
| Topology Type | True Online Double-Conversion |
| Input Voltage Window | 100 VAC ~ 300 VAC |
| Input Frequency Window | 40 Hz - 70 Hz (Generator Compatible) |
| Output & Battery Extension System | |
| Nominal Output Voltage | 220V / 230V / 240VAC (Regulated ± 1%) |
| Output Waveform | Pure Sine Wave |
| Transfer Time | Utility to Battery Mode: 0 ms |
| Battery Configuration | Long-Backup Model (C1KS): Requires External Battery Bank Connection (Nominal Voltage: 24VDC) |
| Internal Charging Capacity | Upgraded heavy-duty charger optimized for external long-run capacities |
| Physical Features & Ports | |

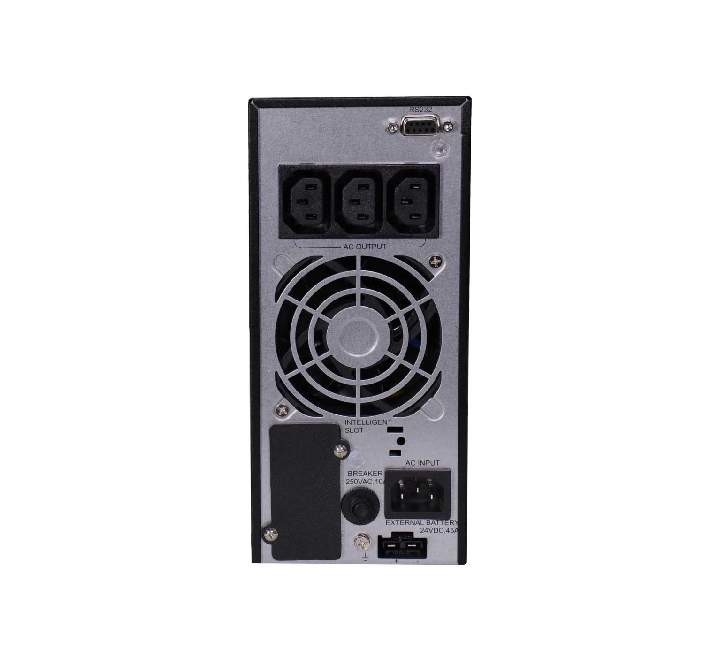

| Output Connections | Universal Compatible Outlets / IEC C13 Sockets |
| Smart Management Port | RS232 Port | Intelligent Slot for optional SNMP / Network Management Cards |
| Dimensions (W x D x H) | 144 x 356 x 228 mm |
| Net Weight | Approx. 4.3 kg (Lightweight due to external battery setup) |
