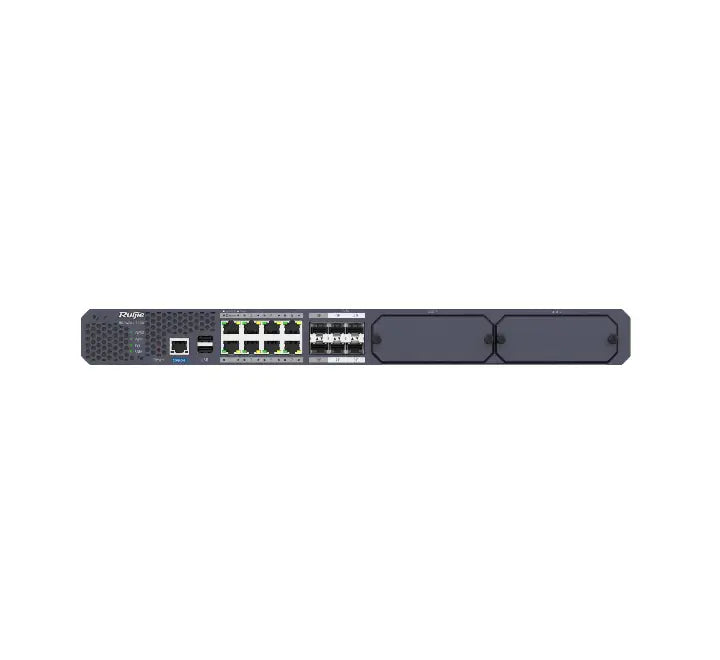

The Ruijie RG-WALL 1600-Z5100-S is a high-performance, cloud-managed Next-Generation Firewall (NGFW) designed to deliver robust security, high scalability, and seamless network protection for enterprise core networks, branch uplinks, government agencies, education, and healthcare environments. Powered by Ruijie's NTOS operating system and DPDK acceleration, this 1 RU rack-mount firewall offers up to 15 Gbps IPv4 throughput and features flexible performance scaling from 3 Gbps up to 10 Gbps NGFW performance via licenses.
Equipped with 4 x 10GE SFP+ high-speed optical ports, 2 x 1GE SFP ports, and 8 x 1GE RJ45 ports, the RG-WALL 1600-Z5100-S ensures ultra-fast network connectivity. It integrates advanced security functions—including Intrusion Prevention (IPS), Antivirus (AV), URL filtering, CPU-level hardware anti-DoS/DDoS protection, and an innovative Policy Simulation Space that eliminates risk during configuration updates.
Key Features
- High-Density Connectivity: Features 4 x 10GE SFP+ optical uplink ports, 2 x 1GE SFP ports, and 8 x 1GE RJ45 Ethernet ports for high-bandwidth enterprise routing.
- Scalable Performance Architecture: Base 3 Gbps throughput, expandable up to 10 Gbps via license upgrades (RG-WALL 1600-Z5100-S-1G-LIC) without swapping hardware.
- CPU-Level Hardware Anti-DoS/DDoS: Built-in dedicated anti-DDoS component directly on the CPU for robust protection against SYN, UDP, and ICMP flood attacks.
- Multi-Core Lock-Free Architecture: Eliminates CPU memory locking conflicts to ensure consistent performance during heavy traffic loads and deep packet inspection.
- Zero-Risk Policy Simulation Space: Test and verify new security policies in a simulated live environment before deploying them to prevent accidental downtime.
- Five-in-One Security Defense: Integrates IPS, Antivirus, Application Control, URL Filtering, and Threat Intelligence into a single management framework.
- Enterprise High Availability & Redundancy: Supports dual hot-swappable power supply modules and optional 1 TB SATA HDD expansion for local log retention.
- Free Cloud O&M & SSL VPN: Includes free SSL VPN support for up to 1,000 concurrent remote users and centralized cloud management via Ruijie Cloud / Reyee App.
Product Specifications
| Model | RG-WALL 1600-Z5100-S |
| Brand | Ruijie Networks |
| Fixed Ethernet Ports | 8 x 10/100/1000BASE-T Ports |
| Fixed SFP / SFP+ Ports | 2 x 1GE SFP Ports, 4 x 10GE SFP+ Ports |
| Management Ports | 1 x RJ45 MGMT Port, 1 x Console Port (RS-232), 2 x USB 2.0 |
| Firewall Throughput (IPv4 1518-byte) | 15 Gbps |
| Scalable Throughput Range | 3 Gbps (Default) to 10 Gbps (via Performance Licenses) |
| Concurrent TCP Sessions | 1,000,000 |
| New TCP Sessions / Second | 134,000 |
| IPsec VPN Throughput / Tunnels | 4 Gbps / 1,000 Gateway Tunnels |
| Concurrent SSL VPN Users | Up to 1,000 Users (Recommended Max) |
| Form Factor & Storage | 1 RU Rack-Mount | Supports optional 1 TB SATA HDD |
| Power Redundancy | 2 x Pluggable Power Modules (1 included, 1 optional for dual power) |
| Dimensions & Weight | 440 x 300 x 43.6 mm | 4.44 kg |
