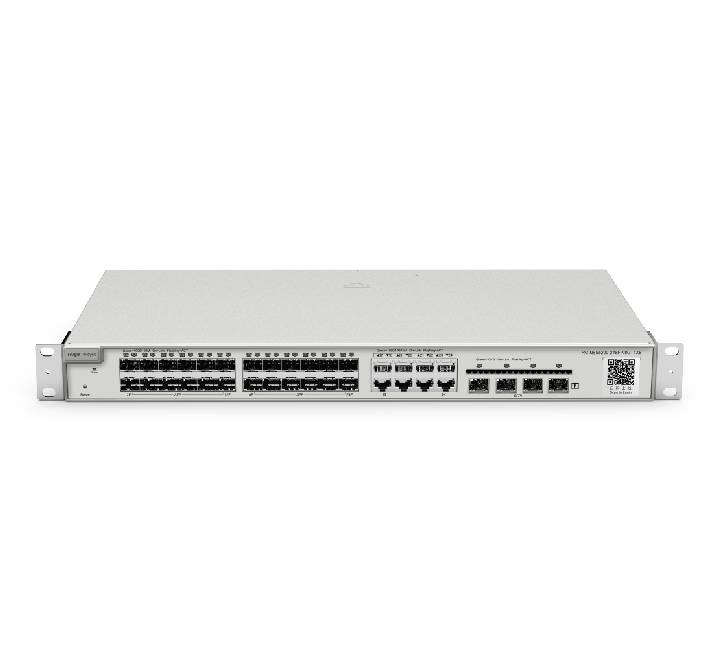

Ruijie Reyee RG-NBS5200-24SFP/8GT4XS Layer 3 Light Managed 24-Port Fiber Switch
Architect a resilient, high-speed backbone network for your business infrastructure with the Ruijie Reyee RG-NBS5200-24SFP/8GT4XS. This enterprise-class Layer 3 Light (L2+) managed non-PoE switch is specifically designed to meet the rigorous demands of fiber-to-the-desk links, high-density IP surveillance aggregation, and corporate network cores across Myanmar. Optimized for commercial deployments in Yangon, Mandalay, and emerging industrial zones, it handles massive data loads smoothly and without interruption.
This high-performance switch features 24 Gigabit SFP optical slots (including 8 shared 10/100/1000Base-T Combo ports) complemented by 4 dedicated 10-Gigabit SFP+ uplink ports. By offering a robust 128 Gbps switching capacity and 96 Mpps packet forwarding rate, the RG-NBS5200-24SFP/8GT4XS effectively prevents network bottlenecks at the core, facilitating ultra-fast inter-VLAN routing and reliable data backhaul to enterprise server rooms.
Key Features & Enterprise Advantages
- High-Speed 10G SFP+ Optical Uplinks: Equipped with 4 fixed 10Gbps SFP+ slots to allow high-bandwidth aggregation links to core network servers or neighboring switches.
- Versatile Combo Port Architecture: Combines 24 SFP fiber slots with 8 RJ45 Gigabit Ethernet combo interfaces, providing versatile deployment flexibility across copper and fiber network configurations.
- Advanced Layer 3 Routing Capabilities: Supports Static Routing, RIP, and OSPF routing protocols, allowing efficient traffic distribution and local network segmentation directly at the switch level.
- Robust 6KV Port Surge Protection: Built to endure unpredictable localized electrical fluctuations, the ±6 kV service port surge resistance reduces hardware vulnerability and ensures operational continuity.
- Free Lifetime Ruijie Cloud Ecosystem: Avoid recurring software license fees. Deploy, manage, monitor, and configure your entire system remotely using the Ruijie Cloud Web Console or Mobile App.
- Smart One-Step Auto-Networking: Discover, initialize, and deploy all connected Ruijie switches instantly by scanning a single QR code via the mobile application.
- Energy-Efficient, Silent Architecture: Features Energy-Efficient Ethernet (EEE) logic coupled with dual adaptive-speed cooling fans to drop noise levels down to 45 dB under typical office temperatures.
Official Technical Specifications
Ensure accurate project deployments with verified technical metrics sourced directly from official Ruijie Reyee distribution channels:
| Hardware & Performance Metric | Official Configuration Details |
|---|---|
| Model Designation | RG-NBS5200-24SFP/8GT4XS |
| Switching Type | Layer 3 Light (L2+ Managed) Non-PoE Switch |
| Total SFP Optical Ports | 24 x 1000Base-X SFP Slots |
| Gigabit RJ45 Ports | 8 x 10/100/1000Base-T Combo Interfaces |
| 10G Uplink Ports | 4 x 10GBase-R SFP+ Slots |
| Switching Fabric Capacity | 128 Gbps |
| Packet Forwarding Rate | 96 Mpps |
| MAC Address Table Size | 16,000 (16K) Entries |
| VLAN Support Range | 4094 Max VLANs, Voice VLAN, Port Isolation |
| Layer 3 Protocols | Static Routing, RIP v1/v2, OSPF v2, DHCP Server |
| Hardware Internals | 800 MHz Single-Core CPU | 512 MB RAM | 256 MB Flash Memory |
| Link Aggregation / Trunking | Static LAG, LACP Support (Up to 16 Layer 3 Aggregation Ports) |
| Surge Protection Rating | Ports: ±6 kV Common Mode | Power: ±6 kV Common/Differential Mode |
| Power Input & Max Draw | 100 V AC to 240 V AC, 50/60 Hz, 2A Max | Consumption: ≤ 41.8 W |
| Thermal Cooling System | 2 x Fixed Fans (Left-to-Right Airflow, Noise Level: 45 dB @ 25°C) |
| Chassis Dimensions & Build | 440 mm x 267.5 mm x 43.6 mm | 1U Rack-mountable Heavy-duty Steel Case |
| Device Net Weight | 3.35 kg (Without packaging materials) |
| Certifications & Standards | CE, FCC, IEC 62368-1, EN 55032, EN 55035, RoHS Compliance |
Why Network Engineers in Myanmar Specify Ruijie Reyee Switches
Unlike standard unmanaged or legacy CLI hardware that requires intensive onsite maintenance, the Ruijie Reyee NBS5200 lineup gives IT departments complete visibility over network topology via a single cloud portal. With its built-in hardware CPU protection policy, DHCP snooping, and broadcast storm suppression controls, your business network remains safe from internal loops and external intrusion threats.
Invest in business stability today with the Ruijie RG-NBS5200-24SFP/8GT4XS Managed Switch. Contact our local sales representatives for commercial project pricing, bulk wholesale distribution rates, and system integration consulting services throughout Myanmar.
