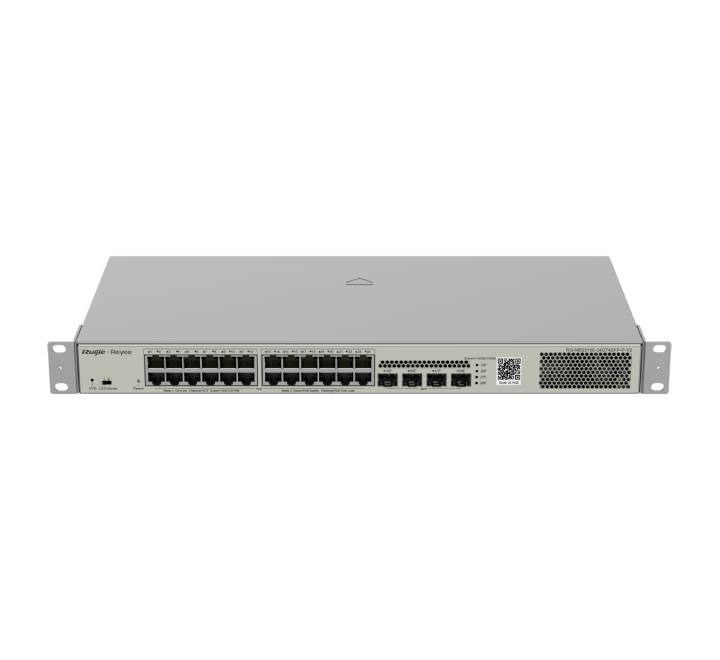

Ruijie Reyee RG-NBS3100-24GT4SFP-P | 28-Port Layer 2 Gigabit Managed Switch with 24x PoE+ (370W) & 4x SFP Uplinks
Empower your enterprise infrastructure, IP surveillance grid, and wireless AP network with the Ruijie Reyee RG-NBS3100-24GT4SFP-P Layer 2 Cloud Managed PoE Switch. Built specifically for medium-to-large business networks, commercial buildings, schools, hotels, and retail environments in Yangon, Mandalay, and across Myanmar, this 28-port rackmountable switch delivers non-blocking 56 Gbps switching capacity and 41.66 Mpps forwarding performance.
The RG-NBS3100-24GT4SFP-P features 24 x 10/100/1000Base-T PoE/PoE+ RJ45 ports backed by a heavy-duty 370W total PoE budget (up to 30W per port), plus 4 x 1GE SFP optical ports for long-distance fiber backbone uplinks. With intelligent IP camera recognition, PoE Watchdog auto-healing, 6 kV surge protection, and 100% free lifetime Ruijie Cloud management, it provides an enterprise-grade switching core with zero recurring software fees.
Key Features & Advantages
- 24 Gigabit PoE+ Ports + 370W Budget: All 24 RJ45 ports support IEEE 802.3af/at PoE/PoE+ standards, supplying up to 30W per port to power Wi-Fi 6 access points, IP CCTV cameras, and VoIP phones simultaneously.
- 4 Dedicated 1GE SFP Fiber Uplinks: Provides 4 Gigabit SFP slots for long-distance fiber optic connections to core switches or server rooms without sacrificing Ethernet ports.
- Smart IP Camera Recognition & CCTV Optimization: Automatically identifies connected IP cameras in security networks, preventing frame drops and streamlining surveillance deployment.
- Self-Healing PoE Watchdog: Automatically detects unresponsive IP endpoints or crashed cameras and reboots individual PoE ports to restore operation without manual technician site visits.
- Robust Electrical Protection (6 kV Surge): Features 6 kV surge protection on all Ethernet ports and power supply to protect network hardware from power spikes and lightning strikes common in Myanmar.
- Advanced L2 Network Policies: Supports VLAN configuration, Port Isolation, Link Aggregation (LACP), IGMP Snooping v1/v2, Loop Prevention (STP/RSTP), and ACL security rules.
- Free Lifetime Ruijie Cloud Management: Remotely monitor switch health, check real-time PoE power consumption, reboot ports, and configure VLANs via the Ruijie Cloud App or Web portal with no annual license fees.
Product Overview & Unboxing
Technical Specifications
| Model Name | Ruijie Reyee RG-NBS3100-24GT4SFP-P |
| Total Ports | 28 Ports (24x RJ45 Gigabit + 4x SFP Fiber) |
| PoE Output Ports | 24 x 10/100/1000BASE-T Ports (IEEE 802.3af/at PoE+) |
| PoE Power Budget | 370 W Total (Max 30 W per port) |
| SFP Optical Ports | 4 x 1000BASE-X SFP Uplink Slots |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.66 Mpps |
| MAC Address Table | 8,000 Entries |
| VLAN Capacity | 4,096 VLANs (Voice VLAN, Port VLAN) |
| Special Surveillance Features | IP Camera Recognition, PoE Watchdog, Flow Control |
| Surge Protection | Common Mode: 6 kV | Power Connector: 6 kV |
| Management Platform | Free Lifetime Ruijie Cloud App, Web GUI, SNMP |
| Form Factor / Installation | 19-inch 1U Rackmountable (Mounting Brackets Included) |
| Dimensions & Weight | 440 mm × 293 mm × 44 mm | 3.5 kg |
