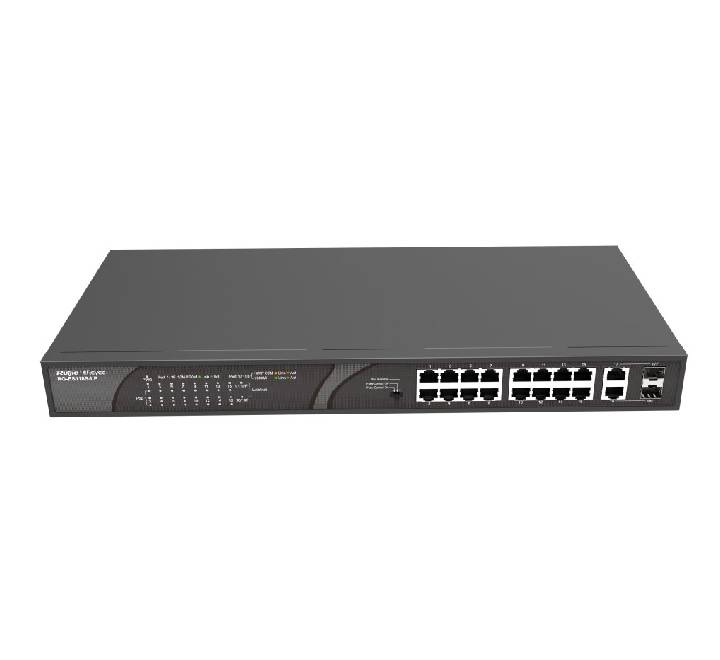

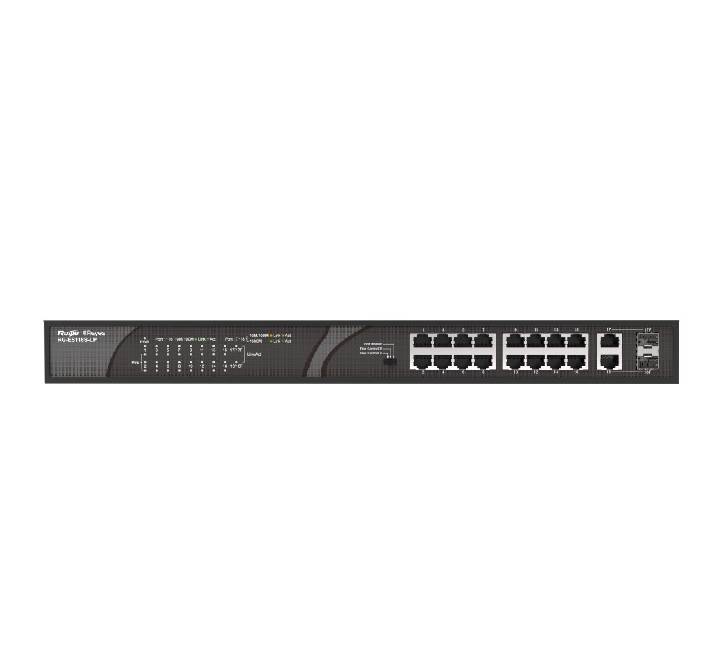

Ruijie Reyee RG-ES118S-LP 16-Port 10/100Mbps Unmanaged PoE+ Switch with 2 Gigabit Combo Uplinks
Empower your network architecture or security layout with the Ruijie Reyee RG-ES118S-LP, an enterprise-grade 16-port unmanaged desktop/rackmount switch purposefully engineered for video surveillance networks, IP telephony, and small business connectivity across Myanmar. If you are setting up network infrastructure for residential estates, corporate workspaces in Yangon, or production warehouses in Mandalay, this durable metal switch balances zero-configuration deployment with enterprise stability.
The RG-ES118S-LP features 16 down-link 10/100 Mbps PoE+ Fast Ethernet ports backed by an adaptive 120W total power budget. To eliminate communication bottlenecks when routing backhaul data to an NVR or main router, it features 2 Gigabit RJ45/SFP combo uplink ports. With built-in automated hardware flow control and an expanded memory buffer packet capacity, it maintains consistent high-definition IP camera streaming without frames dropping or video lag during traffic spikes.
Key Features & Performance Advantages
- Intelligent Power Over Ethernet Management: Offers 16 ports supporting IEEE 802.3af/at standard delivery, pushing up to 30W on an individual port for automated power provisioning to PTZ cameras and VoIP lines.
- Dual Gigabit Combo Uplinks: Incorporates 2x 10/100/1000Mbps RJ45 copper ports multiplexed with 2x SFP slots, providing high-speed physical uplink versatility over optical or copper lines.
- Surveillance-Optimized Buffer: Engineered with a premium system cache size to manage simultaneous data surges from high-definition surveillance devices seamlessly.
- One-Click Port Isolation Mode: Hardware toggle isolates downstream ports 1 through 16 from communicating with each other, mitigating broadcast storms while bolstering overall subnet security.
- Long-Range CCTV Deployment Support: Extends physical data link range and PoE delivery up to 250 meters, eliminating the requirement for extra midspan extenders in expansive building deployments.
- Unique Cloud Monitoring Feature: Even as an unmanaged plug-and-play switch, it automatically pushes its status data into your active Ruijie Cloud topology when linked alongside at least one managed Ruijie gateway or switch.
- Fanless Architecture & Metal Chassis: Features a rugged, heavy-duty industrial casing designed for passive cooling, ensuring silent and dependable 24/7 operations inside tight server enclosures.
Official Technical Specifications
Deploy your hardware securely with technical data confirmed directly from official Ruijie Reyee distribution lines:
| Hardware Specification Metric | Official Configuration Details |
|---|---|
| Model Number | RG-ES118S-LP |
| Switch Type | Surveillance Unmanaged PoE+ Switch |
| PoE Downlink Ports | 16 x 10/100Base-TX Ports (Ports 1 to 16) |
| Uplink Interface Ports | 2 x 10/100/1000Base-T RJ45 / SFP Combo Ports |
| Total PoE Power Budget | 120 Watts (Supports 802.3af / 802.3at PoE+) |
| Switching Fabric Bandwidth | 7.2 Gbps |
| Packet Forwarding Rate | 5.36 Mpps |
| MAC Address Table | 8,000 (8K) Entries |
| Switching Architecture | Store-and-Forward Technology with Auto-MDI/MDIX |
| Hardware Protections | ±6 kV Common-Mode Surge Protection on Ports |
| Power Input Supply | 100 V AC to 240 V AC, 50/60 Hz Universal Input |
| Maximum Overall Draw | ≤ 148W (With full loading PoE deployment attached) |
| Thermal Design & Acoustics | Fanless design for zero operational environmental noise |
| Operating Temperature Range | 0°C to 45°C (32°F to 113°F) |
| Chassis Housing Layout | 440 mm x 208 mm x 44 mm (Standard 1U Form Factor) |
| Physical Weight | 3.4 kg (Bare product without box) |
| Compliance Certifications | CE, RoHS, EN/IEC 62368-1 (Product Safety Regulation) |
Why Local System Integrators Prefer Ruijie Surveillance Switches
Cheap unmanaged switches frequently suffer from system crashes or frame dropping whenever multiple active camera feeds hit night-vision activation thresholds simultaneously. The Ruijie Reyee ES100 series solves this issue by optimizing internal component standards across capacitors and power modules, creating resilient protection boundaries against unexpected line spikes common in remote regions.
Streamline your infrastructure investments today using the Ruijie RG-ES118S-LP 16-Port PoE+ Switch. Connect with our technical procurement staff to get dedicated wholesale quotes, equipment stock reservations, and expert network engineering installation services throughout Myanmar.
