Description

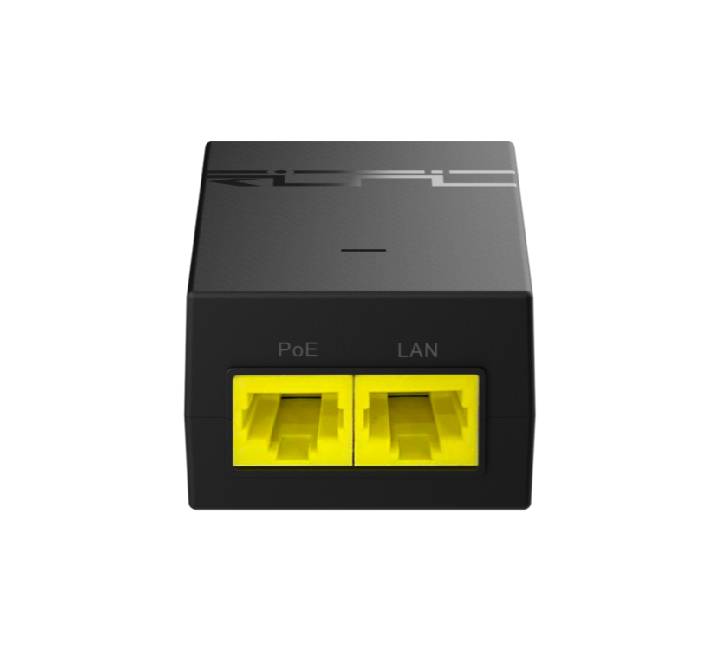

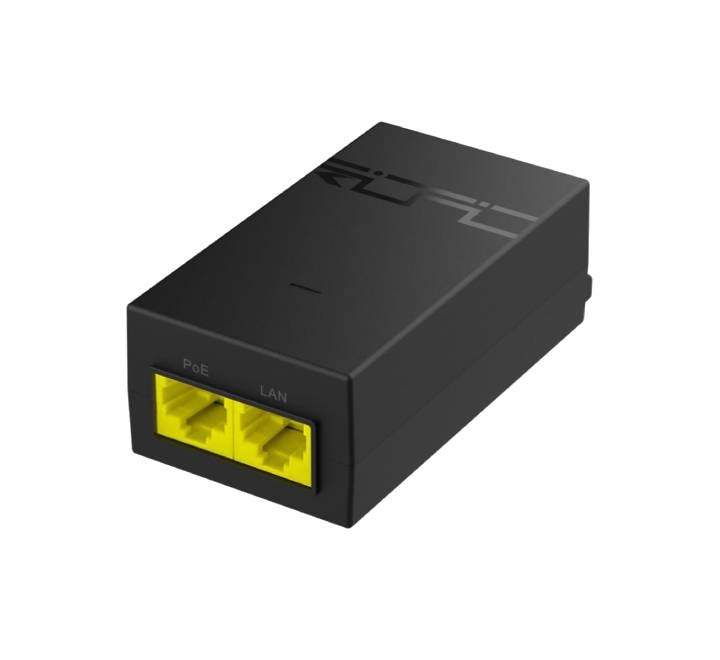

Ruijie Reyee RG-PoE-AF15 1-Port Gigabit Passive PoE Injector (52V 15.6W)
Deliver reliable power and ultra-fast data transmission over a single Ethernet cable with the Ruijie Reyee RG-PoE-AF15. Designed for seamless integration with Reyee wireless access points (APs), IP surveillance cameras, and VoIP network hardware, this high-performance Gigabit PoE adapter operates at a 52V DC output delivering up to 15.6W of continuous power.
Equipped with a 1000Base-T Gigabit LAN port, the RG-PoE-AF15 guarantees full network speed without bottlenecking your connection. Its ultra-compact, lightweight frame and high surge discharge protection make it an essential component for residential, office, and commercial networking setups across Myanmar.
Key Features
- Gigabit Speed Transmission (1000Base-T): Supports up to 1 Gbps high-speed data transfer to maintain zero speed loss for connected devices.
- Stable 52V DC / 15.6W Output: Provides continuous, high-efficiency power ideal for ceiling, wall, and outdoor Ruijie access points.
- Enhanced Surge Protection: Built-in 2000A (8/20 µs) maximum discharge current protection guards against electrical spikes and power fluctuations.
- 2-Pair Powering Architecture: Efficiently routes power over Pins 4,5 (+) and Pins 7,8 (-) over standard UTP Ethernet cabling up to 100 meters.
- Wide Operating Temperature (-10°C to +45°C): Engineered to handle tough climate conditions reliably indoors and in semi-exposed environments.
- Compact Plug-and-Play Design: Ultra-lightweight 95g footprint allows clean, space-saving mounting behind desks or server racks.
Technical Specifications
| Category | Specification |
|---|---|
| Model Version | RG-POE-AF15 |
| PoE Output & Voltage | Passive PoE, 52V DC @ 0.3A (15.6W Max) |
| Network Interface | 1x 1000Base-T RJ45 Data IN, 1x 1000Base-T RJ45 PoE OUT |
| Input Power Rating | 100-240V AC @ 50/60Hz, Max 0.5A |
| Power Pin Out | 2-Pair Powering: Pins 4, 5 (+) & Pins 7, 8 (-) |
| Surge Protection | Max Discharge Current: 2000A (8/20 µs) |
| Operating Temperature | -10°C to +45°C (14°F to 113°F) |
| Dimensions & Weight | 92 x 46.5 x 29.5 mm | 95 grams |
