Official Ruijie Reyee RG-ES220GS-P-V2 20-Port Gigabit Smart Cloud-Managed PoE Switch in Myanmar. Specifically engineered for commercial CCTV surveillance and high-density enterprise networks. Features 16× Gigabit PoE+ ports with a 250W power budget, 2× Gigabit copper uplinks, 2× SFP optical slots, and free lifetime cloud management. Backed by a 3-Year Official Warranty with fast nationwide delivery in Yangon, Mandalay, and all states.
Enterprise-Grade Smart CCTV & Cloud-Managed Switch for Myanmar Businesses

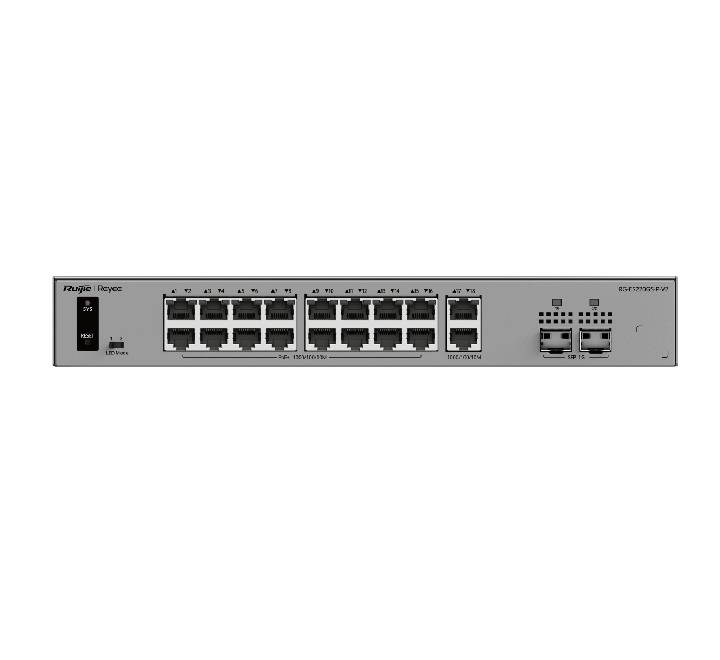

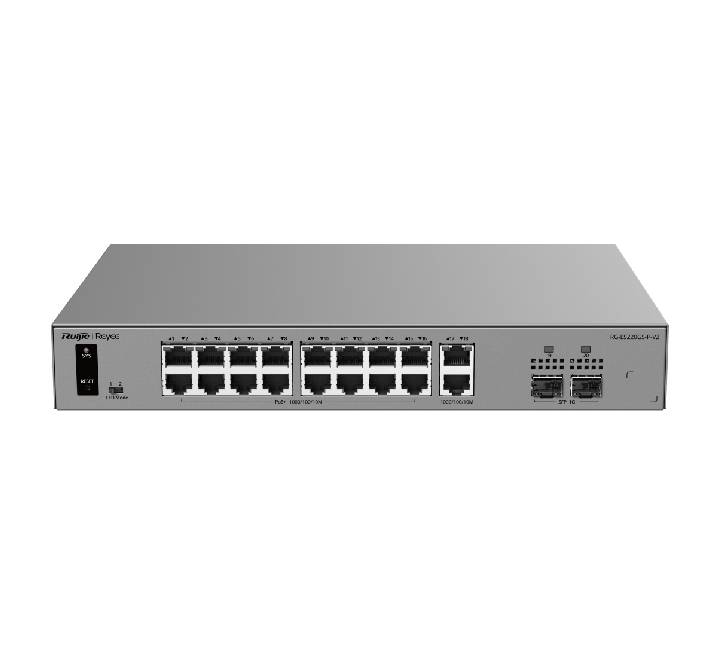

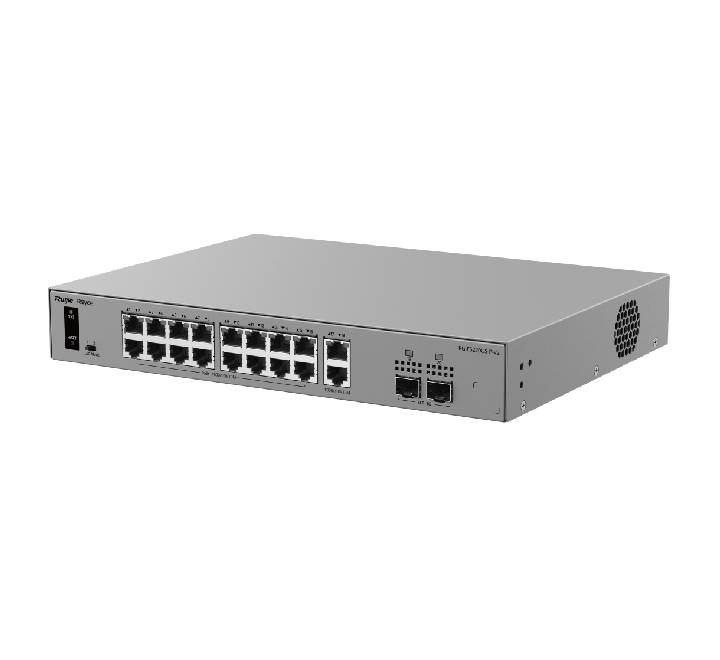

The Ruijie Reyee RG-RAP72Pro / RG-ES220GS-P-V2 is a next-generation 20-port Layer 2 smart cloud-managed PoE switch designed for surveillance networks, IP cameras, VoIP systems, and office IT infrastructure. Outfitted with 16 Gigabit PoE+ ports (802.3af/at), 2 Gigabit RJ45 uplink ports, and 2 Gigabit SFP optical fiber ports, it delivers seamless long-distance backhaul connectivity and an expansive 250W PoE budget.
Equipped with intelligent CCTV features like automatic IP Camera (IPC) recognition, PoE Watchdog for automated frozen camera reboots, and ERPS ring network protocol support, the RG-ES220GS-P-V2 guarantees non-stop security and zero downtime for businesses across Myanmar.
Key Features & Key Highlights
- High-Capacity 20-Port Architecture: Includes 16× 10/100/1000BASE-T PoE+ ports, 2× 10/100/1000BASE-T RJ45 uplink ports, and 2× 1GE SFP optical uplink ports for flexible fiber runs.
- 250W Total PoE Power Budget: Delivers up to 30W per port (IEEE 802.3af/at standard), easily powering high-draw PTZ IP cameras, Wi-Fi 6 access points, and VoIP phones.
- Smart IP Camera Recognition & Auto-Topology: Automatically identifies connected CCTV cameras, displays exact camera status in your topology, and sends instant push alerts if a camera goes offline.
- Perpetual PoE & PoE Watchdog: Automatically detects frozen or unresponsive IP cameras and power-cycles individual ports to reboot devices without disrupting the rest of the network.
- 2× SFP Fiber Ports for ERPS: Supports Ethernet Ring Protection Switching (ERPS) for rapid link recovery (<50ms) and reliable long-distance fiber inter-building connections.
- Automatic Loop Prevention: Keeps the core network online even if a local network loop occurs in an office or building installation.
- Lifetime Free Ruijie Cloud Management: Configure VLANs, reboot ports, monitor real-time traffic, and handle maintenance remotely via the free Ruijie Cloud App or Web GUI anytime, anywhere.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Model Name | Ruijie Reyee RG-ES220GS-P-V2 |
| Device Type | 20-Port Layer 2 Smart Cloud-Managed PoE Switch |
| Port Count | 16× 10/100/1000M PoE/PoE+ RJ45, 2× 10/100/1000M RJ45 Uplinks, 2× 1GE SFP Slots |
| PoE Standard & Budget | IEEE 802.3af / 802.3at | 250 Watts Total PoE Budget |
| Switching Capacity | 40 Gbps |
| Forwarding Rate | 29.76 Mpps |
| MAC Address Table | 8,000 Entries |
| CCTV Camera Limit | Up to 80 Cameras (2MP H.265) or 40 Cameras (4MP H.265) |
| Surge Protection | Common Mode 4kV (Service Port) / 6kV (Power Connector) |
| Form Factor & Cooling | 19-inch 1U Metal Rack-mount | Built-in Auto-Speed Fan (<40 dB) |
| Dimensions & Weight | 300 mm × 223 mm × 43.6 mm | 2.12 kg |
| Warranty | 3 Years Official Ruijie Warranty |
Why Buy Ruijie Reyee Equipment From ICT.com.mm in Myanmar?
- 100% Guaranteed Genuine Product: Direct official channel stock with local hardware replacement support.
- 3-Year Official Myanmar Warranty: Protect your network investment with real local warranty service.
- Fast Nationwide Express Delivery: Same-day dispatch in Yangon and Mandalay, with secure freight shipping to all states and divisions.
- Free Technical Consultation: Need assistance setting up Ruijie Cloud App or VLAN configuration? Our certified network engineers are here to assist.
