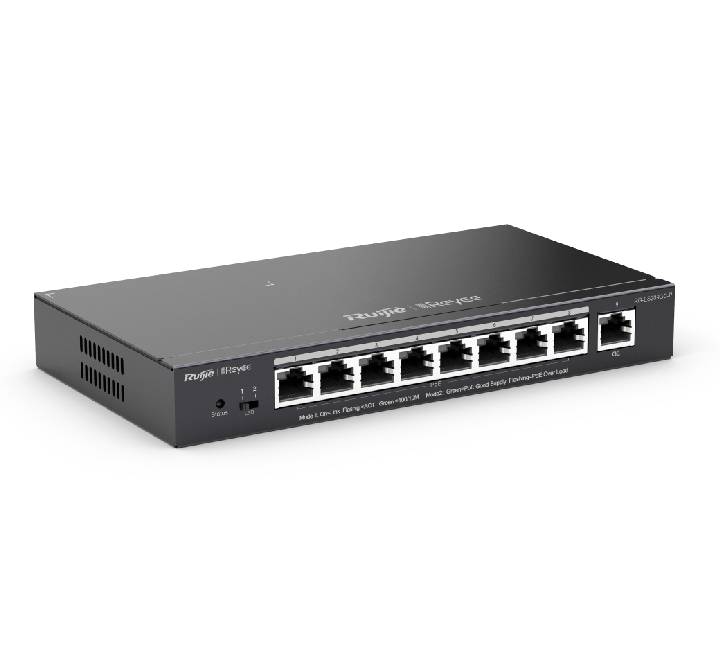

Upgrade your surveillance or business network setup with the Ruijie Reyee RG-ES209GC-P, a high-performance 9-Port Gigabit Smart Cloud Managed PoE Switch built specifically for heavy-duty security and CCTV infrastructure. Ideal for businesses, offices, and retail deployments across Myanmar, this L2 smart switch combines enterprise-grade stability with seamless remote monitoring without complex configurations.
Equipped with 8 dedicated PoE/PoE+ ports delivering up to 30W per port and a robust 120W total power budget, the RG-ES209GC-P ensures consistent power and ultra-fast data transmission for high-resolution IP cameras, NVRs, and wireless access points.
Why Choose Ruijie Reyee RG-ES209GC-P for Your Network?
- Intelligent IP Camera & NVR Recognition: A game-changer for CCTV setups. The switch automatically identifies IP cameras and configures tailored parameters to prioritize video traffic, drastically reducing screen stutter, video loss, and configuration delays.
- Automatic Loop Prevention: Network loops can paralyze entire office or surveillance infrastructures. The built-in automatic loop prevention mechanism actively detects faults and isolates loops to secure uninterrupted service continuity.
- Free Lifetime Cloud Management: Say goodbye to on-site troubleshooting. Monitor your network topology, manage port statuses, and restart frozen IP cameras remotely anytime, anywhere via the free Ruijie Cloud App.
- Silent Fanless Metal Casing: Engineered with a compact, heavy-duty steel chassis and a fanless natural cooling layout, this desktop-mount switch runs completely silent while maintaining optimal operating temperatures.
Technical Specifications
Review the full technical specifications for the Ruijie Reyee RG-ES209GC-P Layer 2 Smart Managed PoE Switch below:
| Parameter | Specification Details |
|---|---|
| Model Number | RG-ES209GC-P |
| Total Network Ports | 9 x 10/100/1000Base-T (Gigabit Ethernet) |
| PoE/PoE+ Ports | 8 Ports (Ports 1 to 8) |
| PoE Standard | IEEE 802.3af / IEEE 802.3at (Adaptive Technology) |
| Total PoE Budget | 120W Max Capacity (Up to 30W per port) |
| Switching Capacity | 18 Gbps |
| Packet Forwarding Rate | 13.4 Mpps |
| MAC Address Table | 4,000 entries |
| Maximum VLANs Supported | 16 (IEEE 802.1Q VLAN) |
| Surge Protection | ±4 kV (Service Port Common Mode) |
| Cooling Mechanism | Fanless Design (Natural Convection Cooling) |
| Dimensions (W x D x H) | 202 mm x 108 mm x 28 mm |
| Warranty | Official 3-Year Hardware Warranty |
