Secure your business infrastructure with the Ruijie Reyee RG-ES126S-LP V2 24-Port Unmanaged PoE Switch. Engineered for premium IP surveillance and enterprise networks across Myanmar, this upgraded V2 rackmount switch delivers 24 Fast Ethernet PoE+ ports and 2 Gigabit uplink ports (including 1 SFP Combo slot). Featuring a resilient 180W total power budget and hard-wired flow control, it provides seamless high-definition video streaming and network stability for hotels, factories, offices, and retail complexes in Yangon and Mandalay.

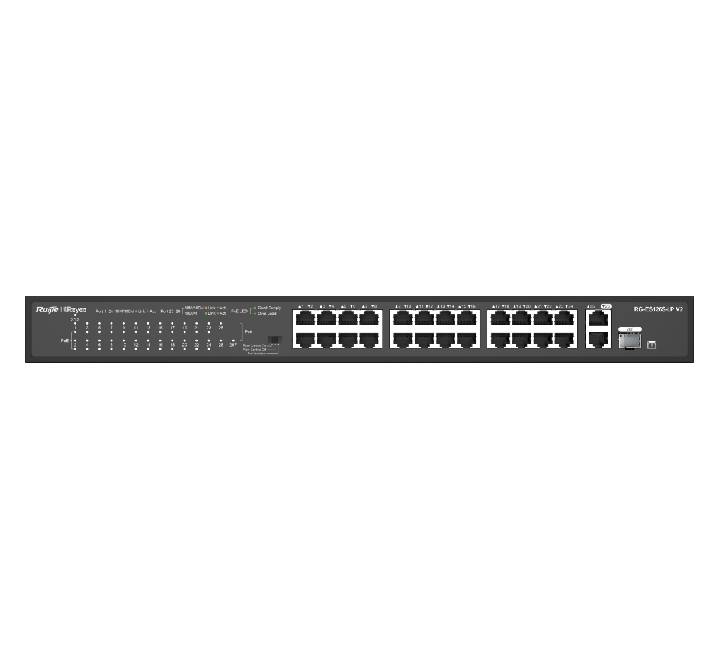

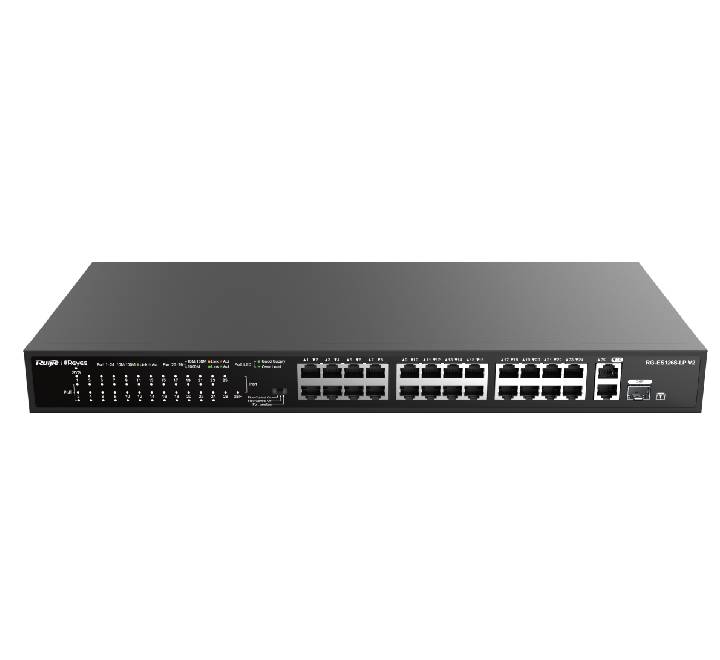

Ruijie Reyee RG-ES126S-LP V2: High-Reliability Cloud-Visible PoE Switch
The Ruijie Reyee RG-ES126S-LP V2 is a generation-defining unmanaged switch that bridges the gap between plug-and-play simplicity and modern monitoring demands. Outfitted with Ruijie's innovative "Cloud-Visible" architecture, it allows network administrators to view live topology maps, track power usage, and monitor port health remotely via the free Ruijie Cloud App. Encased in a ruggedized industrial steel 1U rackmount frame, the V2 variant utilizes an optimized large memory buffer to prevent frame-loss and pixelated streaming lags from your security cameras.
Key Features & Network Infrastructure Benefits
- 24-Port PoE+ Capacity with Dual Gigabit Uplinks: Offers 24 10/100 Mbps RJ45 ports featuring IEEE 802.3af/at auto-negotiation, plus 2 high-speed 10/100/1000 Mbps uplink ports (including 1 SFP/RJ45 combo port) for high-bandwidth fiber or server integrations.
- Intelligent PoE Power Management: Allocates up to 30W per individual port across a total pool of 180W. Built-in smart power prioritization ensures that critical endpoints remain powered even during sudden network consumption spikes.
- Unmanaged Plug & Play with Cloud Monitoring: Requires zero complex programming or IP address setups on-site. Simply mount it and connect it to any managed Ruijie device on the network to unlock complete, remote app-based cloud visibility.
- Enterprise-Grade Buffer Memory: Features an optimized hardware configuration with store-and-forward switching models. This accommodates continuous, heavy packet bursts from high-resolution 4K IP security cameras without dropping data streams.
- 6kV Lightning & Power Surge Shielding: Specially built to survive Myanmar's erratic power grids and severe monsoon weather. Industrial internal protection circuits shield both the internal motherboard and your downstream devices.
- One-Click Hardware Port Isolation (VLAN): Includes an integrated physical toggle switch on the faceplate to instantly activate port isolation. This stops malicious local broadcast storms and enhances data security between client nodes.
Comprehensive Technical Specifications
Review the exact hardware metrics and architecture layout for the Ruijie Reyee RG-ES126S-LP V2 Switch:
| Parameter | Technical Specification Details |
|---|---|
| Model Name | RG-ES126S-LP V2 |
| Layer/Switch Type | Unmanaged (With Ruijie Cloud-Visible Monitoring Support) |
| Downlink Interfaces | 24 x 10/100Base-TX Ports (PoE/PoE+ Compliant) |
| Uplink Interfaces | 2 x 10/100/1000Base-T Ports (Includes 1 x SFP Combo Port) |
| Switching Capacity | 8.8 Gbps |
| Packet Forwarding Rate | 6.55 Mpps |
| MAC Address Table Size | 8,000 (8K) Entries |
| PoE Standard Formats | IEEE 802.3at (PoE+) / IEEE 802.3af (PoE) |
| Maximum Total PoE Budget | 180 W |
| Per-Port Maximum Supply | Up to 30 W per Port |
| Switching Engine Model | Store-and-Forward Technology |
| Hardware Features Built-in | Port Isolation Toggle, Auto MDI/MDIX, Flow Control, Extended Range Mode |
| Surge Protection Certification | 6 kV Port-to-Port / Ground Protection Shielding |
| Cooling System Setup | Internal forced air cooling (Fan Supported) |
| Power Supply Adapter Type | Internal Power Supply (100 V AC to 240 V AC, 50/60 Hz, 4A) |
| Max Power Consumption | ≤ 220 W (Under absolute full hardware and PoE load) |
| Mean Time Between Failures (MTBF) | > 200,000 Hours |
| Dimensions & Standard Profile | 440 mm x 208 mm x 44 mm (Standard 19-Inch 1U Rackmount Configuration) |
| Net Structural Weight | 3.0 kg (Device Body Only) | 3.5 kg (With complete retail kit) |
