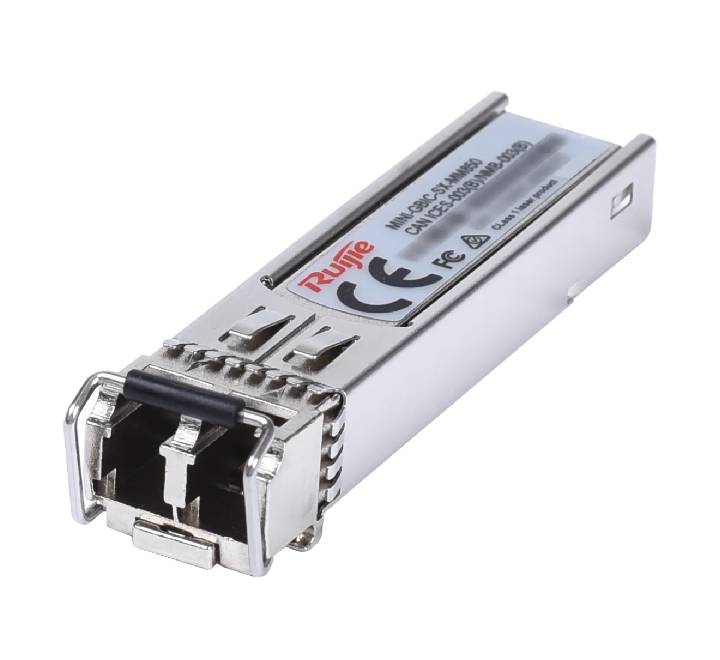

High-Efficiency Local Core Networking: Ruijie Mini GBIC SX MM850 Multi-Mode SFP Module
Power your localized data linkages, server racks, and campus networks with the high-reliability Ruijie Mini GBIC SX MM850 Duplex LC MMF Optical Transceiver Module. Engineered explicitly for high-density corporate offices, institutional data rooms, and network backbones across Myanmar, this hot-pluggable Small Form-Factor Pluggable (SFP) module delivers high-bandwidth Gigabit connectivity over short-range fiber runs.
Whether you are linking core layer-2 managed switches inside a corporate tower in Yangon or setting up safe server farm arrays in Mandalay, the Ruijie MINI-GBIC-SX-MM850 provides exceptional packet delivery with low latency. Built to conform directly to IEEE 1000BASE-SX international transmission profiles, this module interfaces immediately with your enterprise hardware ecosystems without complicated driver provisioning.
Key Structural Features & Corporate Advantages
- Optimized Short-Range Fiber Performance: Specially built for multi-mode fiber (MMF) topologies, carrying up to 1.25 Gbps line speeds across distances of up to 550 meters over standard 50/125µm cabling configurations.

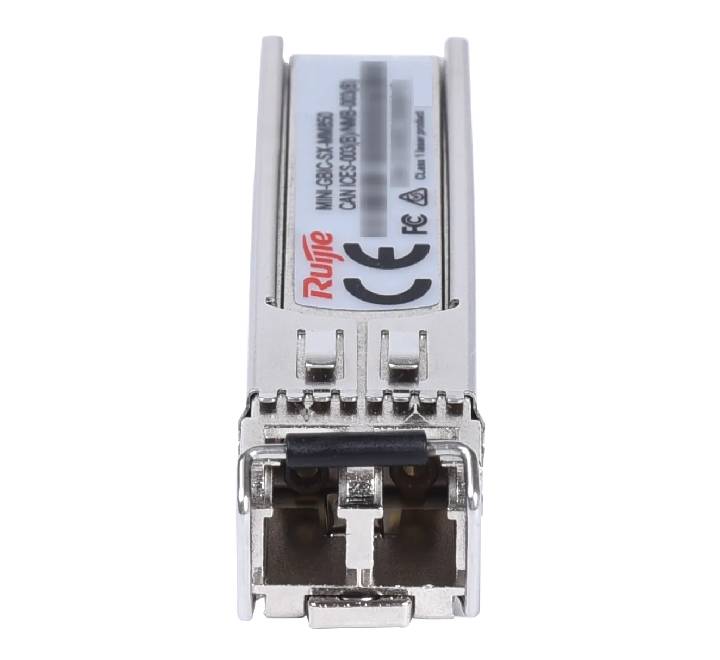

- Standard Duplex LC Connector Ports: Designed with an aligned dual LC plug structure to match high-density data room environments, minimizing link insertion loss while establishing physical connection stability.
- Hot-Swappable MSA Design Footprint: Zero network interruption. Complying with universal SFP Multi-Source Agreement (MSA) metrics, network administrators can insert, test, or swap out modules instantly without shutting down active switch racks.
- Advanced Digital Diagnostic Monitoring (DDM): Take full control of physical parameter tracing. Real-time feedback lines monitor active module operating temperatures, laser supply voltages, bias current loops, and active Rx/Tx optical power.
- Industrial Heat Control Architecture: Built inside an impact-resistant, heat-dissipating zinc-alloy casing designed to handle ambient operating variations up to 70°C while drawing less than 1.0 Watt of total electricity.
Official Comprehensive Technical Specifications
Review the verified structural data sourced directly from official international Ruijie networking hardware engineering blueprints:
| Hardware Parameter | Official Factory Specifications |
|---|---|
| Manufacturer Brand | Ruijie Networks / Reyee Series |
| Factory Model Designation | MINI-GBIC-SX-MM850 |
| Hardware Form Factor | SFP (Small Form-Factor Pluggable Mini-GBIC) |
| Maximum Data Rate | 1.25 Gbps (Gigabit Ethernet Line Speed Support) |
| Cabling Media Compatibility | Multi-Mode Fiber (MMF) 50/125µm or 62.5/125µm core size |
| Port Connector Geometry | Duplex LC Port Configuration |
| Target Link Distance Reach | Up to 550 Meters over OM2 Multi-Mode Fiber runs |
| Laser Optical Wavelength | 850 nm Infrared Center Wavelength |
| Transmitter Laser Core Type | VCSEL (Vertical-Cavity Surface-Emitting Laser Array) |
| Receiver Element Core Type | PIN Photodiode Integration |
| Maximum Power Consumption | Less than or equal to 1.0 Watt (≤ 1.0W) |
| DDM / DOM Functionality | Yes Fully Supported (Digital Diagnostic Monitor Feedback) |
| Laser Safety Standard | Class 1 Laser Product (FDA / EN 60825 Compliant Safety) |
| Regulatory Standards Met | IEEE 802.3z, SFF-8472, SFF-8431, RoHS Compliant Architecture |
| Operating Temperature Enclosure | 0°C to 70°C Case Range (32°F to 158°F) |
| Physical Chassis Size | 68 mm x 14 mm x 8.5 mm (Standard Mini-GBIC Structural Factor) |
Secure Genuine Enterprise Network Sourcing
Maintain proper network health across your operations. Avoid the performance drops, data sync issues, or permanent component burnout caused by unverified white-label clones or used, grey-market imports. We source directly from official, authenticated Ruijie product links to supply 100% genuine, factory-sealed SFP components. Your institutional purchases come with an active local hardware guarantee, verifiable inventory allocation, and rapid priority shipping across Yangon corporate networks.
