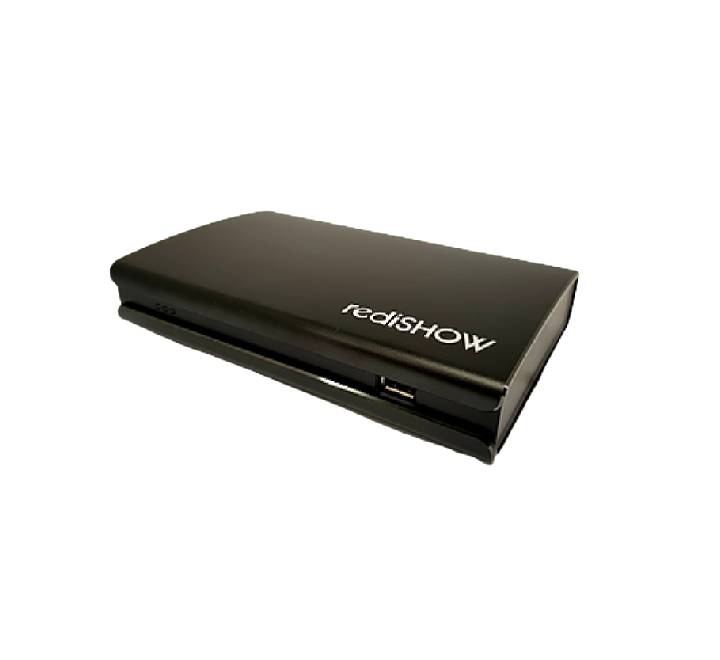

RediSHOW OD-002 Wireless Presentation System

Transform your huddle spaces, meeting rooms, and classrooms into modern collaboration hubs with the RediSHOW OD-002 Wireless Presentation System. Designed for seamless Bring Your Own Device (BYOD) environments, this system lets users instantly share content from laptops, tablets, and smartphones without messy cable setups or complicated software installations.

Key Features

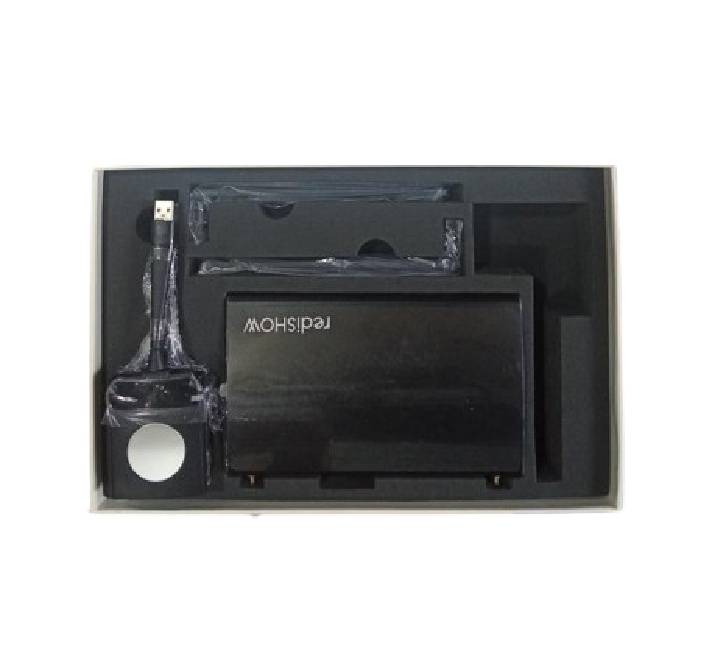

• Redishow OD002 Base Unit+USB-A Button Pod ( 1unit)

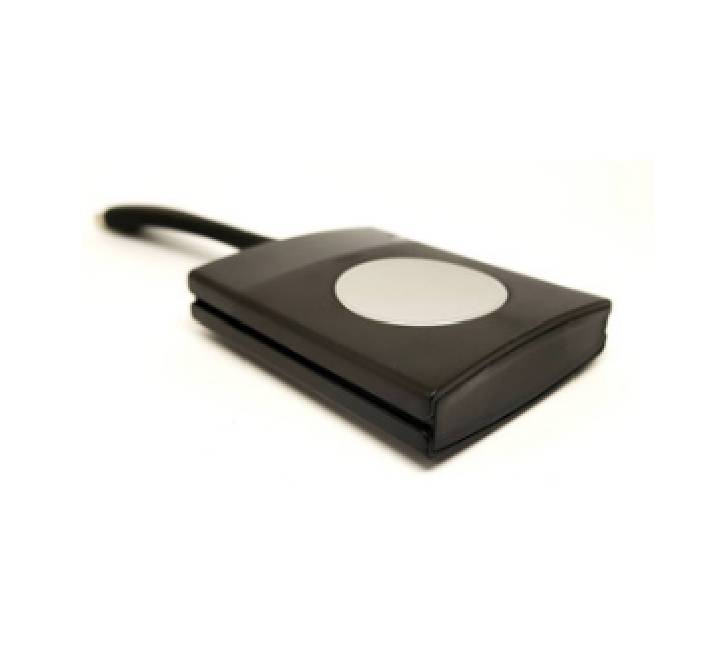

• Plug-and-Play Simplicity: Simply plug in the included rediPod USB sender button and click to instantly mirror your screen onto the main display.
• Multi-User Collaboration: Supports up to 4 simultaneous split-screen displays, empowering teams to compare content and collaborate dynamically.
• Cross-Platform Compatibility: Fully compatible with Windows, macOS, iOS (via native AirPlay), and Android devices for ultimate versatility.
• Flexible Display Outputs: Features both HDMI and VGA video outputs supporting up to 1080p input resolution and smooth 30 fps performance.
• Enterprise Security & Control: Equipped with secure WPA2-PSK encryption, access point mode, and centralized management app capabilities for IT administrators.
• OS supported: Win 7/8/8.1/10 32, 64 bits

• Mac OS X 10.10, 10.11 & 10.12 above
  (iPhone Display)

• Android 4.0 above

• iOS 10,11 above

• Frame Rate:Up to 30 fps

• Output Resolution: HDMI 1920x 1200

• Input Resolution: Up to 1920 x 1080

• Video Out: HDMI, VGA output

• Audio Out: HDMI, 3mm Audio Jack

• Maximum on Display: 4

• Maximum standby users:32

• Access Point Mode: Supported

• IEEE: 802.11n/ 802.11ac

• Wireless Speed: Up to 867 Mbps

• WiFi Range : 30m

• Encription: WPA2-PSK

• Frequency Band: 2.4GHz & 5GHz

• Temperature: Working +5~ +40 Degree C

• Warranty: 1 Year

• Power Consumption: Operation 20 W (Max 35W)

• Size Hx Wx D: 188mmx 152mmx 34mm

• Weight: 622g
• H/W Specification
  HDMIx 1 , VGAx 1
  LAN Port 10/100/1000 x 1
  3.5mm Audio Jack x 1
  USB port x 1
  USB Sender Dongles x 2
• NEW EXPERIENCE IN MEETING SPACE
• Plug in the rediPod USB dongle,projects your presentation in front of all participants, sharing professional contents becomes the trend of meeting space. rediShow provides you the unparalleled experiences in totally new user experiences

Technical Specifications
