Description

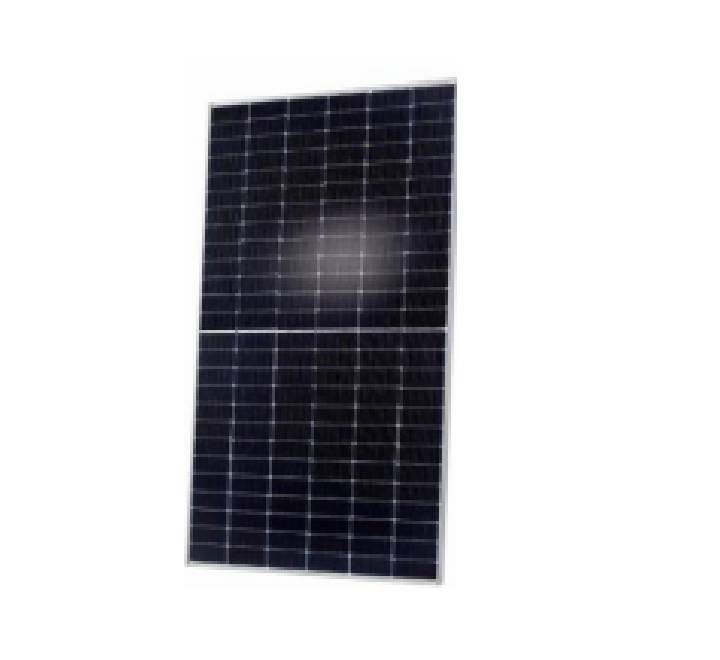

Qcell 585W Monocrystalline Solar Panel
- Rated Power :585W
- Power Tolerance :0+5W
- Temperature Coefficient Pmax:-03.4
- Voc: -0.27
- Weight :34.8 Kg
- Solar Panel Aesthetics
- Cell Colors :Black
- Frame Colors:Black
- Backsheet Colors:Black
- Physical Characteristics
- Cell Type:Bifacial Duo
- Panel Dimensions:2416mmL*1134mmW*35mmD
- Product Certifications
- Certifications Received :IEC61215
- IEC61730
- Mechanical Specification
- Format:2462 mm x 1134 mm x 30 mm (including frame)
- Front Cover:2 mm thermally pre-stressed glass with anti-reflection technology
- Back Cover:2 mm semi-tempered glass
- Frame:Anodised aluminium
- Cell:6 x 26 monocrystalline Q.ANTUM solar half cells
- Junction box:53-101mm x 32-60mm × 15-18mm
- Protection class IP67, with bypass diodes
- Cable:4 mm² Solar cable; (+) ≥750mm, (-) ≥350mm
- Connector:Staubli MC4-Evo2, Hanwha Q CELLS HQC4, IP68
- Electrical Characteristics
- Power at MPP (P mpp) W:585
- Short Circuit Current (I sp) A:13.72
- Open Circuit Voltage (I mpp) A:53.74
- Current at MPP (V mpp) V:14.25
- Efficiency :≥21
- Normal Operating Conditions
- Power at MPP (P mpp) W:440.5
- Short Circuit Current (I sp) A:11.05
- Open Circuit Voltage (I mpp) A:50.67
- Current at MPP (V mpp) V:10.3
- Efficiency :42.79
- Warranty;12Years
