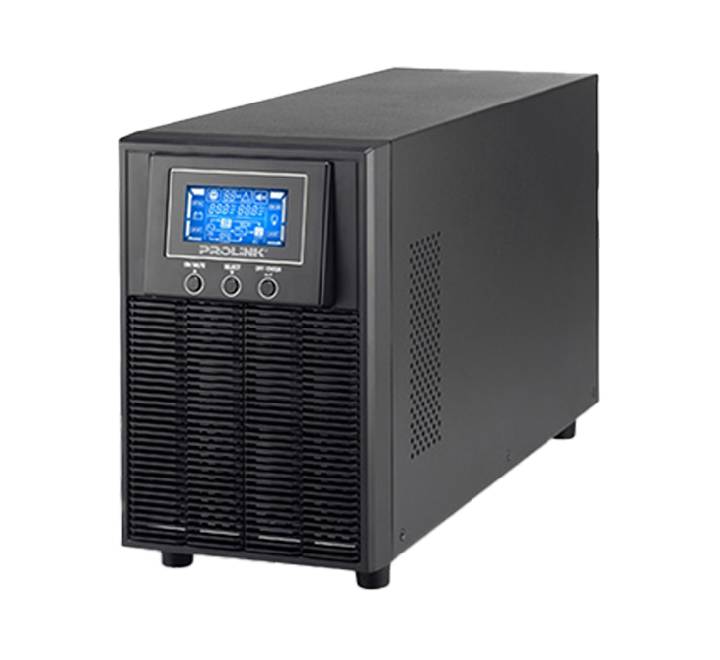

Prolink PRO802ES 2KVA/1800W Online UPS

• Brand: PROLiNK
• Model: PRO802ES
• 2KVA/1800W
• 12V/7Ah
• PHASE: Single phase with ground
• Capacity: 2000 VA / 1800 W
• Warranty : 2 Years

INPUT

• Nominal Voltage: 200/208/220/230/240 VAC

• Voltage Range : 110 - 300 VAC ± 5 % at 50% load
  160 - 300 VAC ± 5 % at 100% load
• Frequency Range: 40 Hz ~ 70 Hz
• Power Factor: ≧ 0.99 @ Nominal Voltage (100% Load)

• THDI: ≦ 5% @100~130VAC or 205-245VAC
  THDU < 1.6% @ input and full linear load condition with battery fully charged

OUTPUT

• Output Voltage: 200/208/220/230/240 VAC

• AC Voltage Regulation (Batt. Mode): ± 1%
• Frequency Range (Synchronized Range): 47~53 Hz or 57~63 Hz
• Frequency Range (Batt. Mode): 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz
• Current Crest Ratio: 3:1
• Harmonic Distortion : ≦2 % THD (Linear Load) ; ≦ 4 % THD (Non-linear Load)
• AC Mode to Battery Mode: Zero
• Inverter to Bypass: 4 ms (Typical)

• Waveform (Batt. Mode): Pure Sinewave

EFFICIENCY

• AC Mode: 91%
• ECO Mode: 97%
• Battery Mode: 89%

BATTERY

• Battery Type: 12 V / 7 Ah
• Numbers: 6
• Typical Recharge Time: 4 hours recover to 90% capacity
• Charging Current (max.): 1.5 A
• Charging Voltage: 82.1VDC ± 1%

INDICATORS

• LCD: UPS Status, Load Level, Battery Level, Input/Output Voltage, Discharge Timer, Fault Conditions

ALARM

• Battery Mode: Sounding every 5 seconds
• Low Battery: Sounding every 2 second
• Overload: Sounding every seconds
• Fault: Continuously sounding

PHYSICAL

• Dimension D x W x H (mm): 421×190×318
• Weight (Kgs): 25.8

ENVIRONMENT

• Humidity: 20-95 % RH @ 0- 40°C (Non-condensing)
• Noise Level: Less than 50dB @1Meter

MANAGEMENT

• Smart RS-232 / USB: Supports Windows ® 2000/2003/XP/Vista/2008, Windows ® 7/8/10, Linux and MAC
• Optional SNMP: Power management from SNMP manager and web browser
