Description

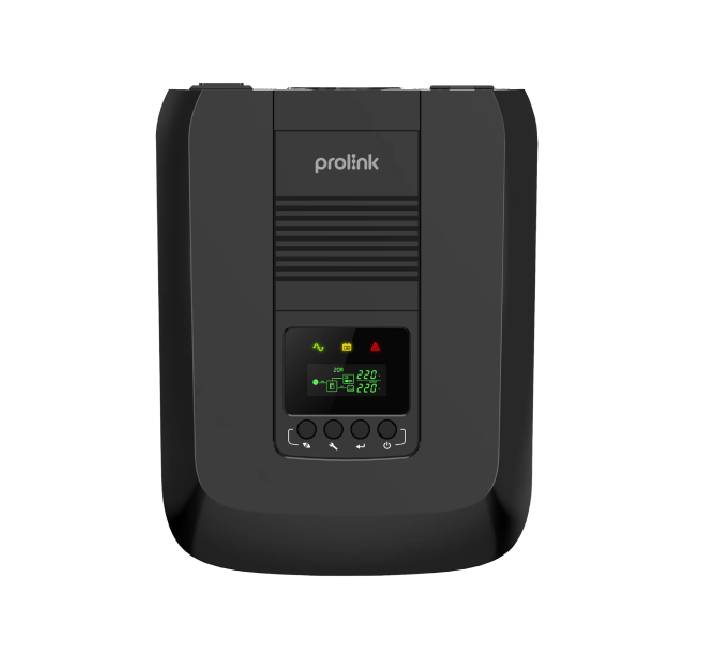

Prolink IPS 2400VA 1800Watts (IPS2202)
- Brand: Prolink
- New Item Code: PL0070099
- Capacity: 2400VA/1800W
- Input voltage: 220-240VAC
- Input voltage range: 170-280VAC (narrow range setting)
- 90-280VAC (wide range setting)
- Input Frequency: 50/60Hz Auto Sensing
- Output voltage: 230VAC
- Transfer time : 10-20ms
- Output Efficiency: AC mode: >95%
- Battery mode: >80%
- AC Battery Charging current: 10A/15A/20A (selectable)
- Nominal DC Voltage: 24VDC
- Maximum Battery Capacity: 200Ah
- Alarm: High temperature - Sounding every 0.5seconds
- Low Battery - Sounding every 2 seconds
- Overload - Sounding every 0.5 seconds
- Faulty - Continuously sounding
- LCD Display: Input voltage, output voltage, load level, battery level, overload and fault alarm
- LED Display
- Line mode 1 (charge current > 3A): Green Flashing
- Line mode 1 (charge current < 3A): Green Lighting
- Off mode Charging: Green Flashing
- Battery Mode: Yellow Lighting
- Fault : Red Lighting
- Overload: Red Flashing
- Selectable voltage range
- Auto restart and recharge upon AC recovery
- Narrow/wide input range selection
- LCD Display
- Warranty: 2 Years
