Description

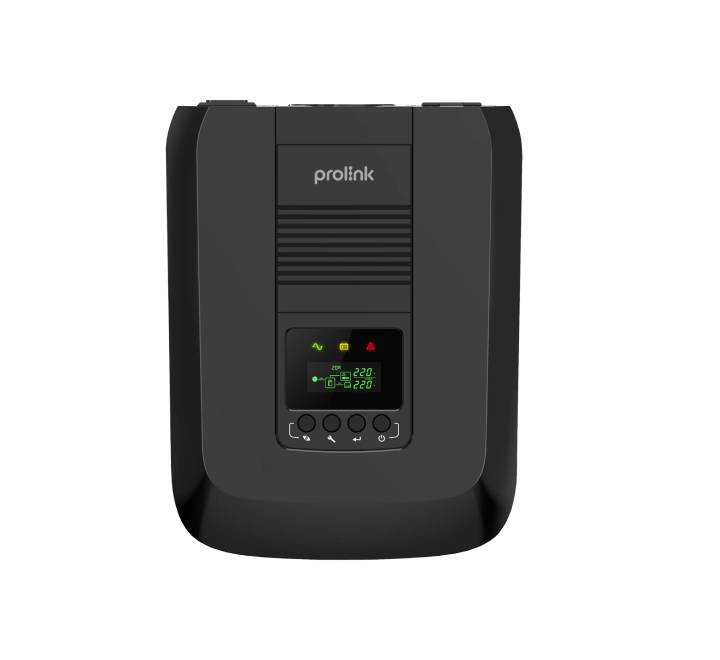

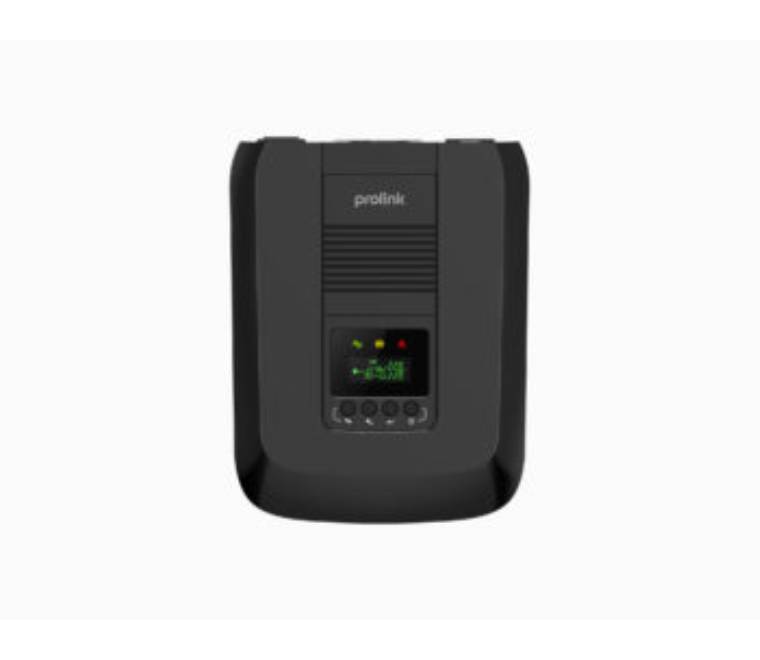

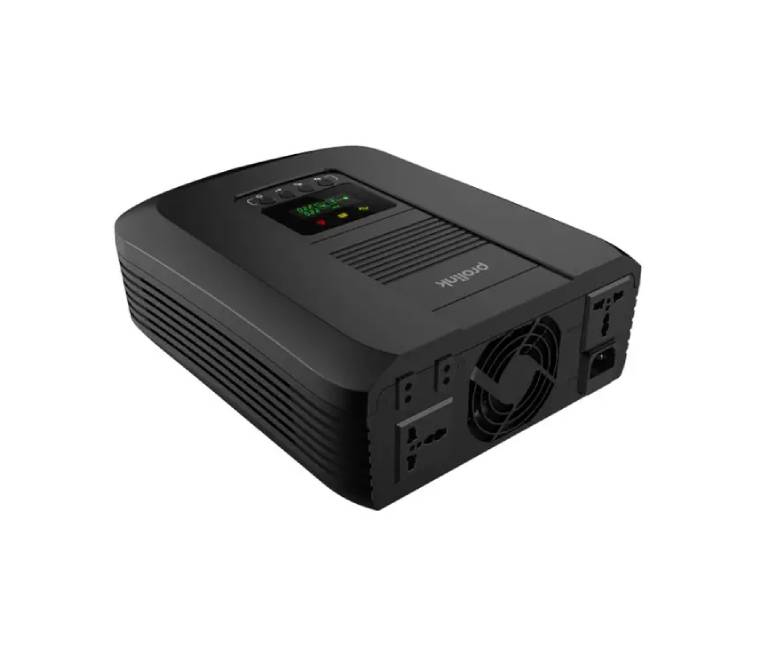

Prolink IPS 1200VA 1000Watts Inverter (IPS1202)
- Brand: Prolink
- Capacity: 1200VA/1000W
- Battery Voltage (Nominal): 12VDC
- LINE MODE
-
Input
- Normal Voltage:220~240Vac
- Voltage Range:170~280Vac(for narrow range setting)
- Normal Frequency: 90~280Vac(for wide range setting)
- Voltage Range 170~280Vac(for narrow range setting)
-
Output
- Voltage: Following the Utility
- Frequency: Following the Utility
- Output Waveform: Following the Utility
- Efficiency : >95%(full R load,battery full charged)
- Transfer Time: 15-20ms Typical,40ms max
- BACKUP MODE
-
Output
- Voltage: 230VAC(+10%/-18%)
- Frequency: 50Hz or 60Hz(Auto detection)
- Output Waveform: Simulated Sine Wave
- Effciency: >80%
- Overload Protection: 1min@ >110%,20s @>120%,0s@>150%
- Protection : Discharge,over-charged,over-loading,over-temperature,short-circuit protection
-
LED Display
- LCD Display: Input Voltage, Output Voltage,
- Load level, Battery level and Fault alarm
-
PHYSICAL
- Dimension W x H x D: 259mm(W)* 98mm(H) *283mm(D)
-
BATTERY
- Charging Algorithm:3-step charging
- Charging Current: 10A/15A/20A(default)/25A selectable
- Float Charge Voltage: 13.7V ± 2%
- Overcharge Protection : 16V ± 2%
- Warranty : 2 Years
