Description

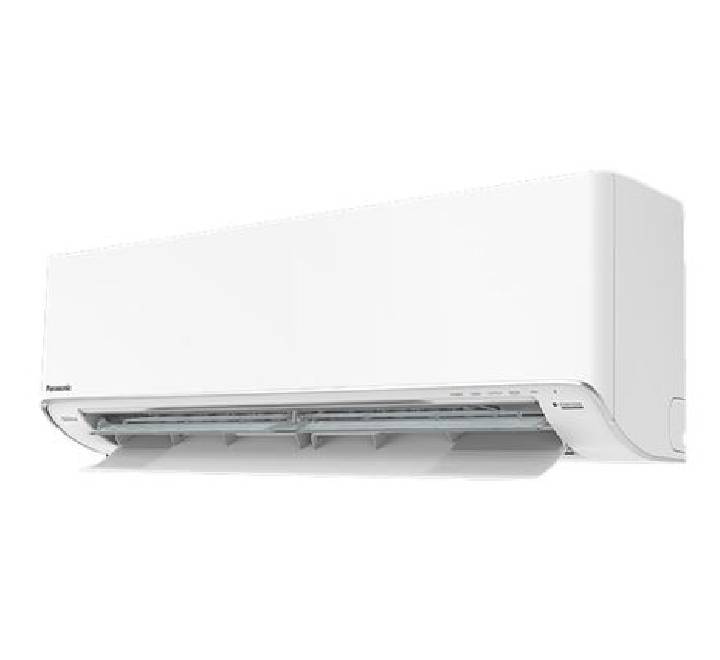

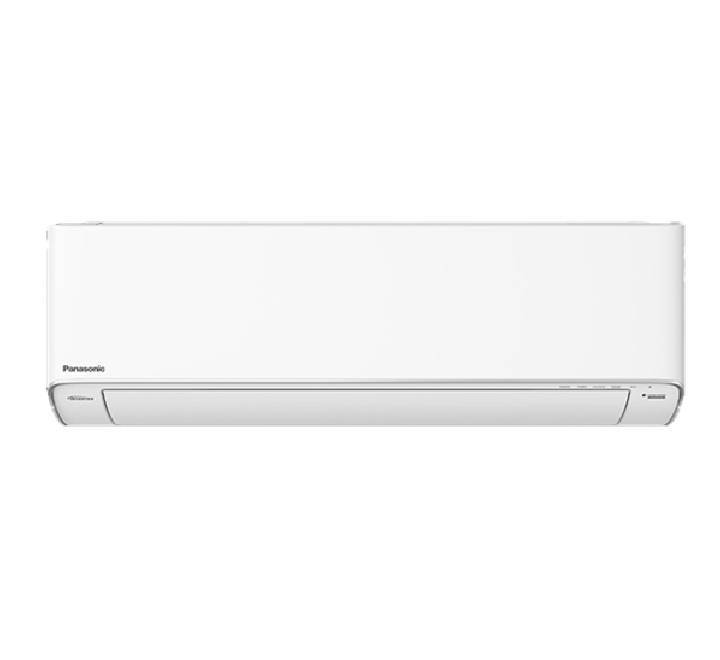

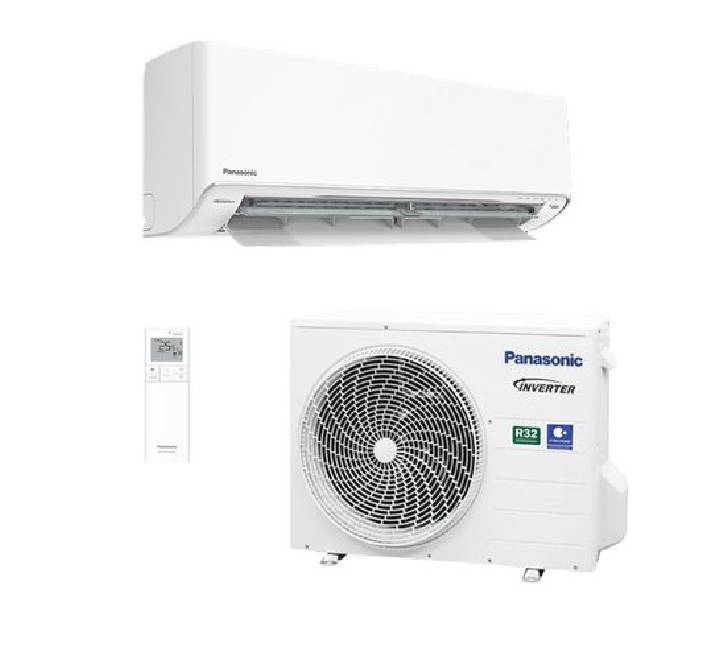

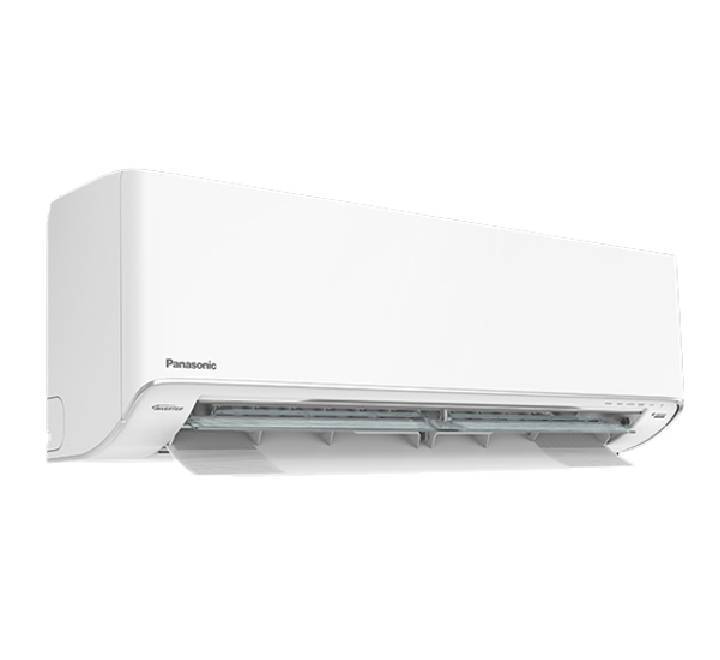

Panasonic CS/CU-XU24AKH 2.5HP X-Premium Inverter Air Conditioner
- Brand : Panasonic
- Model No : CS/CU-XU24AKH
- Cooling Capacity (min-max) (kW) : 6.60 (1.12-7.18) kW
- Cooling Capacity (min-max) (Btu/h) : 22,500 (3,820-24,500) Btu/h
- EER (min-max) (Btu/hW) : 12.23 (15.28-11.95) Btu/hW
- EER (min-max) (W/W) : 3.59 (4.48-3.50) W/W
- Voltage (V) : 220-240 V
- Current (A) : 8.5-7.9 A
- Power Input (min-max) (W) : 1,840 (250-2,050) W
- Moisture Removal (L/h) : 3.7 L/h
- Moisture Removal (Pt/h) : 7.8 Pt/h
- Indoor Unit Air Circulation : 19.2 m³/min (680 ft³/min)
- Indoor Unit Noise Level (H / L / Q-Lo) : 45/34/28 dB(A)
- Indoor Unit Installed Condition - Unit Dimensions (H x W x D) (mm) : 295 mm x 1,040 mm x 244 mm
- Indoor Unit Installed Condition - Unit Dimensions (H x W x D) (inch) : 11-5/8 inch x 40-31/32 inch x 9-5/8 inch
- Indoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (mm) : 314 mm x 1,148 mm x 383 mm
- Indoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (inch) : 12-3/8 inch x 45-7/32 inch x 15-3/32 inch
- Indoor Unit Net Weight : 12 kg (26 lb)
- Outdoor Unit Air Circulation : 34.9 m³/min (1,230 ft³/min)
- Outdoor Unit Noise Level (H) : 51 dB(A)
- Outdoor Unit Installed Condition - Unit Dimensions (H x W x D) (mm) : 619 mm x 824 mm x 299 mm
- Outdoor Unit Installed Condition - Unit Dimensions (H x W x D) (inch) : 24-3/8 inch x 32-15/32 inch x 11-25/32 inch
- Outdoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (mm) : 684 mm x 967 mm x 425 mm
- Outdoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (inch) : 26-15/16 inch x 38-3/32 inch x 16-3/4 inch
- Outdoor Unit Net Weight : 31 kg (68 lb)
- Refrigerant Pipe Diameter (Liquid Side) : ø 6.35 mm (1/4 inch)
- Refrigerant Pipe Diameter (Gas Side) : ø 12.70 mm (1/2 inch)
- Pipe Extension (Chargeless Pipe Length) : 10 m
- Pipe Extension (Maximum Pipe Length) : 30 m
- Pipe Extension (Maximum Elevation Length) : 20 m
- Pipe Extension (Additional Refrigerant Gas*) : 15 g/m
- Power Supply : Indoor
- nanoe™ X : Yes (Generator Mark 3)
- Wi-Fi : Built-in
- 24-Hour Dual ON & OFF Real Setting Timer : Yes
- LCD Wireless Remote Control : Yes
- Wired Remote Control : Optional
- iAUTO-X : Yes
- Humidity Sensor : Yes
- Sleep Mode : Yes
- Quiet Mode : Yes
- Soft Dry Operation Mode : Yes
- Personal Airflow Creation : Yes
- Inverter Control : Yes
- Refrigerant Type : R32
- ECO Mode with A.I. : Yes
- Random Auto Restart : Yes (32 Restart Patterns)
- Blue Fin Condenser : Yes
- Long Piping (maximum pipe length) : 30 m
- Top Panel Maintenance Access : Yes
- Self-Diagnostic Function : Yes
- Warranty : 3 Years
