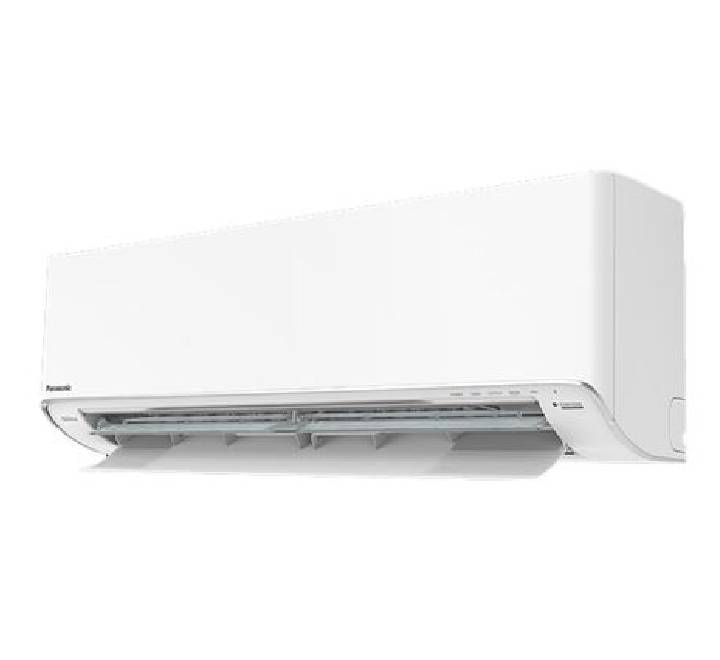

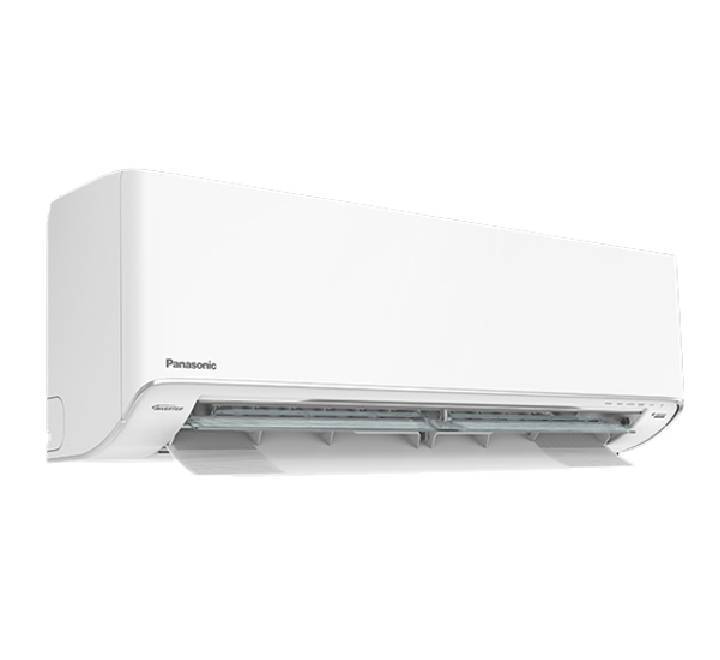

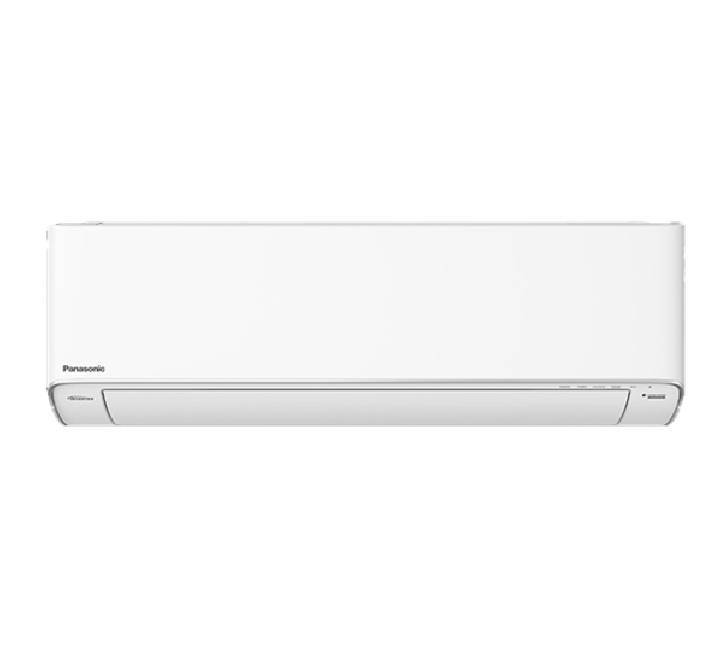

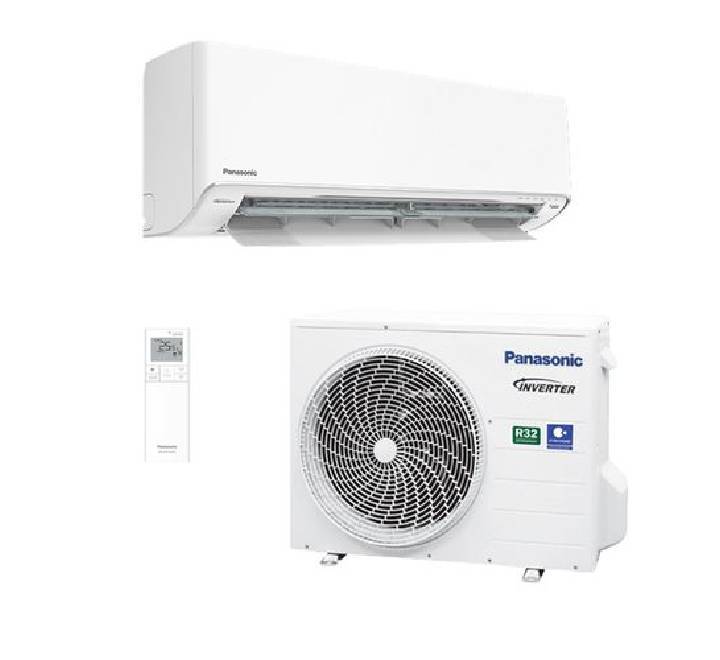

Panasonic CS/CU-XU10AKH 1.0HP X-Premium Inverter Air Conditioner
- Brand : Panasonic
- Model No : CS/CU-XU10AKH
- Cooling Capacity (min-max) (kW) : 2.85 (0.92-3.40) kW
- Cooling Capacity (min-max) (Btu/h) : 9,720 (3,140-11,600) Btu/h
- EER (min-max) (Btu/hW) : 13.32 (13.96-11.26) Btu/hW
- EER (min-max) (W/W) : 3.90 (4.09-3.30) W/W
- Voltage (V) : 220-240 V
- Current (A) : 3.6-3.3 A
- Power Input (min-max) (W) : 730 (225-1,030) W
- Moisture Removal (L/h) : 1.7 L/h
- Moisture Removal (Pt/h) : 3.6 Pt/h
- Indoor Unit Air Circulation : 11.1 m³/min (390 ft³/min)
- Indoor Unit Noise Level (H / L / Q-Lo) : 36/26/19 dB(A)
- Indoor Unit Installed Condition - Unit Dimensions (H x W x D) (mm) : 295 mm x 870 mm x 229 mm
- Indoor Unit Installed Condition - Unit Dimensions (H x W x D) (inch) : 11-5/8 inch x 34-9/32 inch x 9-1/32 inch
- Indoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (mm) : 283 mm x 952 mm x 374 mm
- Indoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (inch) : 11-5/32 inch x 37-1/2 inch x 14-3/4 inch
- Indoor Unit Net Weight : 10 kg (22 lb)
- Outdoor Unit Air Circulation : 27.6 m³/min (970 ft³/min)
- Outdoor Unit Noise Level (H) : 47 dB(A)
- Outdoor Unit Installed Condition - Unit Dimensions (H x W x D) (mm) : 511 mm x 650 mm x 230 mm
- Outdoor Unit Installed Condition - Unit Dimensions (H x W x D) (inch) : 20-1/8 inch x 25-19/32 inch x 9-1/16 inch
- Outdoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (mm) : 582 mm x 793 mm x 356 mm
- Outdoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (inch) : 22-15/16 inch x 31-1/4 inch x 14-1/32 inch
- Outdoor Unit Net Weight : 18 kg (40 lb)
- Refrigerant Pipe Diameter (Liquid Side) : ø 6.35 mm (1/4 inch)
- Refrigerant Pipe Diameter (Gas Side) : ø 9.52 mm (3/8 inch)
- Pipe Extension (Chargeless Pipe Length) : 7.5 m
- Pipe Extension (Maximum Pipe Length) : 20 m
- Pipe Extension (Maximum Elevation Length) : 15 m
- Pipe Extension (Additional Refrigerant Gas*) : 10 g/m
- Power Supply : Indoor
- nanoe™ X : Yes (Generator Mark 3)
- Wi-Fi : Built-in
- 24-Hour Dual ON & OFF Real Setting Timer : Yes
- LCD Wireless Remote Control : Yes
- Wired Remote Control : Optional
- iAUTO-X : Yes
- Humidity Sensor : Yes
- Sleep Mode : Yes
- Quiet Mode : Yes
- Soft Dry Operation Mode : Yes
- Personal Airflow Creation : Yes
- Inverter Control : Yes
- Refrigerant Type : R32
- ECO Mode with A.I. : Yes
- Random Auto Restart : Yes (32 Restart Patterns)
- Blue Fin Condenser : Yes
- Long Piping (maximum pipe length) : 20 m
- Top Panel Maintenance Access : Yes
- Self-Diagnostic Function : Yes
- Warranty : 3 Years
