Description

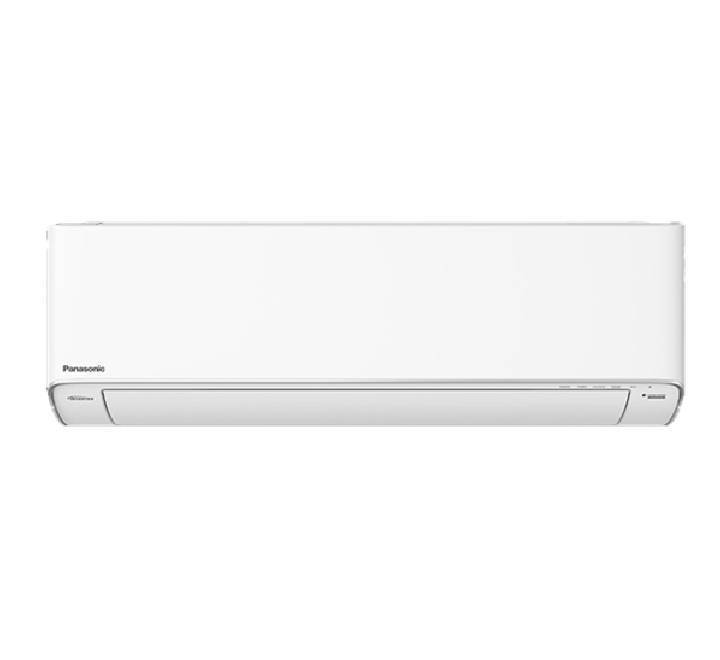

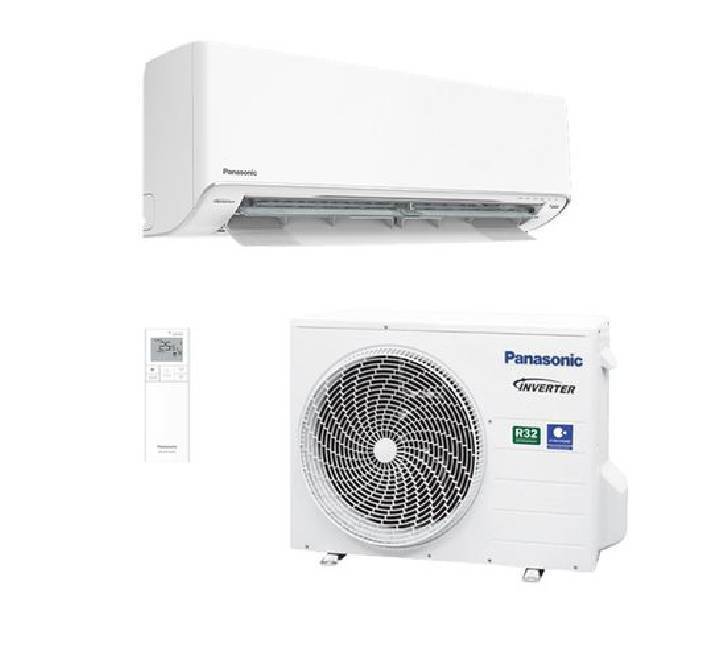

Panasonic CS/CU-U28AKH 3.0HP Premium Inverter Air Conditioner
- Brand : Panasonic
- Model No : CS/CU-U28AKH
- Cooling Capacity (min-max) (kW) : 7.10 (1.25-8.50) kW
- Cooling Capacity (min-max) (Btu/h) : 24,200 (4,260-29,000) Btu/h
- EER (min-max) (Btu/hW) : 12.10 (12.17-10.74) Btu/hW
- EER (min-max) (W/W) : 3.55 (3.57-3.15) W/W
- Voltage (V) : 220-240 V
- Current (A) : 9.3-8.5 A
- Power Input (min-max) (W) : 2000 (350-2700) W
- Moisture Removal (L/h) : 4.1 L/h
- Moisture Removal (Pt/h) : 8.7 Pt/h
- Indoor Unit Air Circulation : 20.8 m³/min (735 ft³/min)
- Indoor Unit Noise Level (H / L / Q-Lo) : 47/37/34 dB(A)
- Indoor Unit Installed Condition - Unit Dimensions (H x W x D) (mm) : 295 mm x 1,040 mm x 244 mm
- Indoor Unit Installed Condition - Unit Dimensions (H x W x D) (inch) : 11-5/8 inch x 40-31/32 inch x 9-5/8 inch
- Indoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (mm) : 314 mm x 1,148 mm x 383 mm
- Indoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (inch) : 12-3/8 inch x 45-7/32 inch x 15-3/32 inch
- Indoor Unit Net Weight : 14 kg (31 lb)
- Outdoor Unit Air Circulation : 45.9 m³/min (1620 ft³/min)
- Outdoor Unit Noise Level (H) : 53 dB(A)
- Outdoor Unit Installed Condition - Unit Dimensions (H x W x D) (mm) : 695 mm x 875 mm x 320 mm
- Outdoor Unit Installed Condition - Unit Dimensions (H x W x D) (inch) : 27-3/8 inch x 34-15/32 inch x 12-5/8 inch
- Outdoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (mm) : 761 mm x 1049 mm x 460 mm
- Outdoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (inch) : 29-31/32 inch x 41-5/16 inch x 18-1/8 inch
- Outdoor Unit Net Weight : 43 kg (95 lb)
- Refrigerant Pipe Diameter (Liquid Side) : ø 6.35 mm (1/4 inch)
- Refrigerant Pipe Diameter (Gas Side) : ø15.88 mm (5/8 inch)
- Pipe Extension (Chargeless Pipe Length) : 10 m
- Pipe Extension (Maximum Pipe Length) : 30 m
- Pipe Extension (Maximum Elevation Length) : 20 m
- Pipe Extension (Additional Refrigerant Gas*) : 25 g/m
- Power Supply : Indoor
- nanoe™ X : Yes (Generator Mark 2)
- 24-Hour Dual ON & OFF Real Setting Timer : Yes
- LCD Wireless Remote Control : Yes
- Wired Remote Control : Optional
- iAUTO-X : Yes
- Humidity Sensor : Yes
- Sleep Mode : Yes
- Quiet Mode : Yes
- Soft Dry Operation Mode : Yes
- Personal Airflow Creation : Yes
- Inverter Control : Yes
- Refrigerant Type : R32
- ECO Mode with A.I. : Yes
- Random Auto Restart : Yes (32 Restart Patterns)
- Blue Fin Condenser : Yes
- Long Piping (maximum pipe length) : 30 m
- Top Panel Maintenance Access : Yes
- Self-Diagnostic Function : Yes
- Warranty : 3 Years
