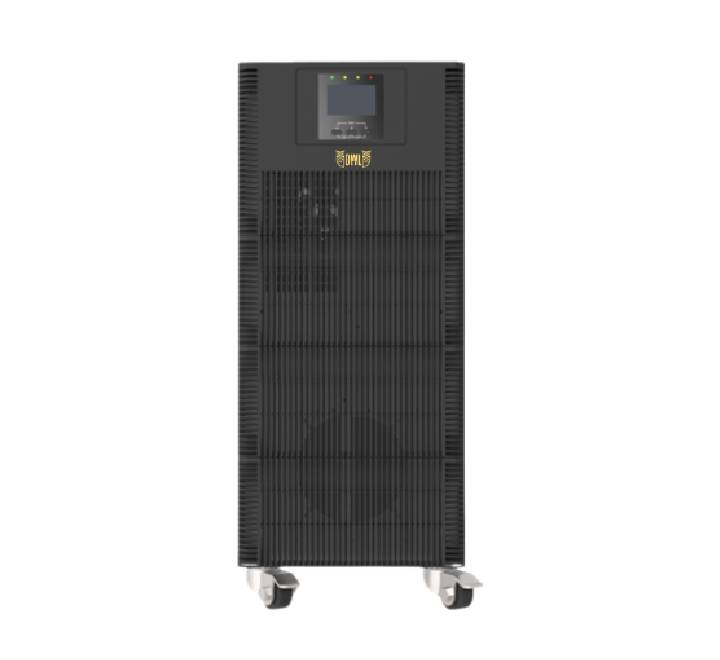

OWL T10K Tower-Type High Frequency Online UPS

Protect your enterprise-level data architecture and high-capacity system setups from power disruption with the industrial-grade OWL T10K Tower-Type High Frequency Online UPS. Boasting a massive 10kVA / 9000W capability baseline, this high-performance uninterruptible power supply relies on true double-conversion technology to deliver pristine, uninterrupted electrical feeds. It functions as an impenetrable shield against blackouts, sags, spikes, and frequency variations—making it the essential deployment standard for entire corporate network backbones, medical systems, and intensive cloud-computing server banks.

Key Features & Benefits

• True Online Double-Conversion Topology: Constantly filters utility grid power by changing AC to DC and back to high-grade AC. This isolates your sensitive systems 100% from underlying harmonic distortions and power line noise.
• Absolute Zero-Millisecond (0ms) Transfer Time: Eliminates switching lag entirely when switching from grid line power to internal battery reserves, keeping core switches and storage frames completely stable without reboots.
• High-Output 10,000VA / 9000W Power Scale: Features a high 0.9 output power factor, translating more incoming electricity into pure, usable power capacity to smoothly run multiple high-density blade servers and infrastructure configurations.
• Advanced Micro-Processor Controlled DSP: Utilizes sophisticated Digital Signal Processing (DSP) technology to deliver precise voltage regulations, comprehensive real-time self-diagnostics, and automated fault protection mechanisms.
• Eco-Efficiency (ECO) Power Savings: Offers an adjustable intelligent ECO mode that dials up system efficiency to over 98% during periods of clean utility line stability, lowering heat output and reducing ongoing energy overhead.
• Extended Charging Flexibility: Integrates a high-power digital charger configuration (adjustable from 1A to 12A) designed to shorten battery replenishment cycles and scale up safely to support larger external battery configurations.
• Smart Communications & Expandability: Offers deep monitoring out-of-the-box via native RS232 and USB communication ports, alongside an advanced built-in intelligent slot that accepts custom SNMP, Modbus, or AS400 dry contact cards for remote network control.
• True online double-conversion technology
  Output power factor is 1, kVA/kW
  Digital charging design, Adjustable from 1 to 12A
  High efficiency, AC to AC 95%
  Auto fan speed adjustment
  Wide input voltage range, 110Vac to 300Vac
  Emergency power off function (EPO)
  Generator compatible
  LCD display & LED indicator
  Battery cold start
  Smart RS232/USB port with monitoring software (optional)
  ECO mode operation for energy saving (ECO)
  Intelligent slot, support optional SNMP / RS485 / AS401 card
  DSP (Digital Signal Processing) technology guarantees high performance
  Advanced PFC (Power Factor Correction) technology, input PF>99%

• Input
  RatedVoltage: 208/220/230/240Vac,L+N+PE
  VoltageRange: 110~300Vac
  FrequencyRange: 50/60±6Hz
  PowerFactor: ≥0.99
  THDi: ≤5%(linear load);≤8%(non-linear load)

• Output
  RatedVoltage: 208/220/230/240Vac,L+N+PE
  Voltage Regulation: ±1%
  Frequency: 50/60Hz±0.1%

• Efficiency
  Line Mode: 95%
  Battery Mode: 94.5%
  ECO Mode: 98%

• Battery
  Type: Sealed lead acid maintenance free
  NominalVoltage: 192Vdc
  BatteryNumber: 12V9Ah*16pcs
  ChargeCurrent: 1A(1-12A)
  Charging Mode: Two/Three-period charging

• Enviroment
  Operation Temperature: 0~40℃
  Relative Humidity: 0~95%(non-condensing)
  Noise: ≤50dB@1meter away
  Altitude: Up to 1000m without derating

• Physical
  Dimensions(W*D*H, mm): 251*524*604
