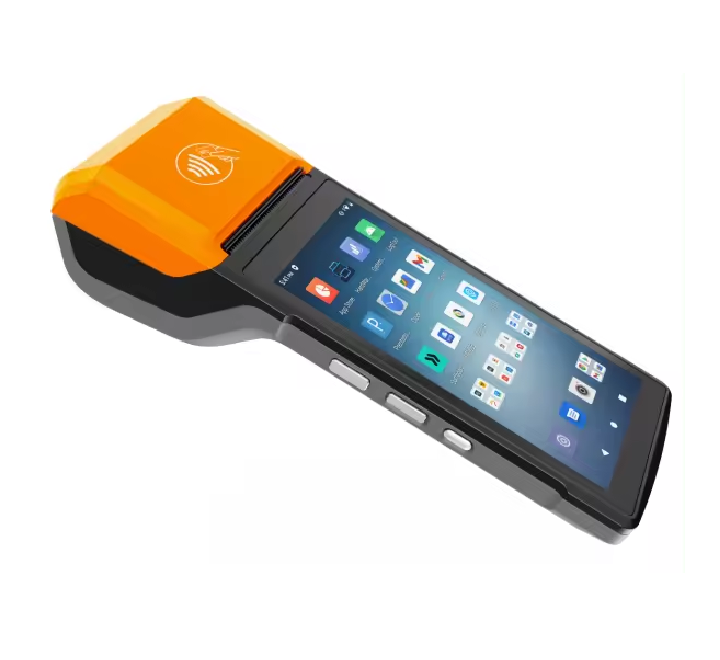

Bring ultimate mobility and seamless efficiency to your business operations with the Nippon AP12S NFC Scanner Handheld Mobile Terminal PDA. Engineered as a powerful, all-in-one portable solution, this intelligent device perfectly combines an Android smart PDA computer, an enterprise-grade NFC contactless scanner, and a rapid built-in 58mm thermal receipt printer. It is the definitive hardware choice for modernizing delivery routes, streamlining table-side hospitality service, managing warehouse inventory, or building out mobile pop-up retail setups.
No more carrying heavy, disjointed setups of scanners, tablets, and belt printers. The rugged, ergonomic Nippon AP12S allows your staff to log inventory data, scan contactless membership cards or cashless mobile apps, process transaction points, and print clean physical customer receipts—all from a single sleek tool that fits securely in the palm of a hand.
Key Features & Capabilities
- All-In-One Enterprise Architecture: Consolidates a modern mobile computing terminal, contact-free NFC card reader, and built-in transactional printer into a single durable housing.
- Integrated 58mm Thermal Printer: Utilizes direct heat-transfer technology to print customer invoices, dining bills, or delivery slips quickly on the spot. No ink ribbons or costly toner refills required.
- High-Frequency Contactless NFC Scanner: Lightning-fast scanning module instantly registers tap-and-go credit applications, digital wallets, store customer loyalty cards, and employee identification credentials.
- Responsive Android Touch Display: Features a vivid, high-resolution capacitive touchscreen for snappy menu navigation, effortlessly running modern cloud-based inventory and POS applications.
- Full-Day Shift Battery Stamina: Packed with a massive integrated rechargeable battery pack designed to easily outlast extended retail shifts, heavy field delivery routes, and off-grid mobile pop-ups.
Technical Specifications
| Specification Category | Product System Details |
|---|---|
| Brand | Nippon |
| Model Number | AP12S |
| Device Type | Handheld Mobile Android Smart POS Terminal / Business PDA |
| Scanner Module | High-Frequency (HF) NFC Contactless Reader |
| Printer Mechanism | Integrated Direct Thermal Receipt Printer (Inkless) |
| Media Capacity | Standard 2-inch / 58mm Wide Thermal Roll Paper |
| Display Panel | Capacitive Multi-Touch Color Screen |
| Wireless Connectivity | Wi-Fi Wireless Networking, Bluetooth Pairing, Cellular Mobile Data Ready |
| Device Color Finish | Ergonomic Dark Gray / Matte Black |
| Power Configuration | High-Output Rechargeable Lithium-Ion Battery Pack |
| Included Accessories | Power Adapter Charger, Interface Connection Cable Kit |
| Hardware Feature | System Specifications |
|---|---|
| Operating System | Android 13.0 (Official Google Services Included) |
| Processor (CPU) | Cortex-A53 Octa-core 2.0 GHz |
| Memory Architecture | 2GB RAM + 16GB ROM |
| Display Panel | 5.5" HD+ IPS Screen (720x1440 resolution, Capacitive Multi-touch) |
| Battery Configuration | Removable Lithium Polymer Battery (7.7V / 3000mAh — equivalent to 3.85V / 6000mAh) |
| Hardware Interfaces | 1x Type-C Port, USB 2.0, Supports On-The-Go (OTG) |
| Audio Systems | Integrated 1W Speaker, On-board Microphone |
| POS Receipt Printer | Built-in 58mm Direct Thermal Printer Mechanism |
| Maximum Print Speed | 80 mm/second |
| Wi-Fi Connectivity | 2.4GHz & 5GHz Dual-band Wi-Fi (Supports IEEE 802.11 a/b/g/n) |
| Bluetooth Version | BT3.0 / 4.2 / 5.3 BLE (Bluetooth Low Energy) |
| Cellular Communication | 4G LTE / 3G / 2G Mobile Data Support |
| Storage Expansion Slot | 1x Micro SD Card Slot (Expandable up to 64GB) |
| Camera System | Rear 5MP Auto-Focus (AF) Camera with LED Flash (Supports 1D/2D scanning) |
| NFC Card Reader | Supports Type A & B, Mifare card, Felica Card (ISO/IEC 14443 & ISO15693 compliant) |
| Dedicated Scan Engine | Newland CM30 Enterprise 1D/2D Barcode Reader Hardware Component |
