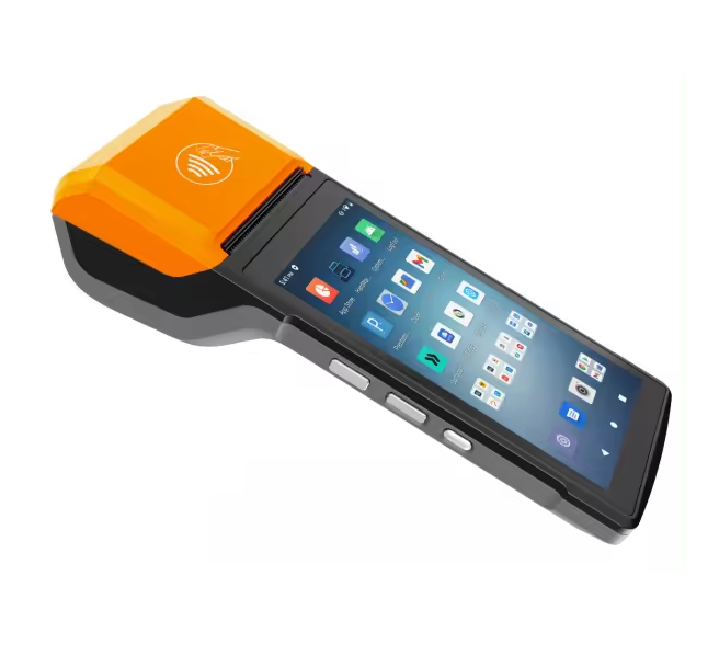

Streamline your mobile transactions with the value-driven Nippon AP12S NFC Only Handheld Mobile Terminal PDA. Tailored for businesses maximizing contactless workflows, this variant channels all the computing power of the AP12S series into a specialized frame optimized for wireless card handling, tap-to-pay apps, and immediate receipts. Running a secure, fully capable Android architecture with integrated Google Play ecosystems, it is the perfect companion tool for food delivery logistics, transit ticketing, line-busting, and pop-up events.
By prioritizing a dedicated multi-protocol NFC chip over an industrial standalone barcode engine, the AP12S NFC Only version manages digital wallets, membership validation, and secure authentication securely at an attractive price point. When inventory scans are necessary, the high-resolution 5MP auto-focus rear camera jumps into action to read 1D and 2D barcodes efficiently through software execution.
Key Features & Functional Benefits
- Targeted NFC Configuration: Fully optimized contactless chip setup built to interpret Type A & B cards, Mifare, and Felica architectures (ISO/IEC 14443 & ISO15693 compliant).
- On-Board 58mm Thermal Printer: Generates crisp paper invoices, dining bills, or confirmation stubs instantly at 80mm/s without the hassle or cost of replacement ink cartridges.
- Google Services & Play Support: Ships with Android 13 featuring full Google Mobile Services (GMS), allowing seamless, native integration with your existing cloud-based POS and management apps.
- Bright 5.5-Inch Touch Display: Navigate complex application layers effortlessly on an elegant HD+ IPS touchscreen panel featuring multi-touch support.
- Dual-Voltage Swap Battery Pack: Equipped with a removable, high-capacity lithium polymer battery architecture designed to effortlessly power heavy shifts across 4G data networks and dual-band Wi-Fi.
Technical Specifications
| Hardware Category | System Technical Specifications |
|---|---|
| Model Variation | AP12S NFC Only |
| Operating System | Android 13.0 (Official Google Services / GMS Included) |
| Processor (CPU) | Cortex-A53 Octa-core 2.0 GHz |
| System Memory | 2GB RAM + 16GB ROM |
| Display Screen | 5.5" HD+ IPS Display (720x1440, Capacitive Multi-touch) |
| Battery Structure | Removable Lithium Polymer (7.7V / 3000mAh — Equivalent to 3.85V / 6000mAh) |
| Interface Ports | 1x Type-C, USB 2.0, Supports On-The-Go (OTG) |
| Audio Components | 1W Internal Speaker, Integrated Microphone |
| POS Receipt Printer | Built-in 58mm Direct Thermal Print Mechanism (Inkless) |
| Printing Speed | 80 mm / second |
| Wireless Local Network | 2.4GHz & 5GHz Dual-band Wi-Fi (IEEE 802.11 a/b/g/n) |
| Bluetooth Mesh | BT 3.0 / 4.2 / 5.3 BLE Configuration |
| Cellular Profiles | 4G LTE / 3G / 2G Mobile Connection Compatibility |
| Expandable Storage | 1x Micro SD Card Slot (Supports expansion up to 64GB) |
| Camera Subsystem | Rear 5MP Auto-Focus (AF) Camera with LED Flash (Supports software-based 1D/2D scanning) |
| NFC Card Capability | Supports Type A & B, Mifare card, Felica Card (ISO/IEC 14443 & ISO15693 compliant) |
