Description

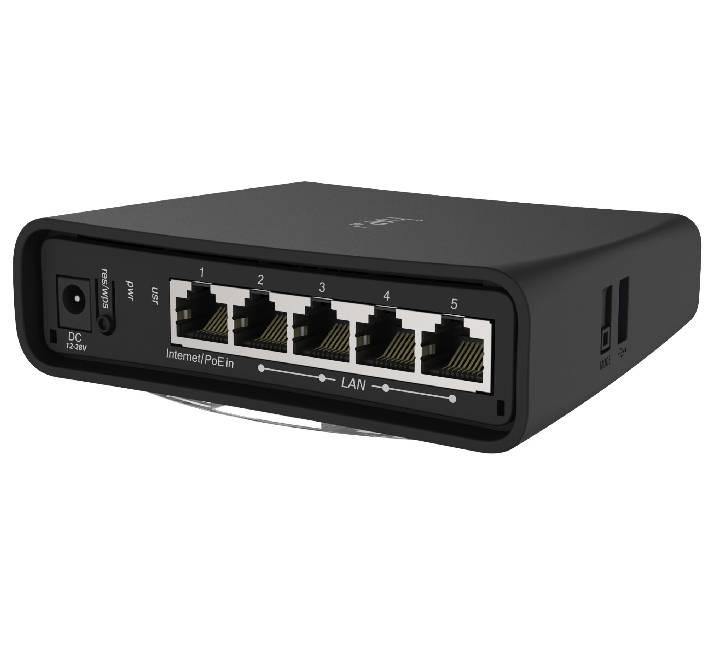

MiKroTik RBD52G-5HacD2HnD-TC 5GHz Ethernet Switch
- Dual-Concurrent 2.4/5GHz AP, 802.11a/b/g/n/ac, Five Gigabit Ethernet ports, USB for 3G/4G support, universal tower case and IPsec hardware encryption support
- The hAP ac² is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4 GHz and 5 GHz frequencies at the same time. Five 10/100/1000 Ethernet ports provide Gigabit connections for your wired devices, USB can be used for external storage or 4G/LTE modem, and device supports IPsec hardware acceleration.
- New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.
- We have two versions available.
- - hAP ac²-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- - hAP ac² (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
- Warranty: 1 Year
Specifications
- Product code RBD52G-5HacD2HnD-TC
- Architecture ARM 32bit
- CPU IPQ-4018
- CPU core count 4
- CPU nominal frequency 716 MHz
- Switch chip model IPQ-4018
- Dimensions 34 x 119 x 98mm
- RouterOS license 4
- Operating System RouterOS
- Size of RAM 128 MB
- Storage size 16 MB
- Storage type FLASH
- MTBF Approximately 100'000 hours at 25C
- Tested ambient temperature -40°C to 50°C
- IPsec hardware acceleration Yes
- Suggested price $79.00
Wireless capabilities
- Wireless 2.4 GHz Max data rate 300 Mbit/s
- Wireless 2.4 GHz number of chains 2
- Wireless 2.4 GHz standards 802.11b/g/n
- Antenna gain dBi for 2.4 GHz 2.5
- Wireless 2.4 GHz chip model IPQ-4018
- Wireless 2.4 GHz generation Wi-Fi 4
- Wireless 5 GHz Max data rate 867 Mbit/s
- Wireless 5 GHz number of chains 2
- Wireless 5 GHz standards 802.11a/n/ac
- Antenna gain dBi for 5 GHz 2.5
- Wireless 5 GHz chip model IPQ-4018
- Wireless 5 GHz generation Wi-Fi 5
- WiFi speed AC1200
Ethernet
- 10/100/1000 Ethernet ports 5
Peripherals
- Number of USB ports 1
- USB Power Reset Yes
- USB slot type USB type A
- Max USB current (A) 1
Powering
- Number of DC inputs 2 (DC jack, PoE-IN)
- DC jack input Voltage 12-30 V
- Max power consumption 21 W
- Max power consumption without attachments 16 W
- Cooling type Passive
- PoE in Passive PoE
- PoE in input Voltage 18-28 V
Certification & Approvals
- Certification CE, FCC, IC, EAC, ROHS
- IP IP20
Other
- Mode button Yes
Wireless specifications
- 2.4 GHz Transmit (dBm) Receive Sensitivity
- 1MBit/s 27 -100
- 11MBit/s 27 -94
- 6MBit/s 27 -96
- 54MBit/s 24 -78
- MCS0 27 -96
- MCS7 23 -73
- 5 GHz Transmit (dBm) Receive Sensitivity
- 6MBit/s 26 -96
- 54MBit/s 22 -80
- MCS0 26 -96
- MCS7 21 -75
